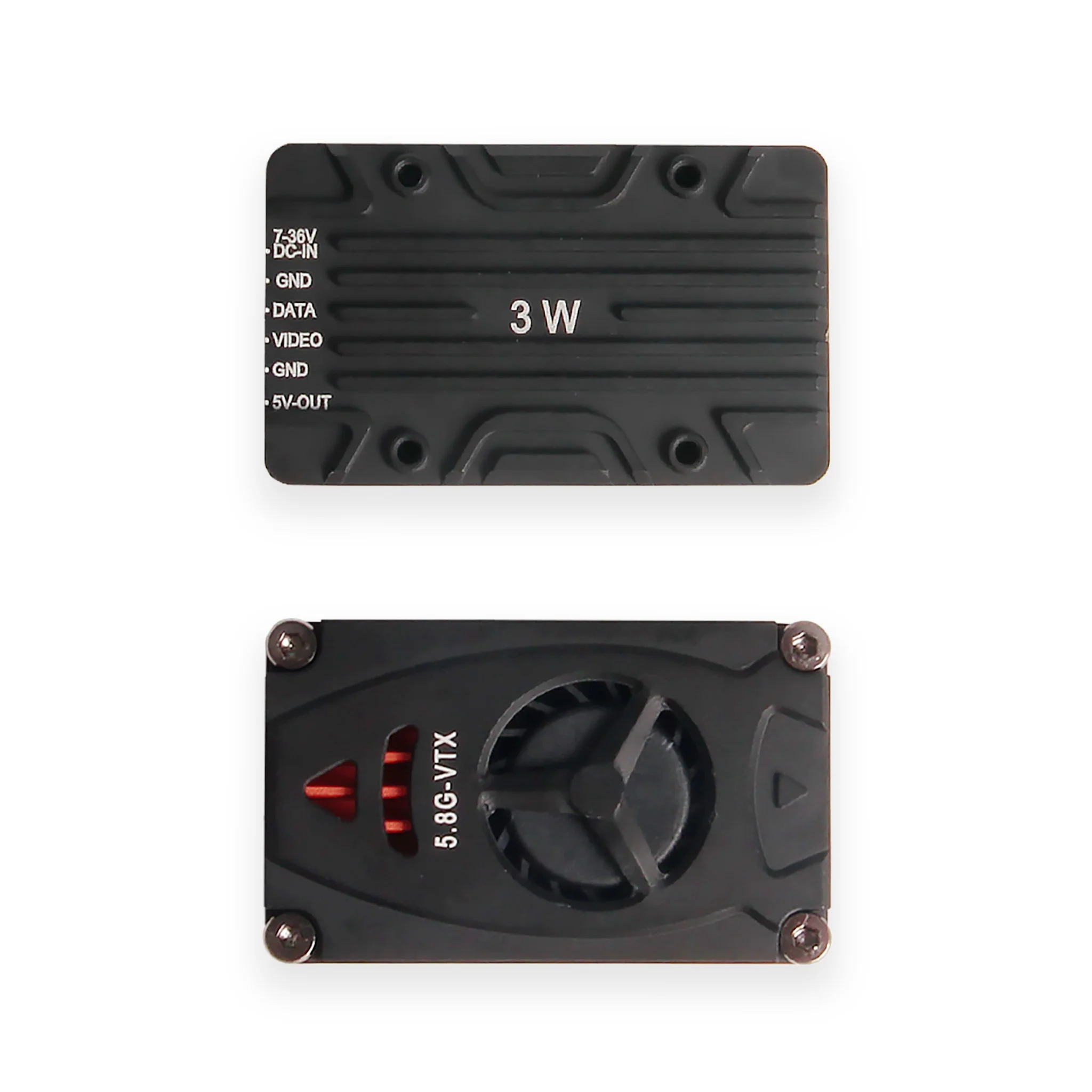

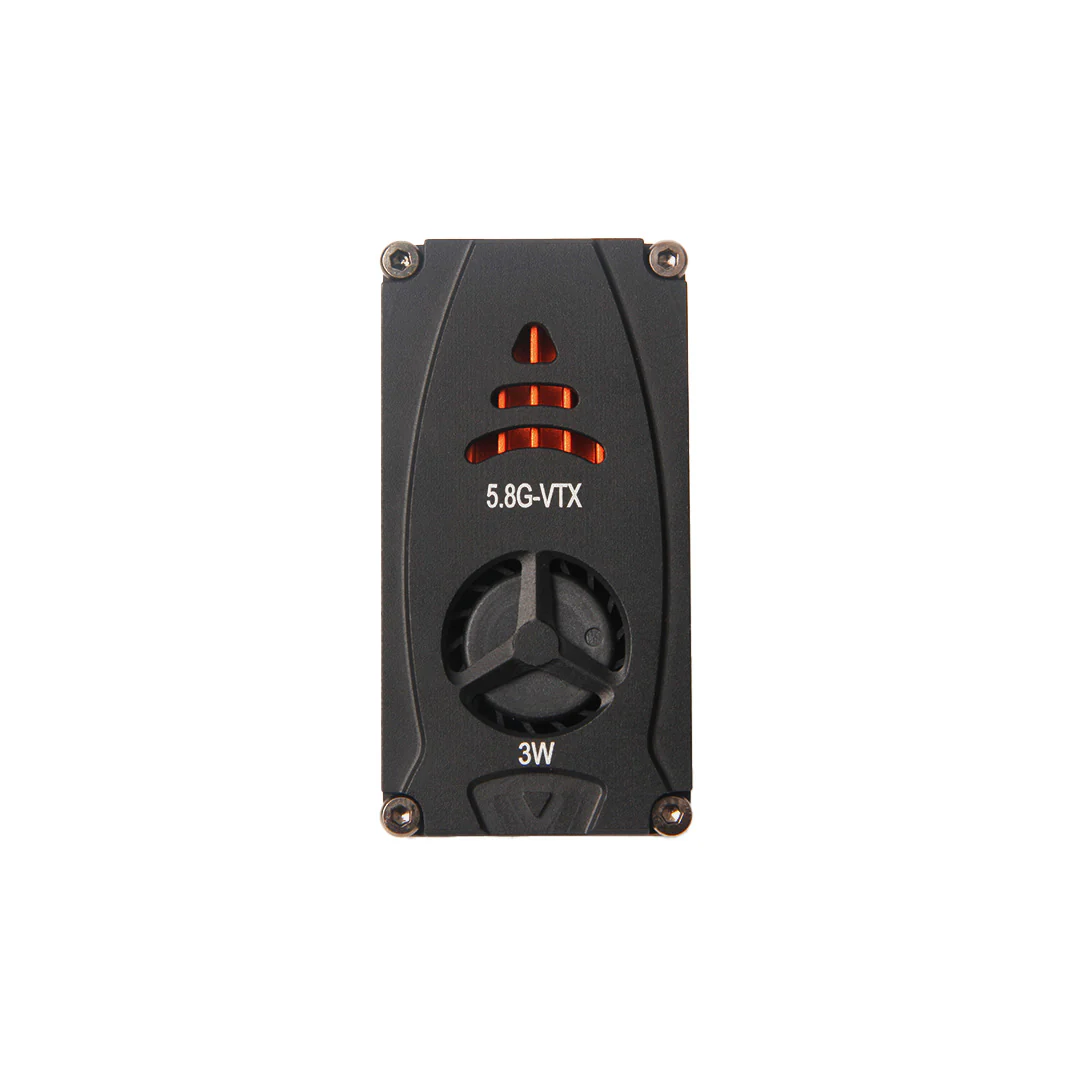

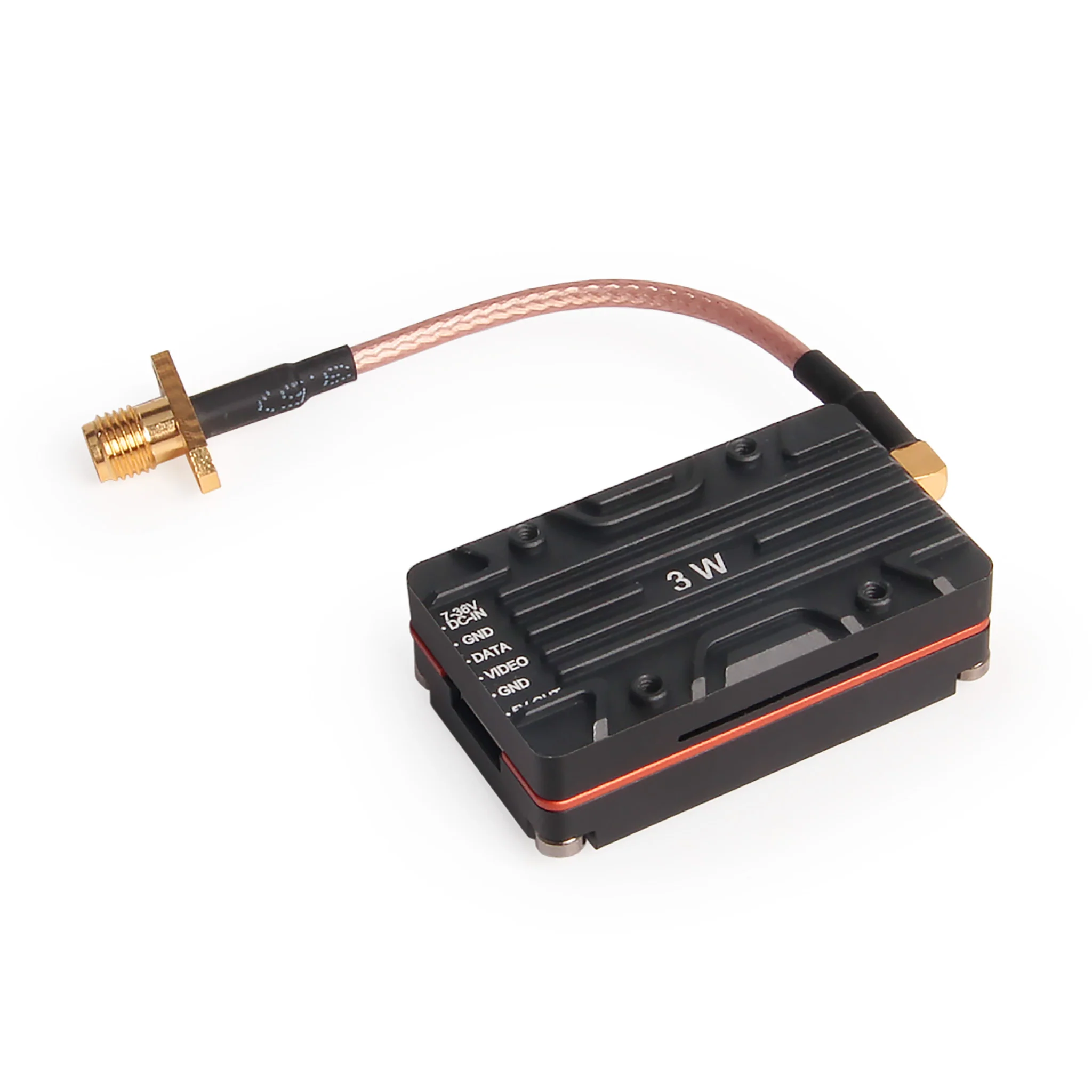

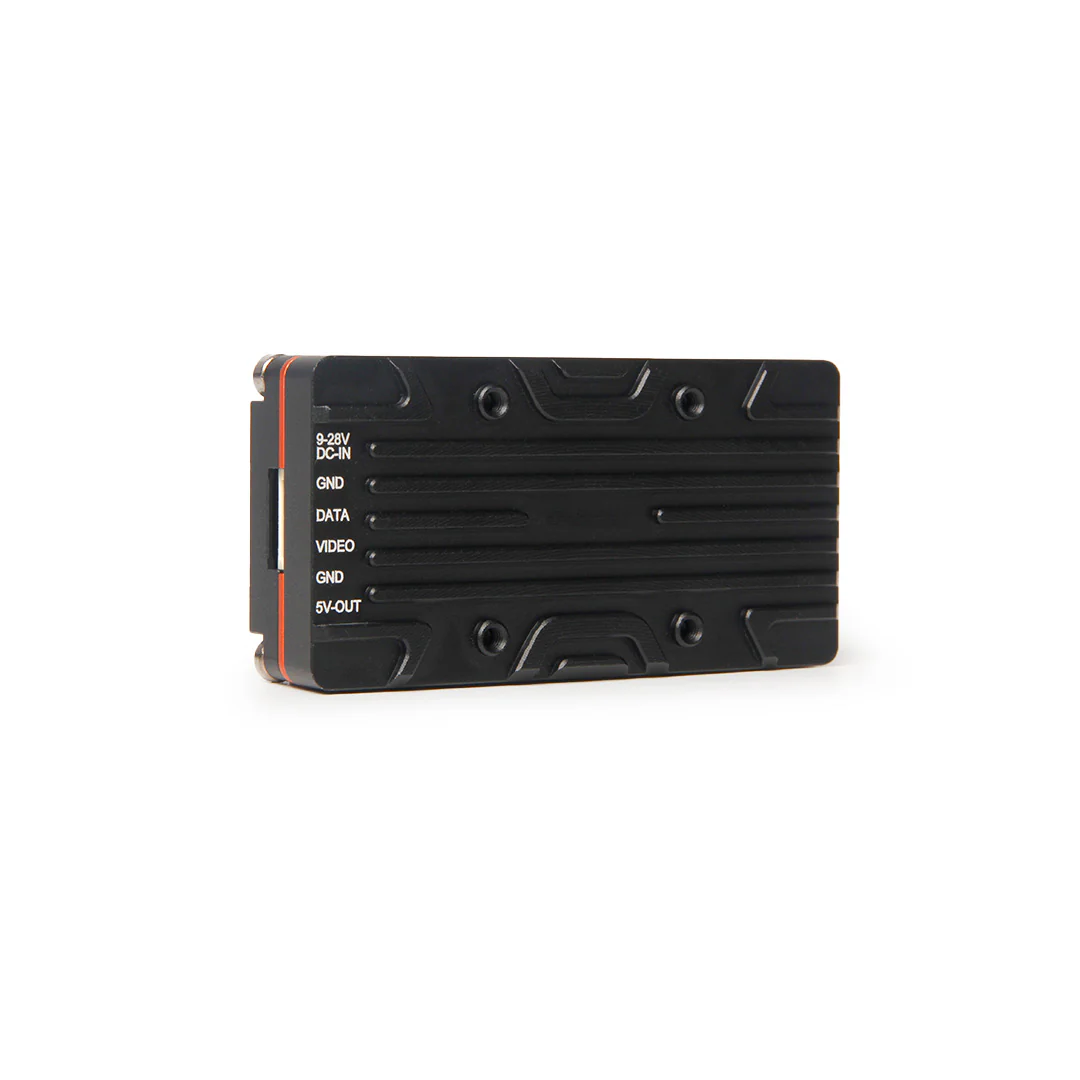

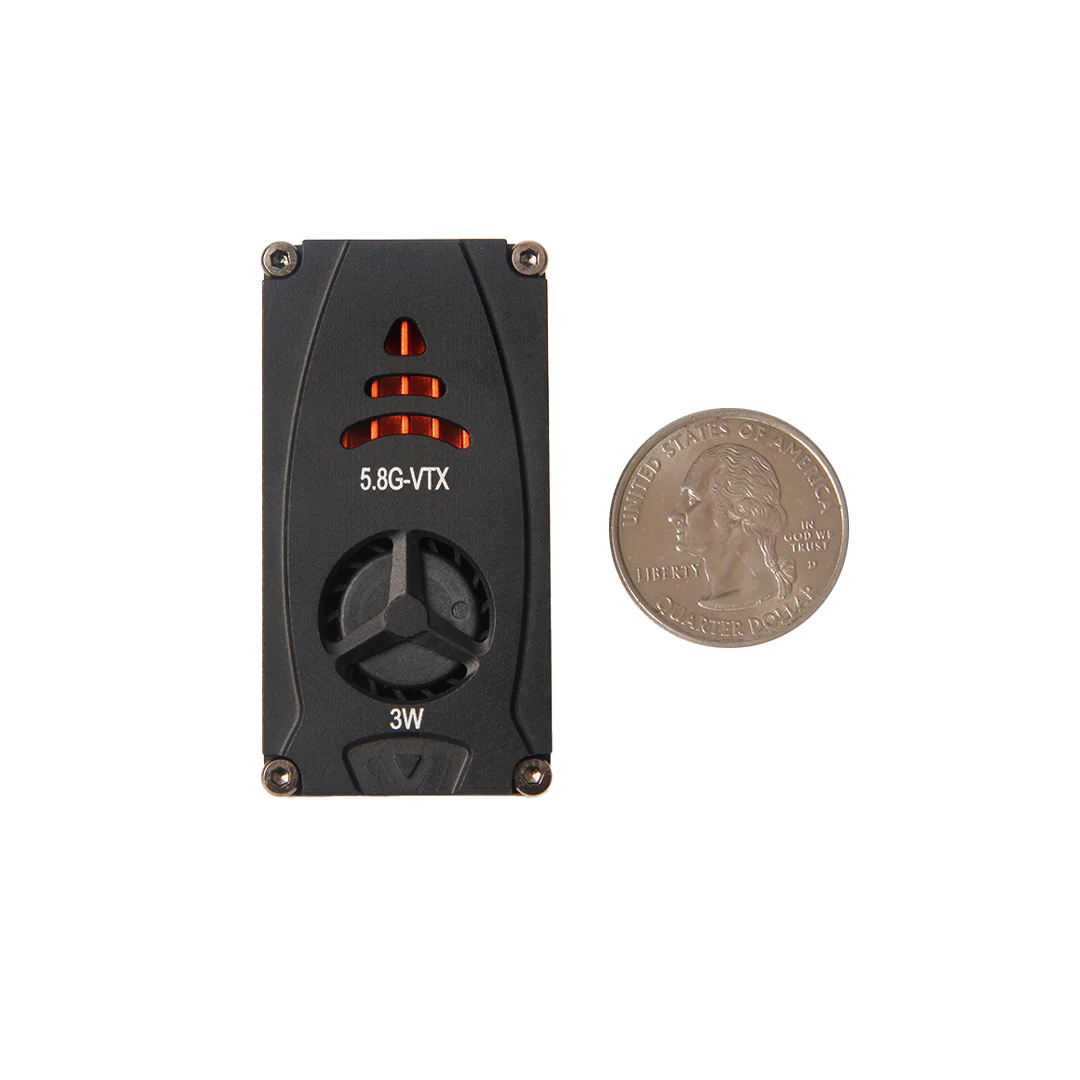

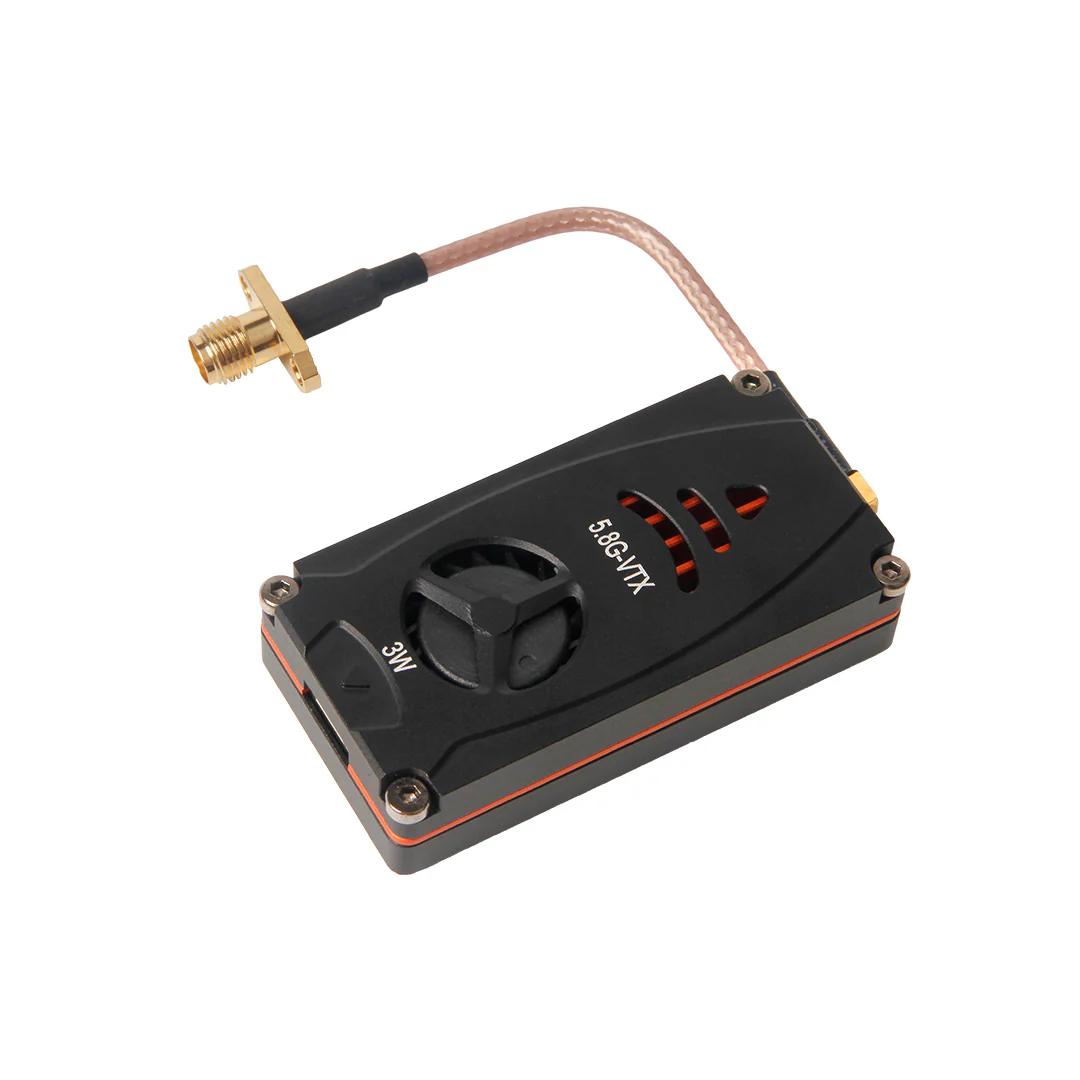

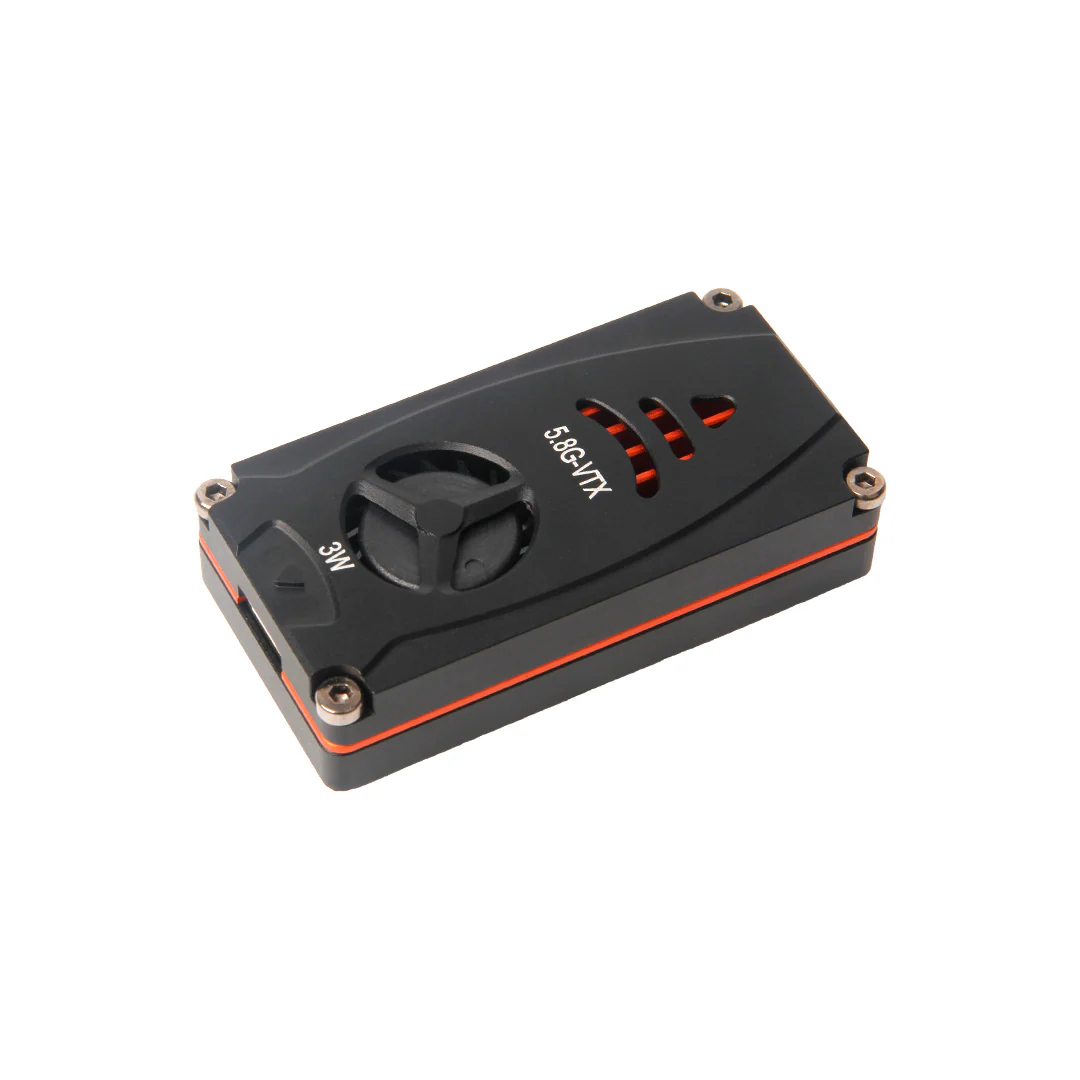

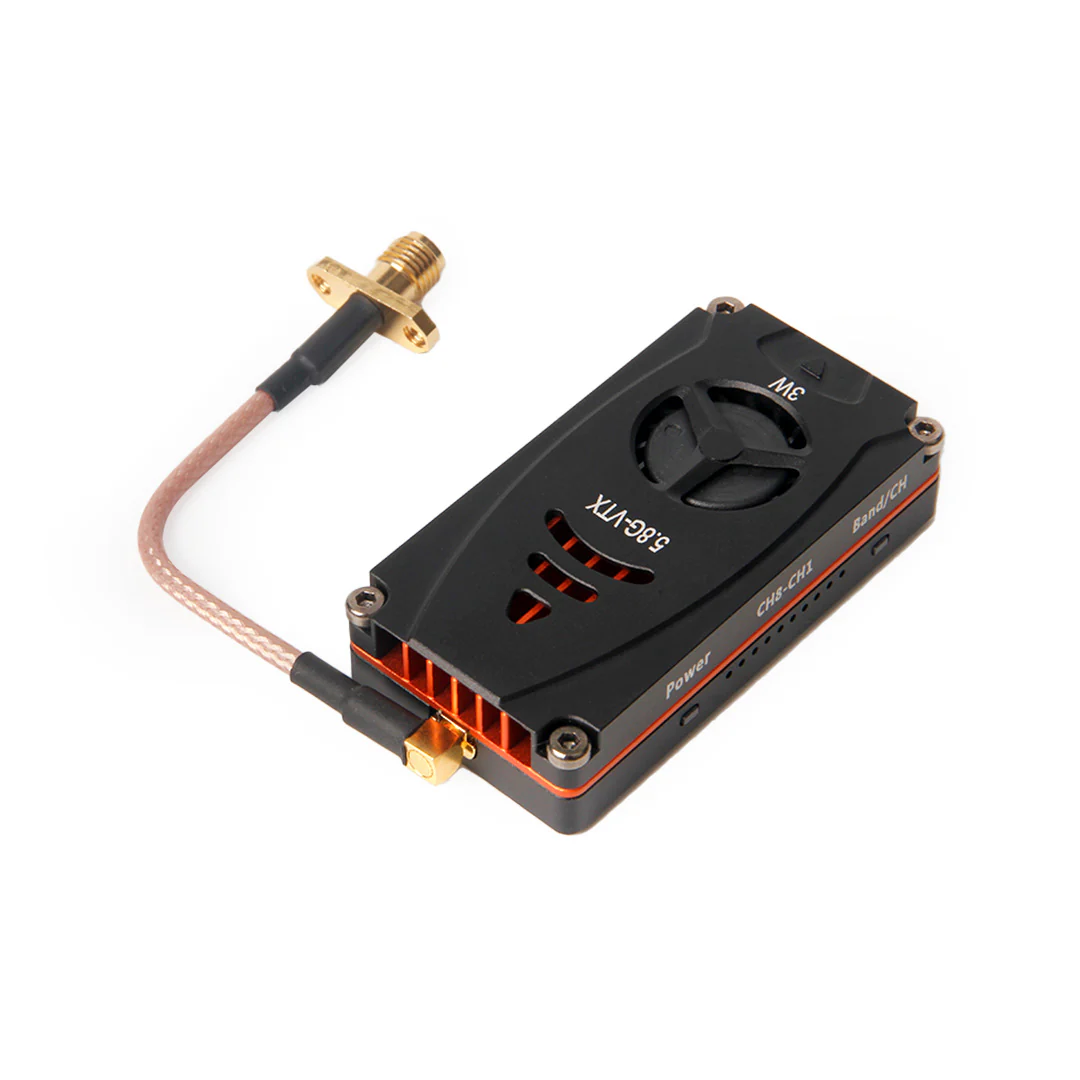

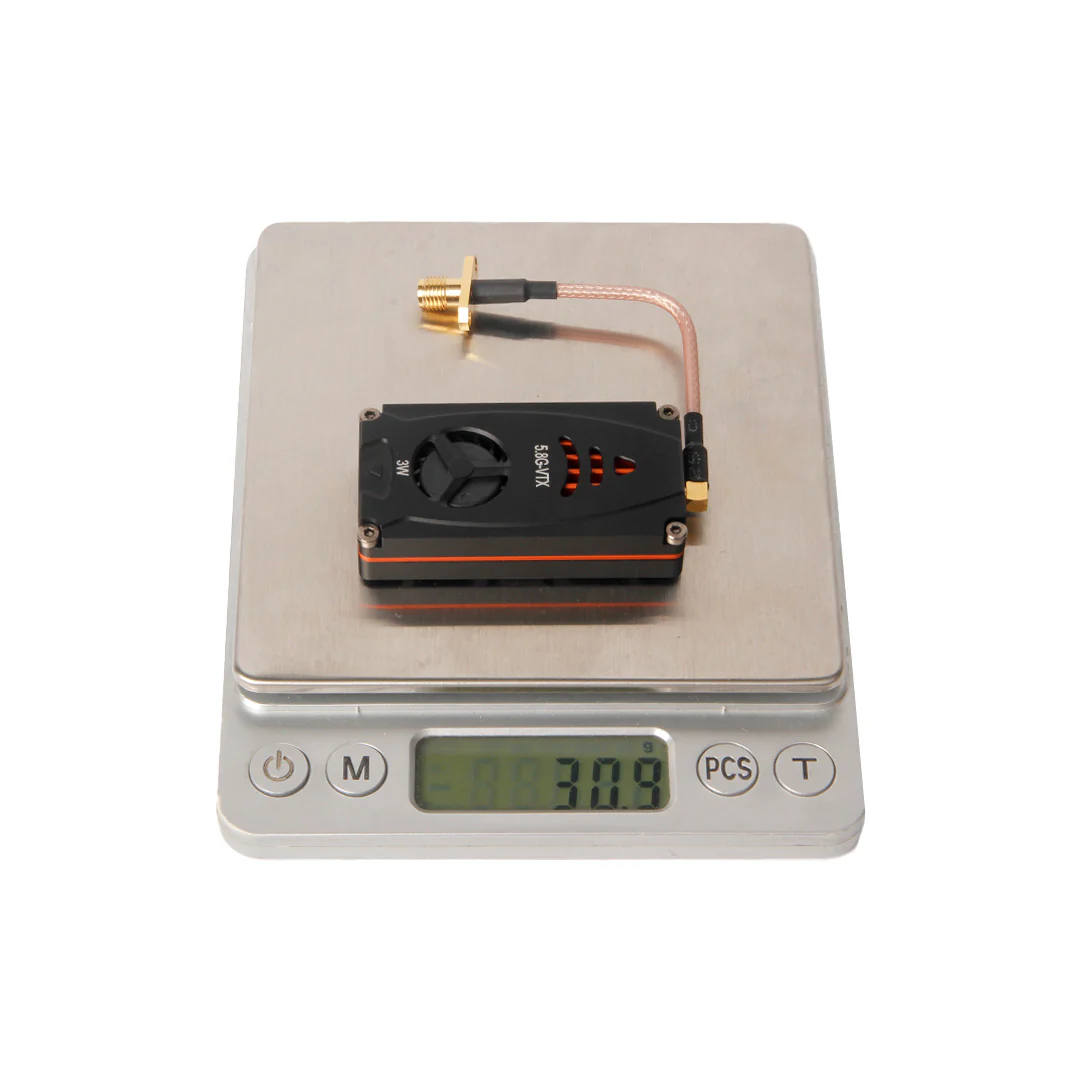

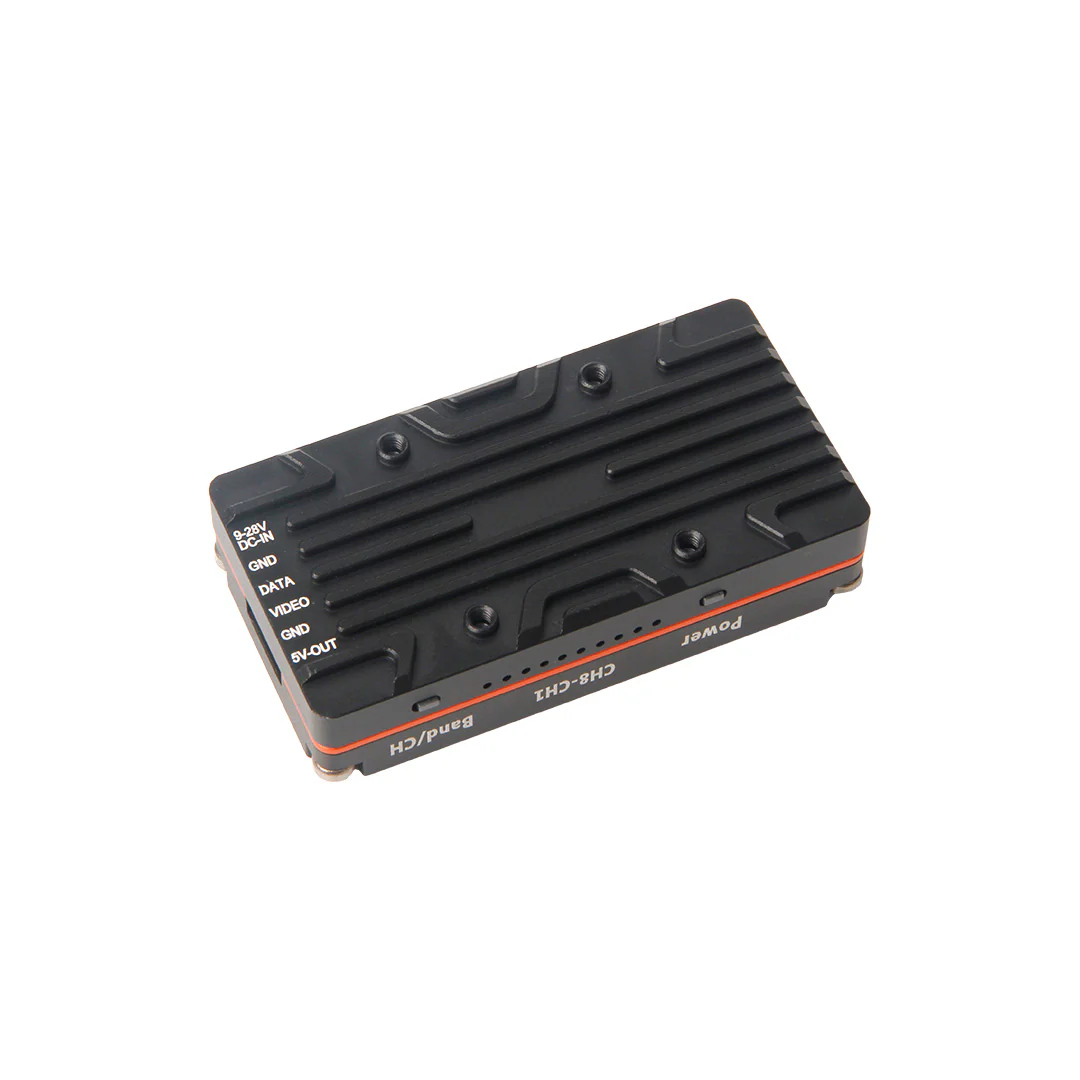

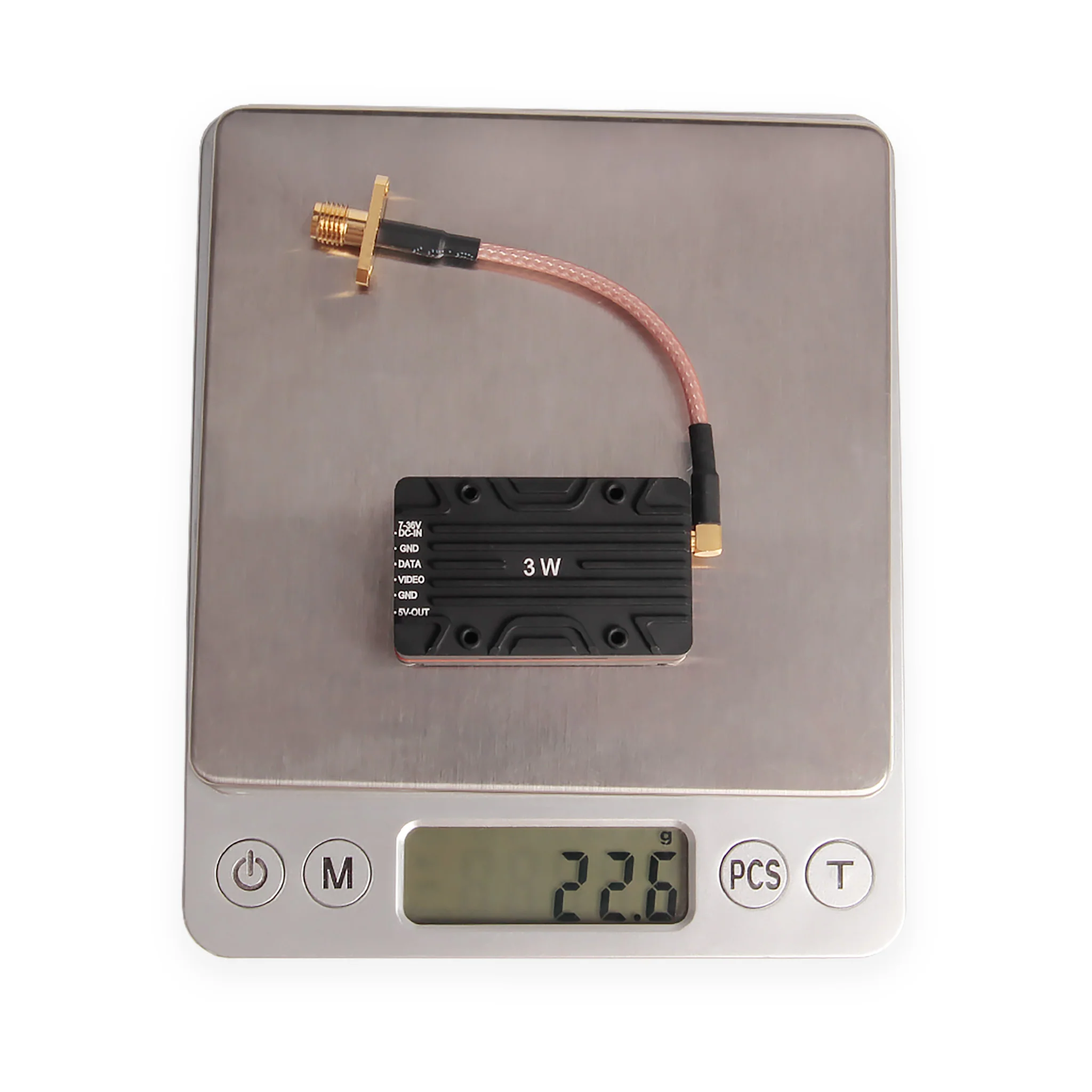

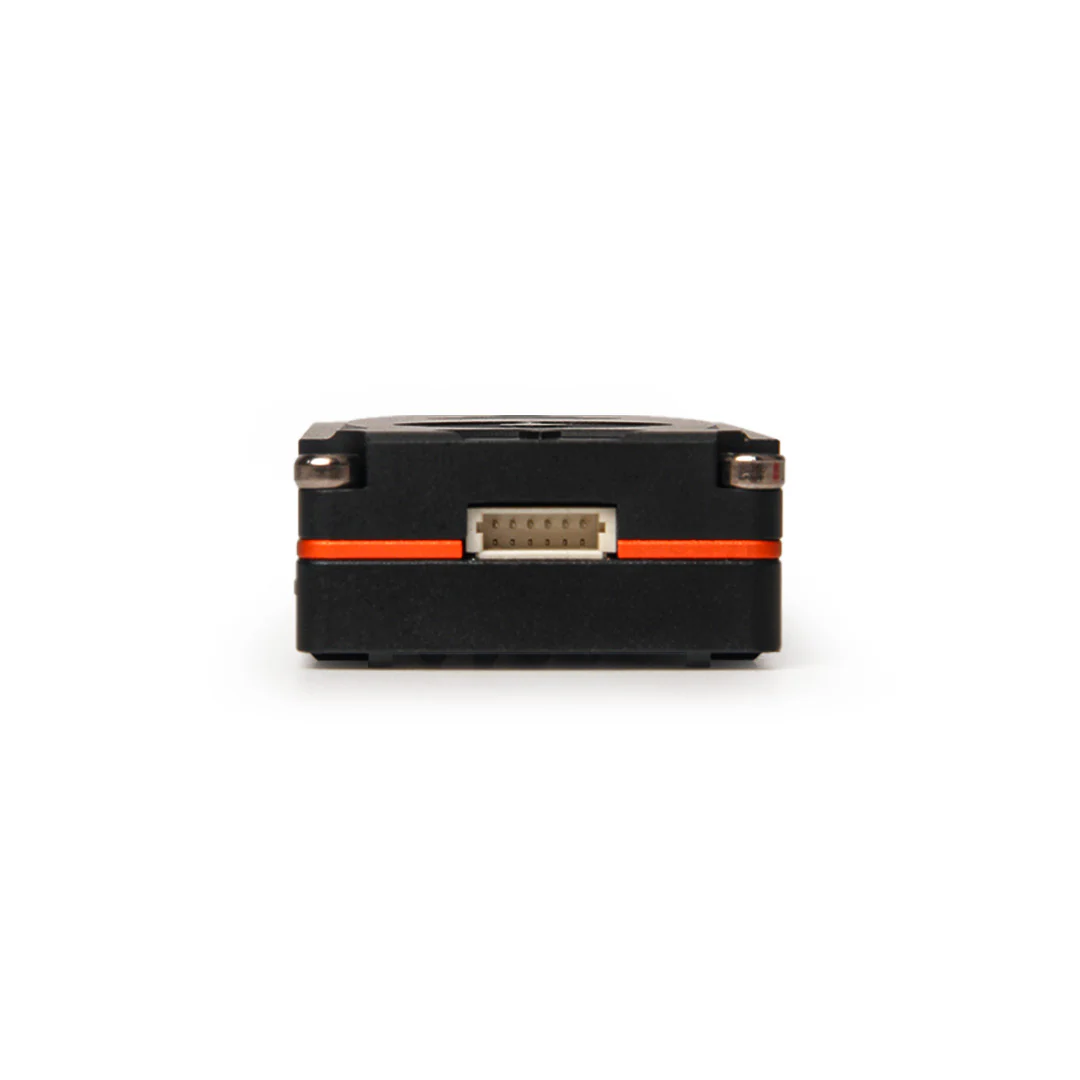

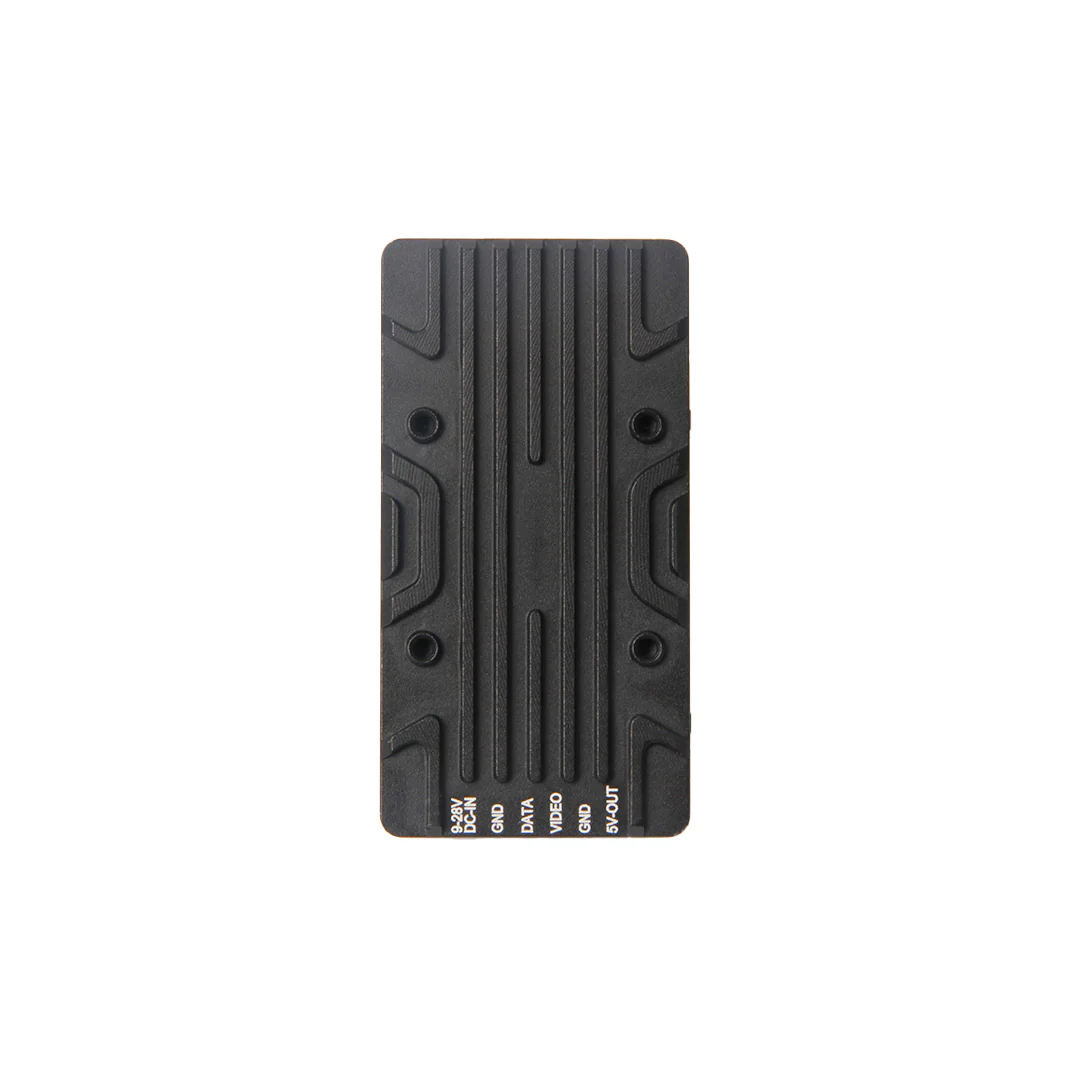

Atlatl HV 5.8G 3W VTx

Specifications

Frequency	5.8G 7 bands: A, B, E, F, R, L, X Transmission Channel: 56
Operating mode	Key button, Smart Audio (Standard), IRC Tramp (Pro)
Transmission power	Switchable: Standard: 25mW,1.6W, 2W, 2.5W, 3W Pro version:25mW, 400mW, 600mW, 1.6W & 3W

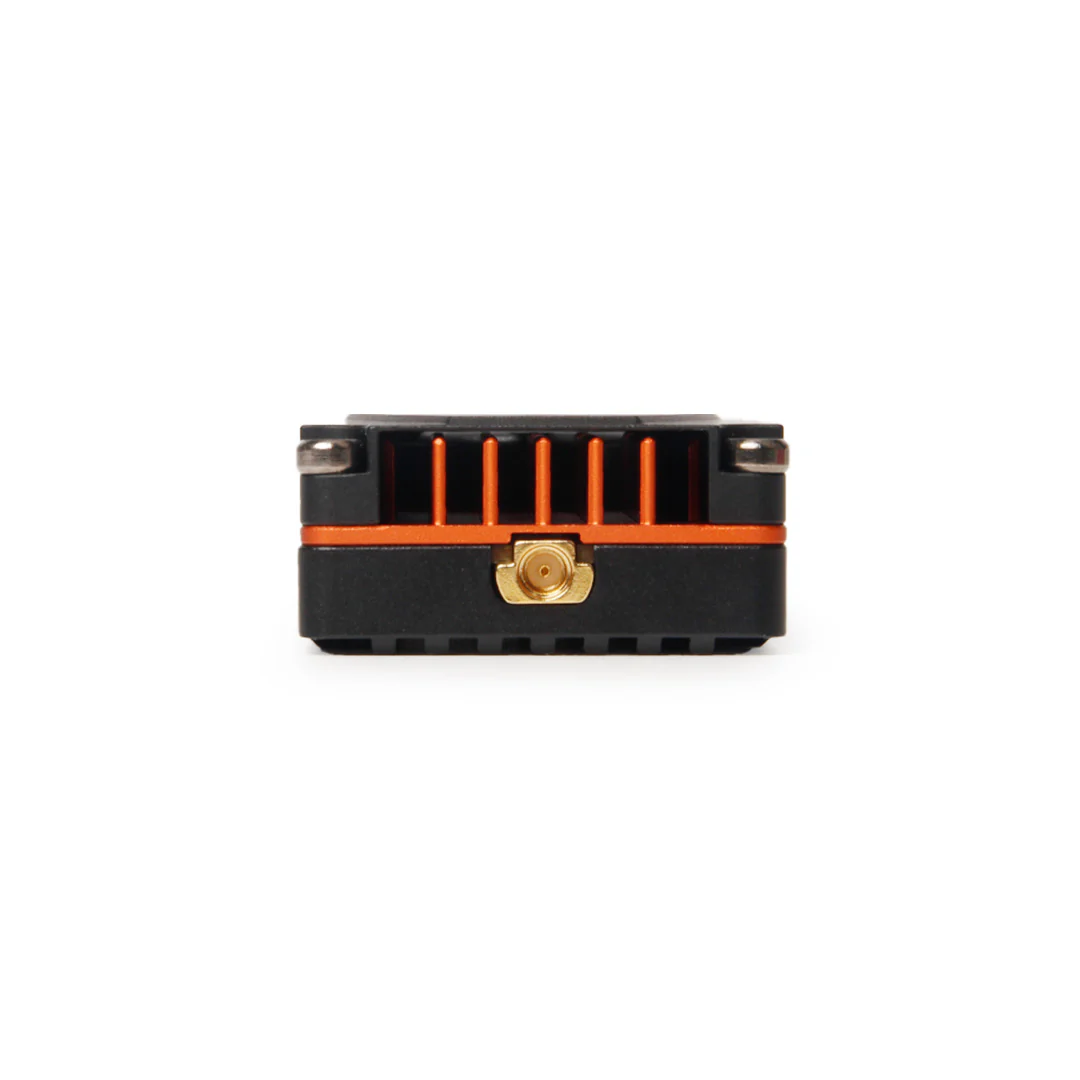

Antenna connector	MMCX
Voltage input	2~6s
Current consumption	1.3A/12VDC @ 3000mW
RF impedance	50Ω
Input video impedance	75Ω
Input video amplitude	CVBS 0.8~1.2VP-P
Video format	NTSC/PAL

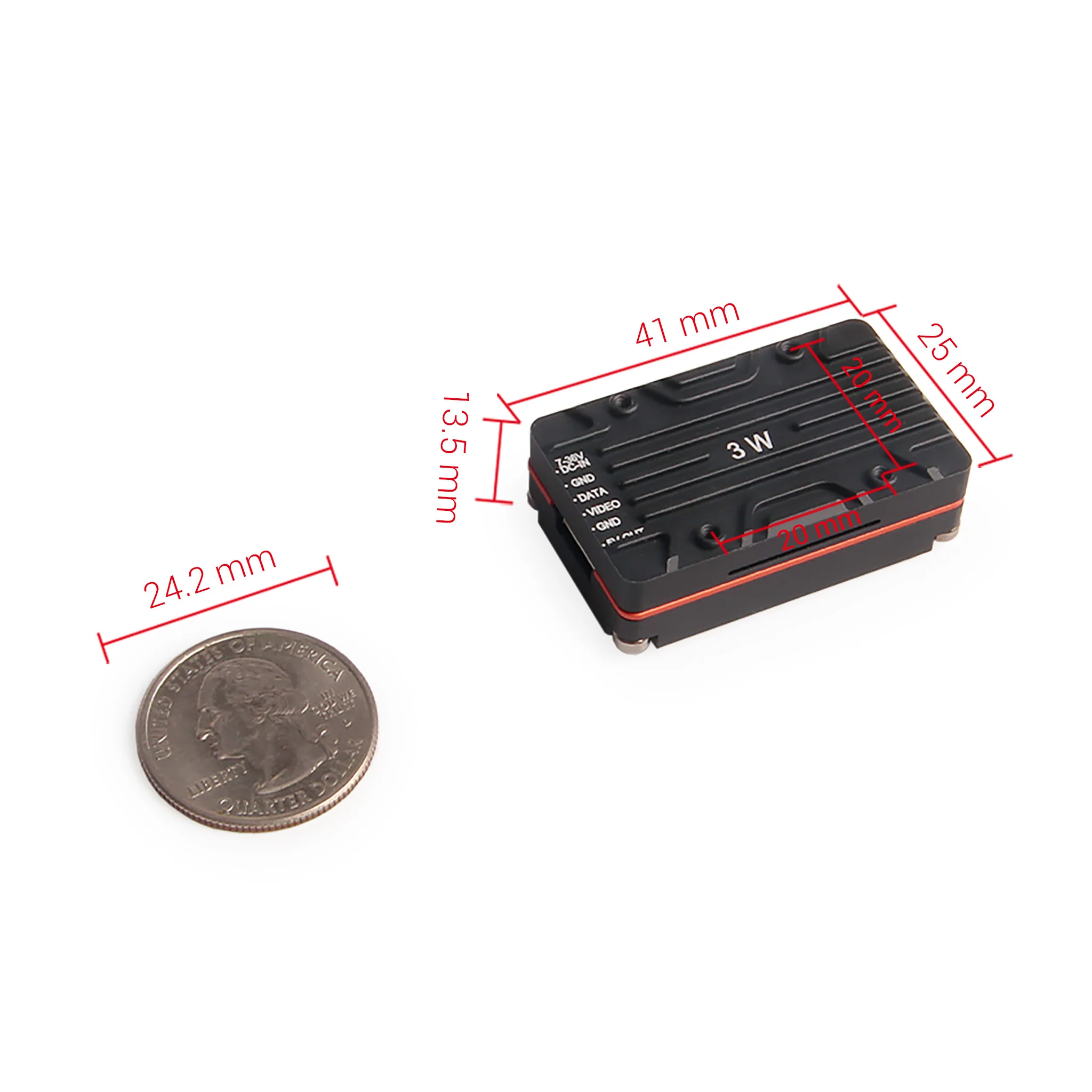

Dimension(L*W*H)	Standard: 40.8 mm 24.8 mm 13.3mm Pro: 53.79 mm 27.8 mm 13.5 mm

WARNING: Make sure to install the antenna before turning on this video transmitter

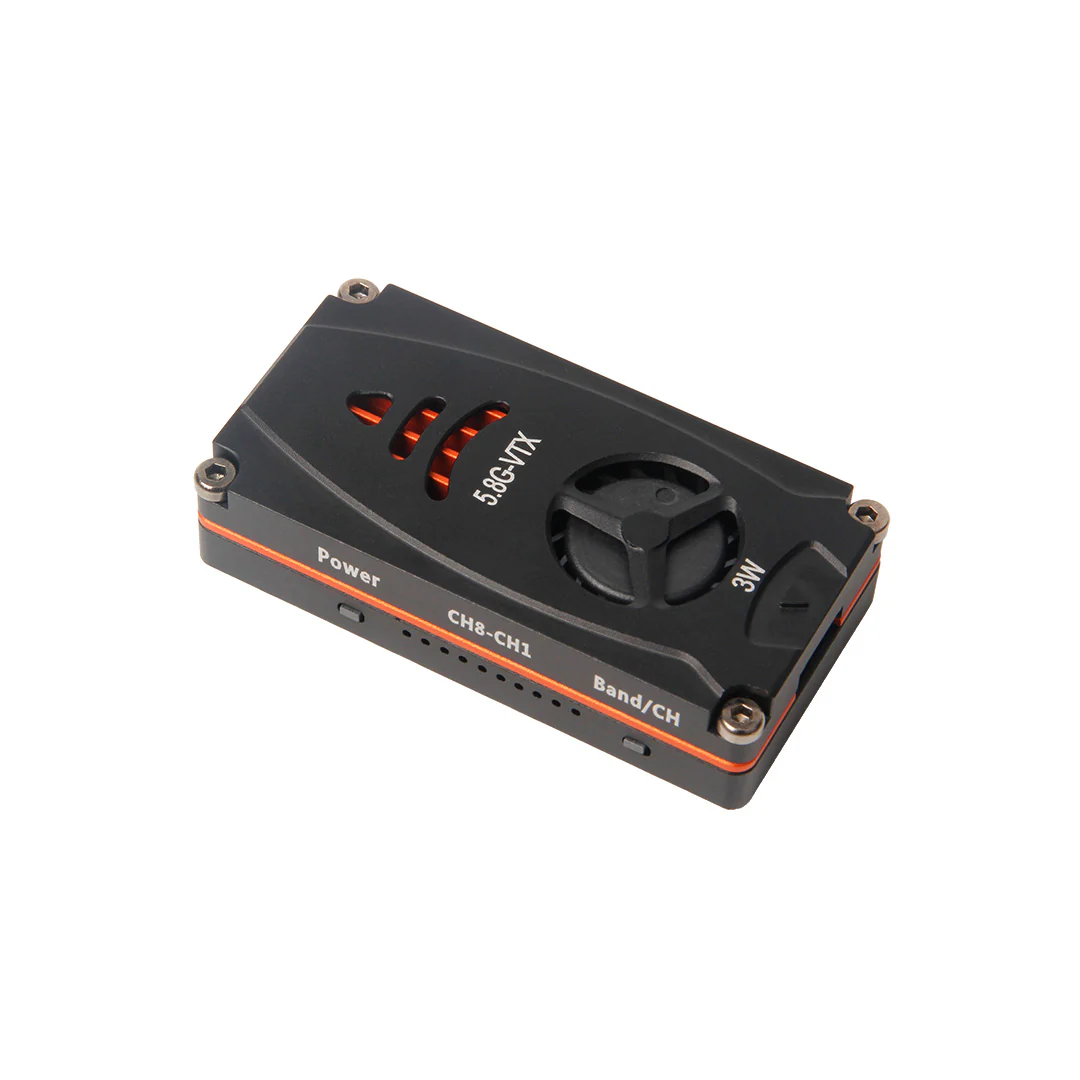

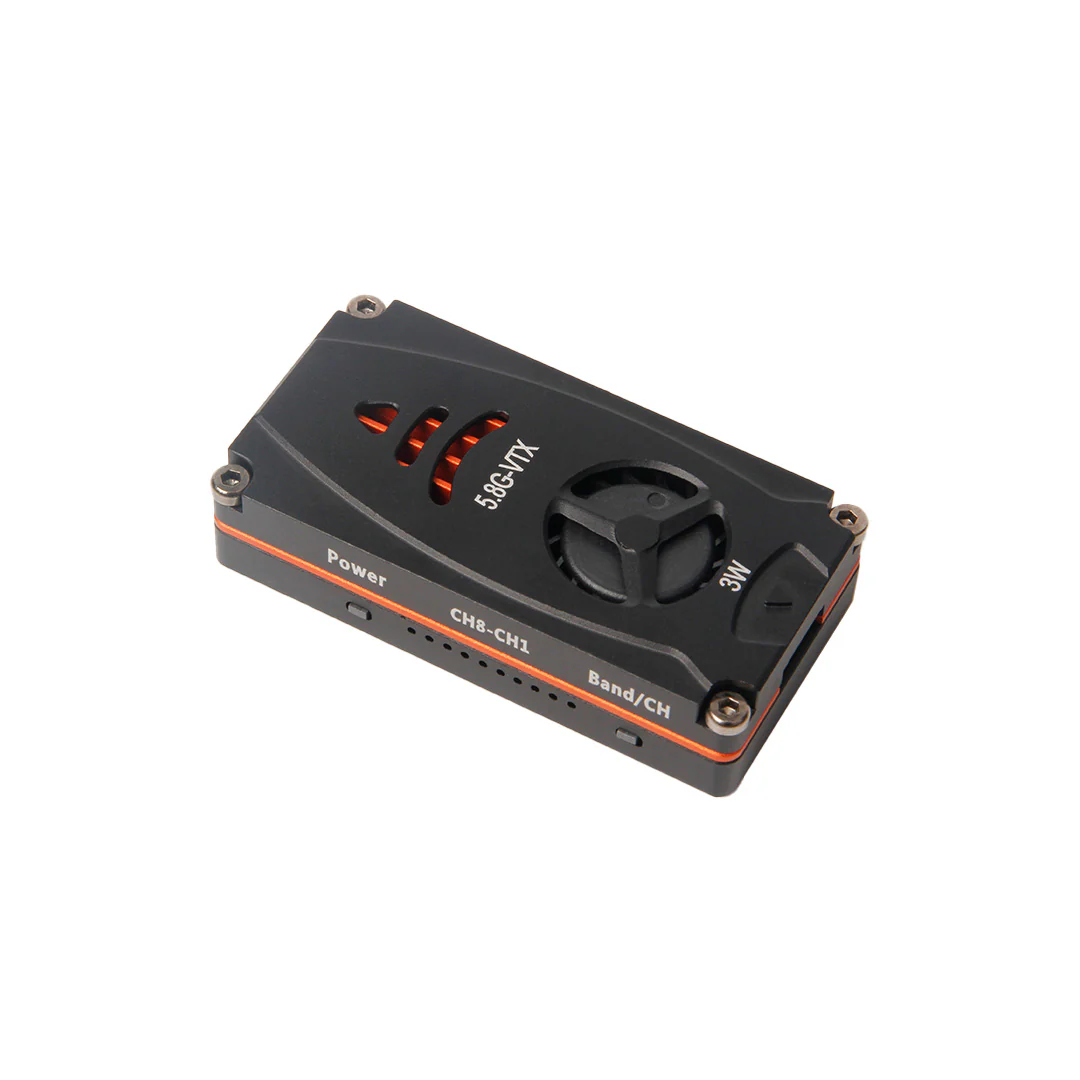

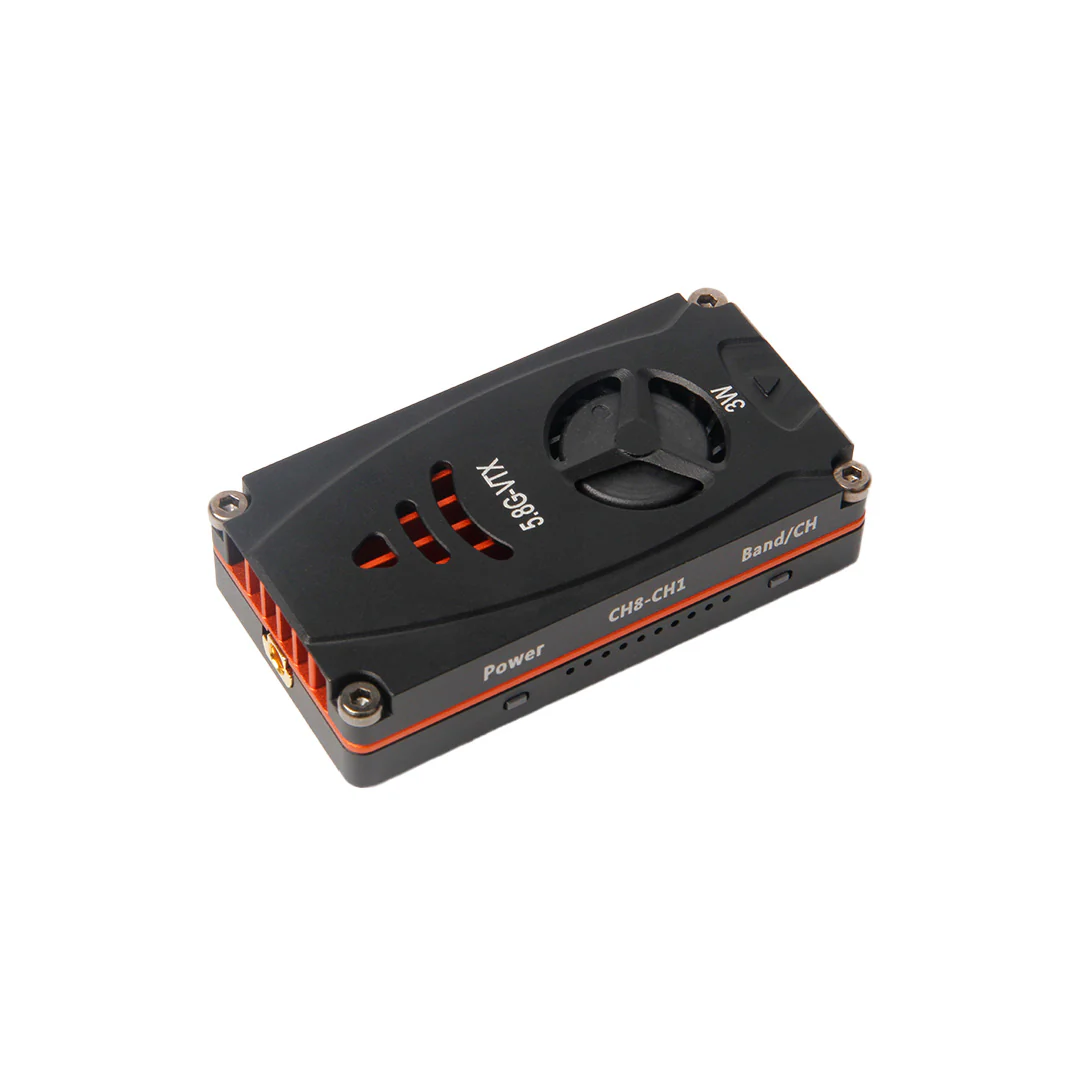

Indicator Light Description

• Power light (Green)

  • Blink once per sequence - 25mW
  • 2 per sequence - 1.6W (400mW for Pro version)
  • 3 per sequence - 2W (600mW for Pro version)
  • 4 per sequence - 2.5W (1.6W for Pro version)
  • 5 per sequence - 3W
• Frequency indicator light (Blue)

  • Binary indicator. No lights means CH1, all lights means CH7

• Frequency band lights (Red)

  • Blink once per sequence - Band A

  • 2 per sequence - Band B
  • 3 per sequence - Band E
  • 4 per sequence - Band F
  • 5 per sequence - Band R
  • 6 per sequence - Band L
  • 7 per sequence - Bnad X

Function Button Operation Instructions

• To switch frequency - Short press the button to switch channel.
• To switch the frequency band - Press and hold the button for 2 seconds to enter band changing mode. Short press the button to change the frequency band once enter the band changing mode.
• To switch power - Press and hold the button for 6 seconds to enter power changing mode. Short press the button to switch the power level. Green LED blinking times for each blinking sequence indicate the power level (25mW/1.6W/2W/2.5W/3W).

• Once the configuration is finished, wait 8 seconds for it to save the settings.

Frequency Table

A	B	E	F	R	L	X
5865	5733	5705	5740	5658	5362	4990
5845	5752	5685	5760	5695	5399	5020
5825	5771	5665	5780	5732	5436	5050
5805	5790	5645	5800	5769	5473	5080
5785	5809	5885	5820	5806	5510	5110
5765	5828	5905	5840	5843	5547	5140
5745	5847	5925	5860	5880	5584	5170
5725	5866	5945	5880	5917	5621	5200

Betaflight VTX table .jason file

Betaflight VTX table .jason file for Pro version

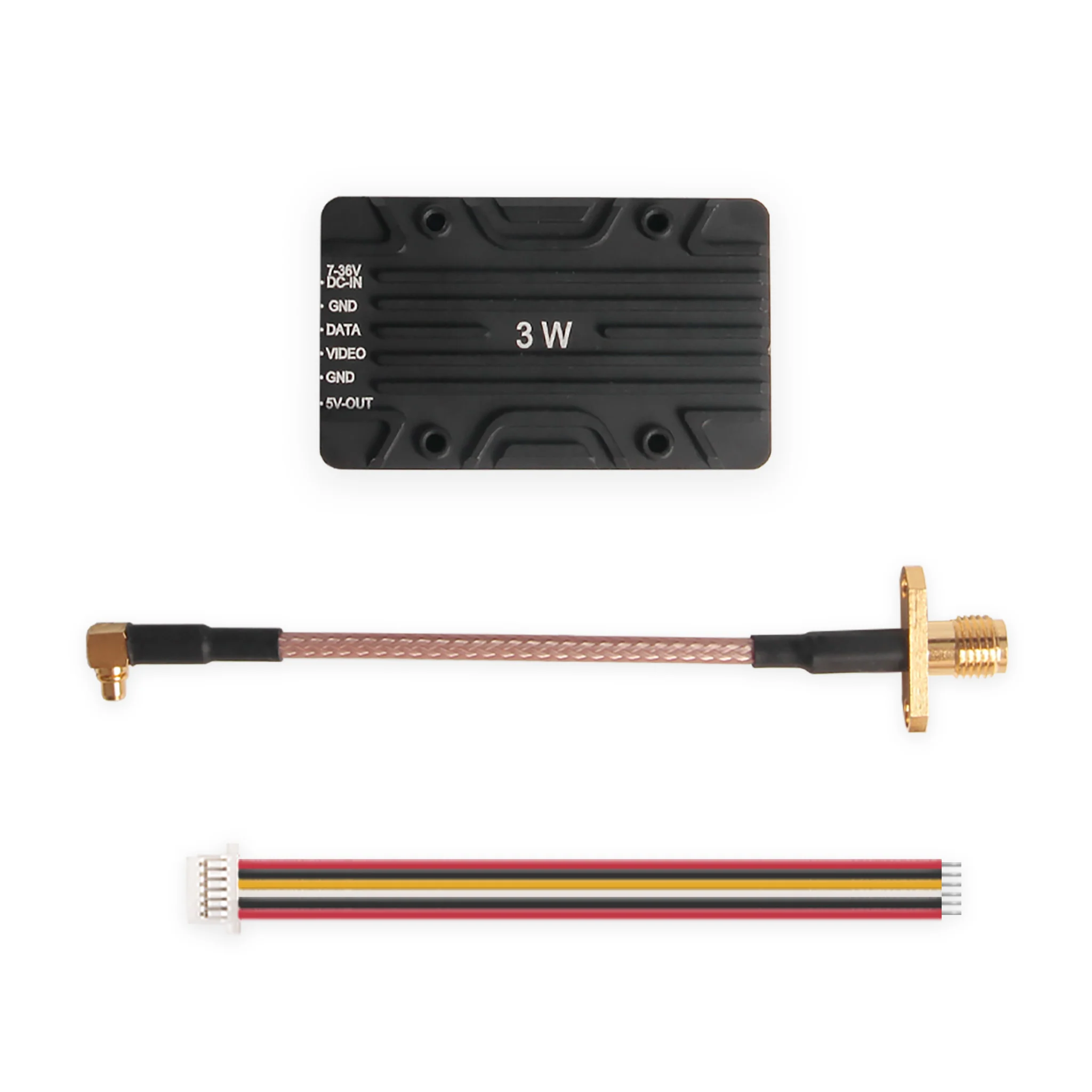

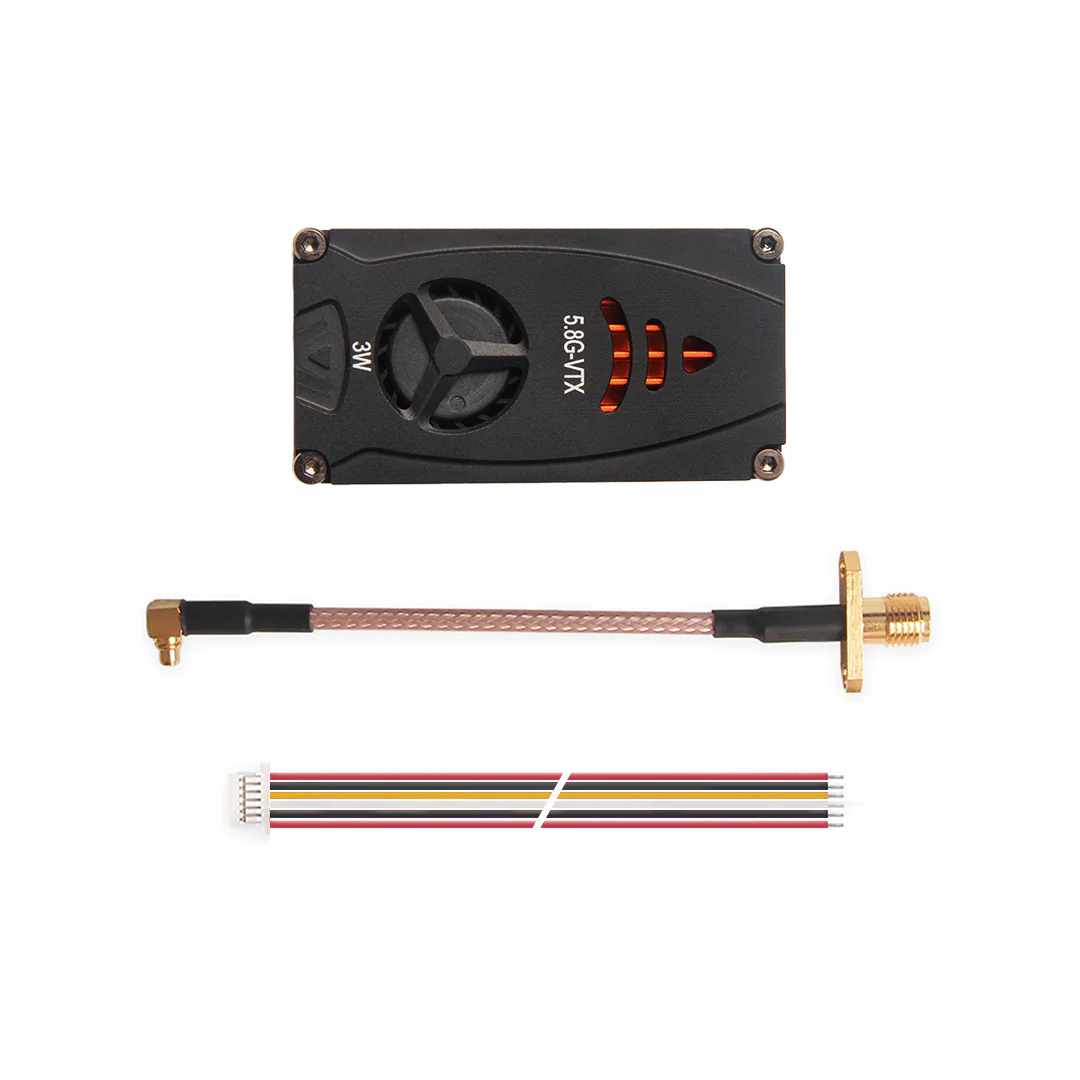

Package Includes:

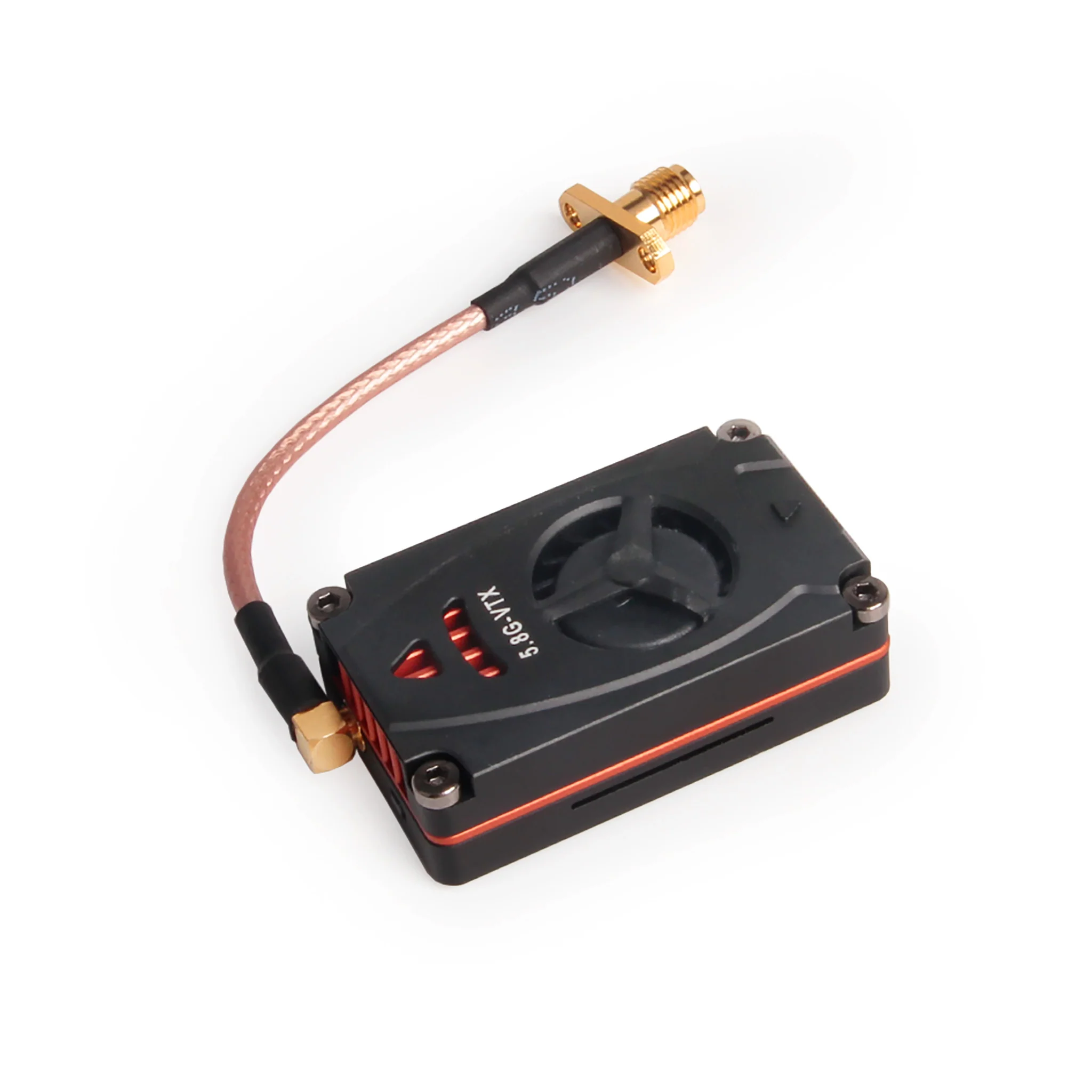

• Atlatl HV 5.8G 3000mW VTx *1
• 80mm SMA--MMCX Cable *1
• 70mm 6pin JST SH wire *1
