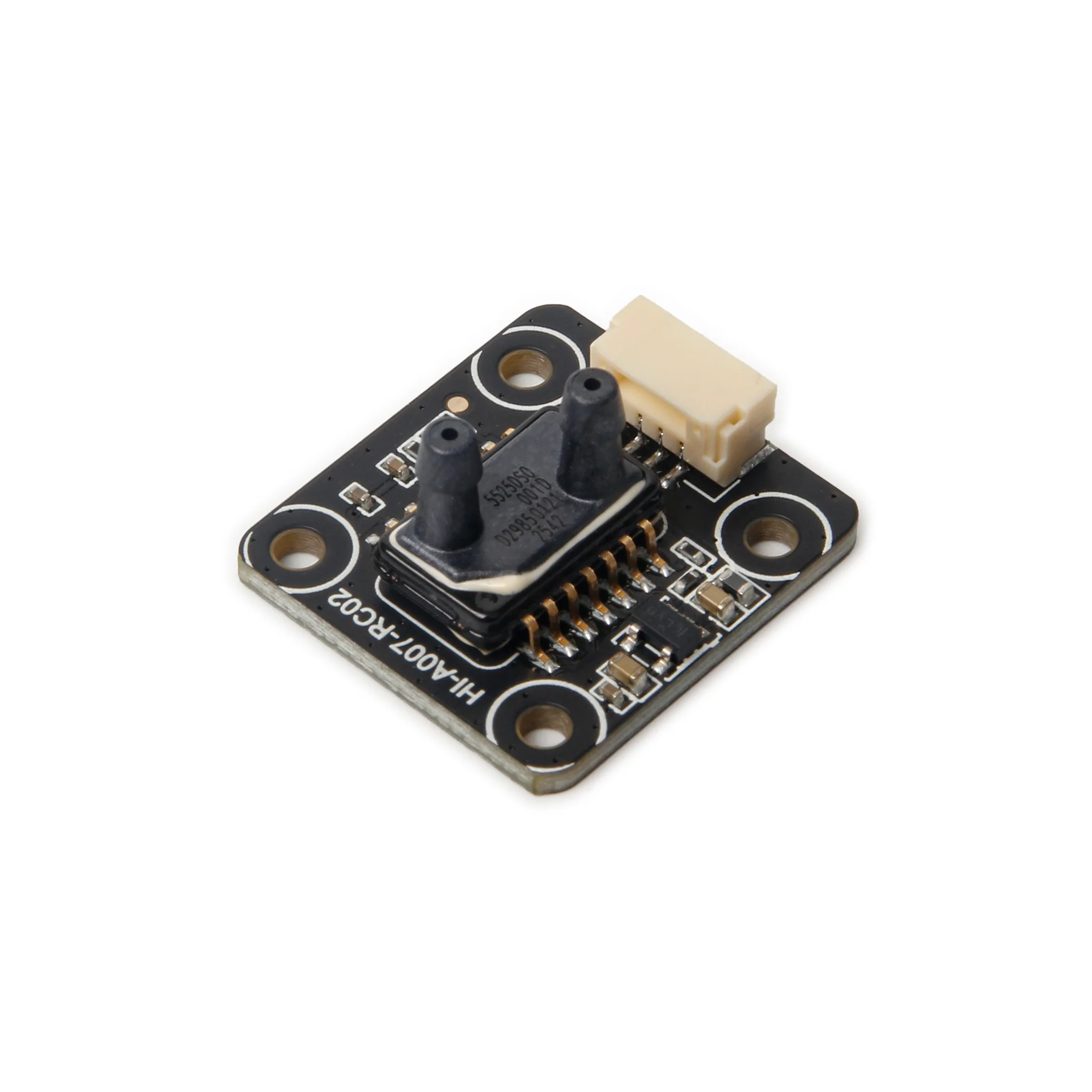

Standard Precision Digital Air Speed Sensors

The Holybro Digital Airspeed Sensor has a very low offset, a high resolution, and best of all, does not suffer from the noise induced by long cables and offsets in the ratio-metric output on other airspeed sensors. Supported on all Holybro Flight Controller Boards with Ardupilot & PX4.

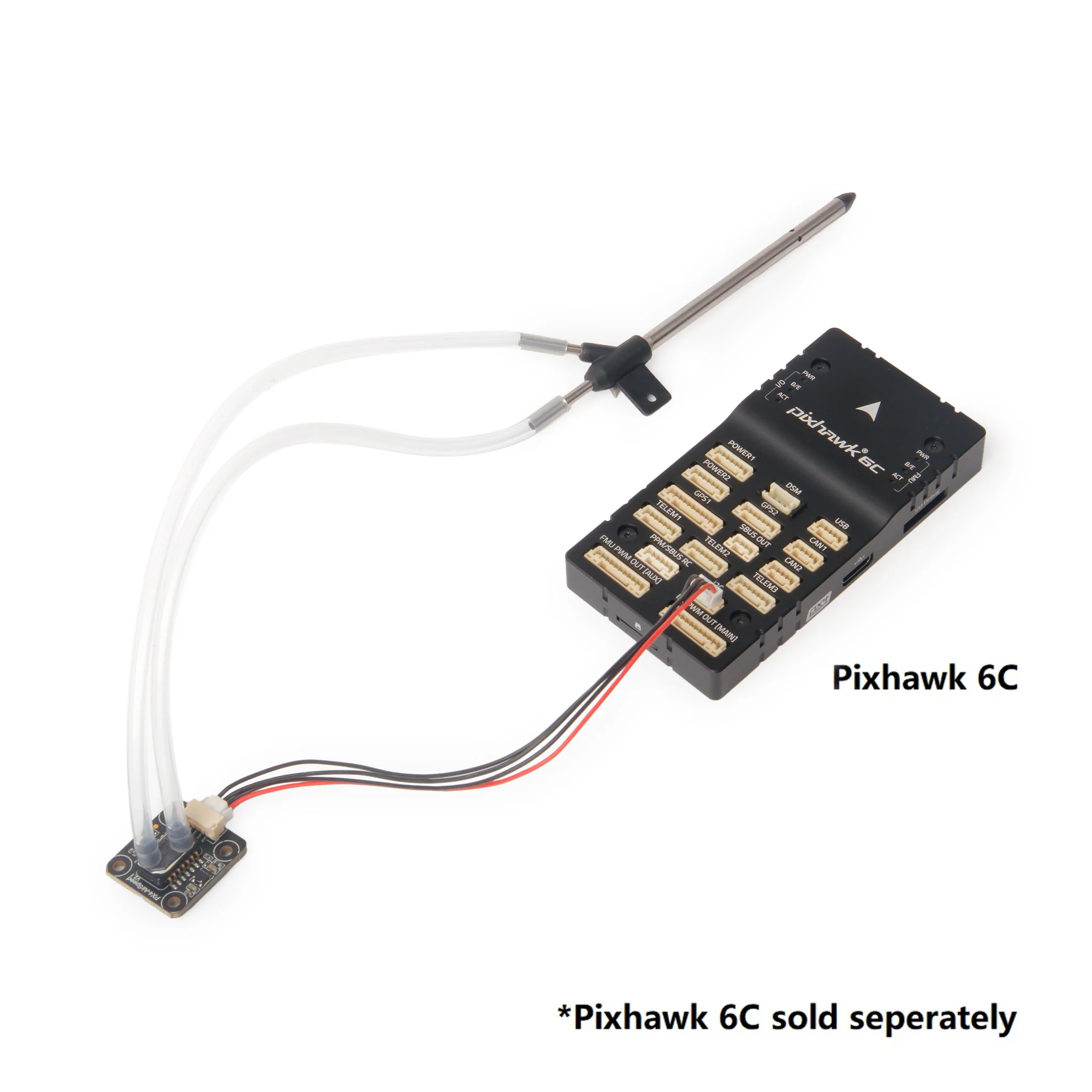

All standard precision sensors come with temperature compensation. It measures temperature to calculate true airspeed from indicated airspeed, using the static pressure sensor on the Flight Controller. Not affected by the heat of nearby processing components, it is much closer to ambient air temperature than in previous analog sensor setups. Supported on all Pixhawk Flight Controllers, this kit comes with M3 / 6-32 mounting holes.

Airspeed Sensor Comparision Chart:

	DLVR		AS1318C	MS4525DO	MS5525DSO
Model Number	DLVR-L10D	DLVR-L20D	AS1318C-001PD5AI-DSD	MS4525DO-DS5AI001DP	MS5525DSO-DB001DS
Standard Range (psi)	0.363	0.725	1	1	1
Burst Range (psi)	7.25		10	10	20
Total Error Band	±0.3%Span		±1%FSS	±1%FSS	±2.5%FSS
Temperature Accuracy (°C)	2		1.5	1.5	1.5
Compensated Temperature (°C)	0~70		0~60	-10~85	0~85
Maximum Air Speed measurement (kph)	226.8	320	360
Pressure Resolution (bit)	14		14	14	24
Temperature Resolution (bit)	11		11	11	24
Update Time (ms)	0.4~9.5		0.5	0.5	0.48~9.04
Operating Temperature (°C)	-25~85		-20~85	-25~105	-40~125
Working Voltage (V)	4.75~5.25
Current Consumption (mA)	~100		~3	~3	~1.4

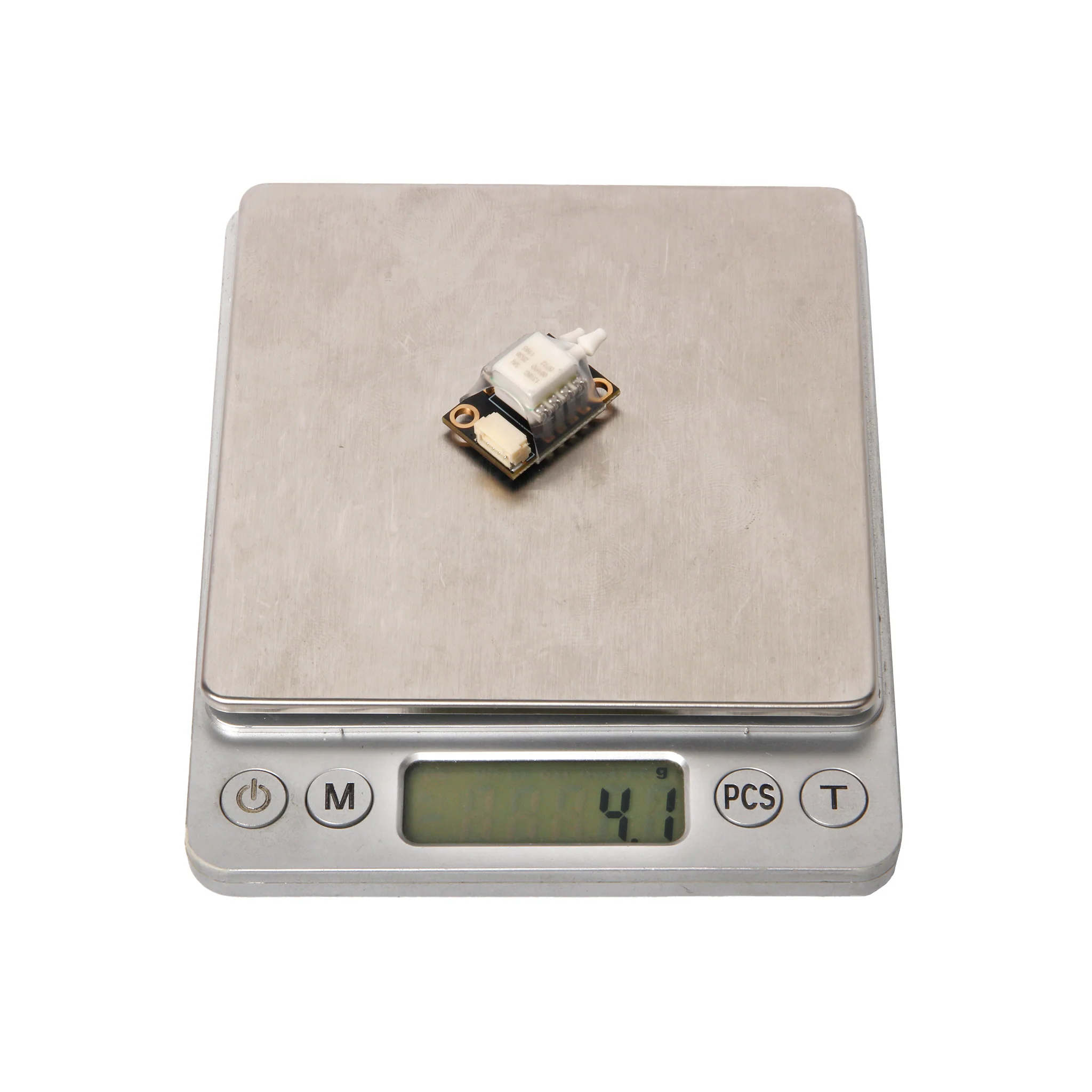

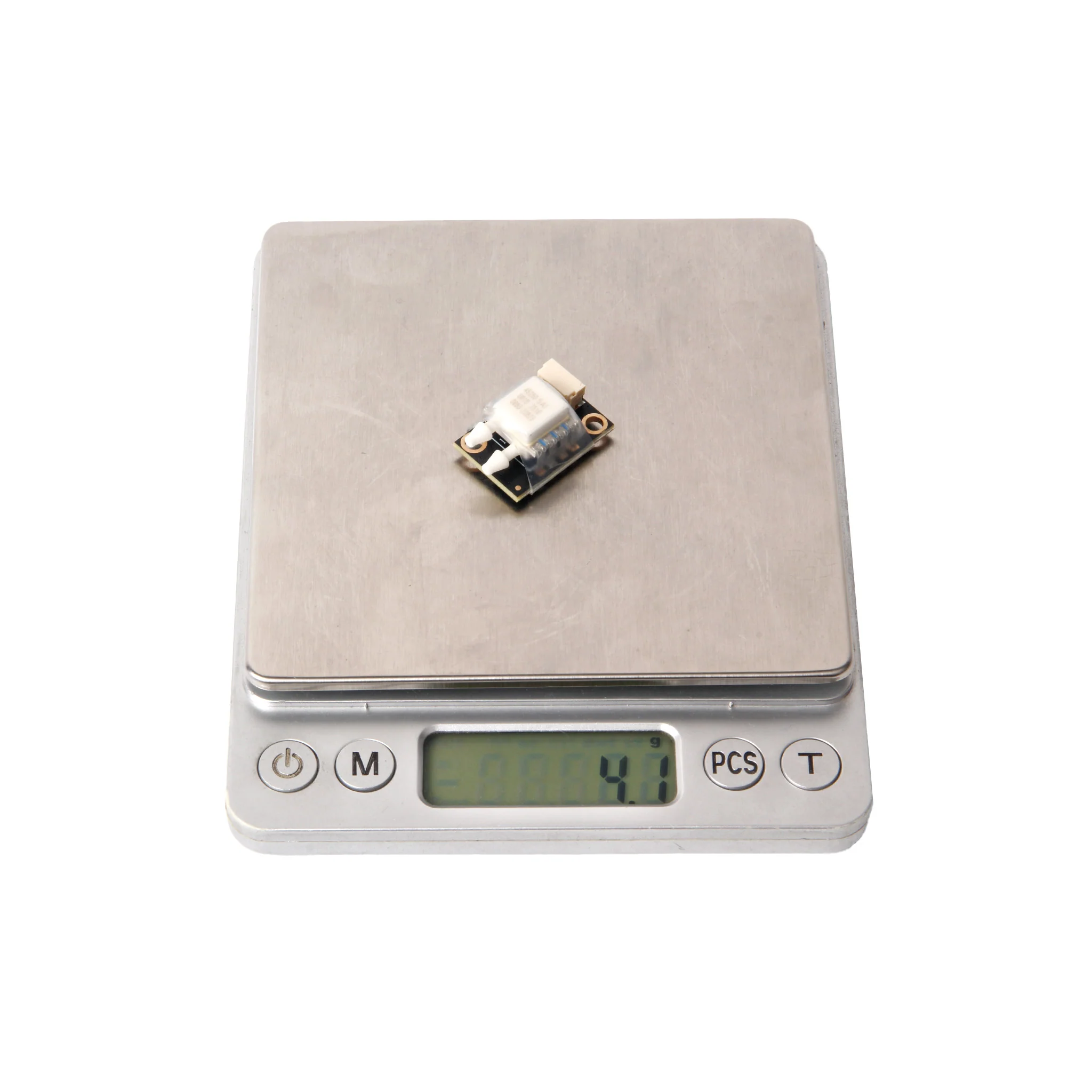

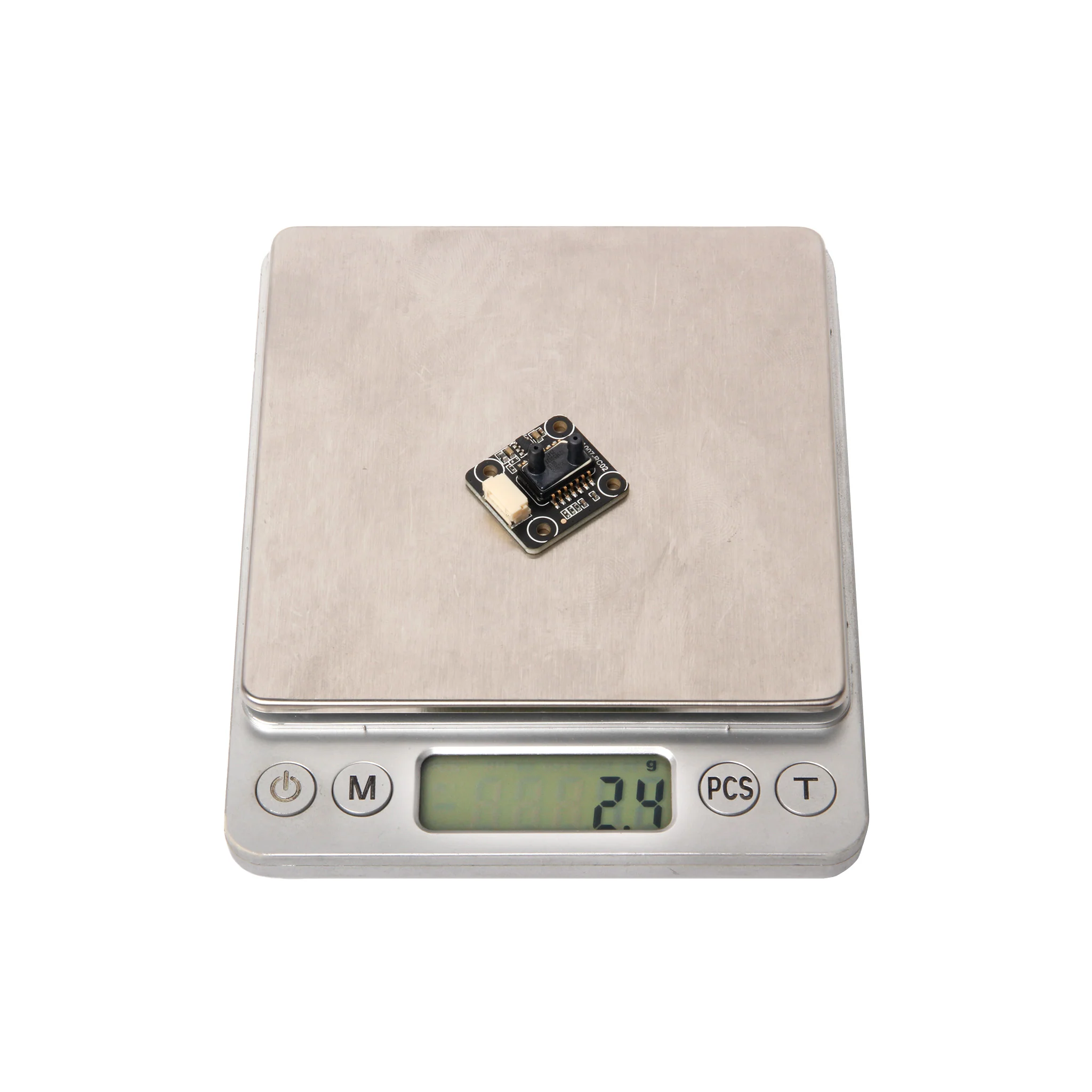

Sensor Module Weight (g)	17.4		4.1	4.1	2.6
Dimensions (mm)	29 x 35.5 x 16.5		17 x 23 x 13	17 x 23 x 13	20 x 22 x 11.4
Interface	DroneCAN		I2C
Address	DroneCAN Auto Config		0x28H	0x28H	0x76

Ports Diagram:

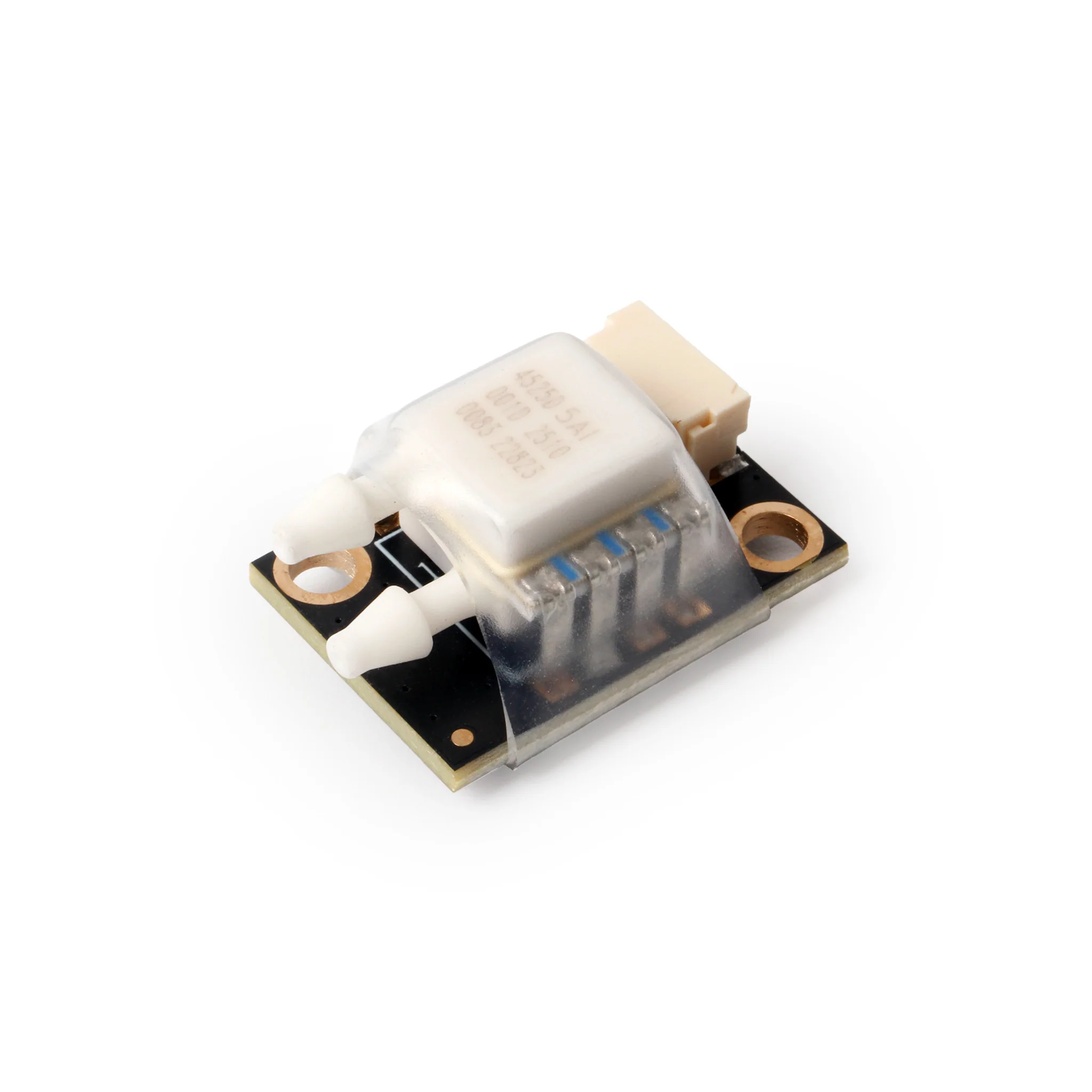

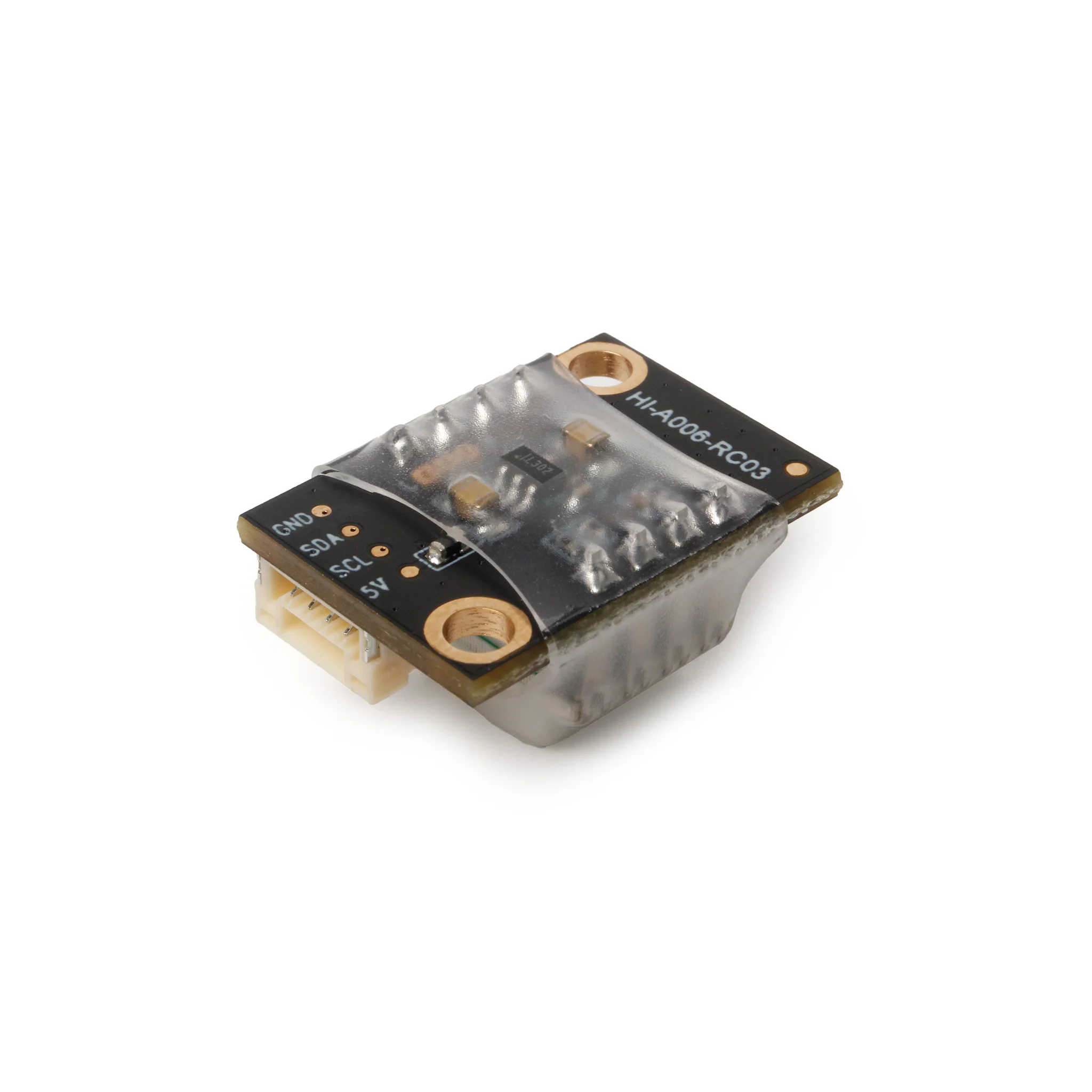

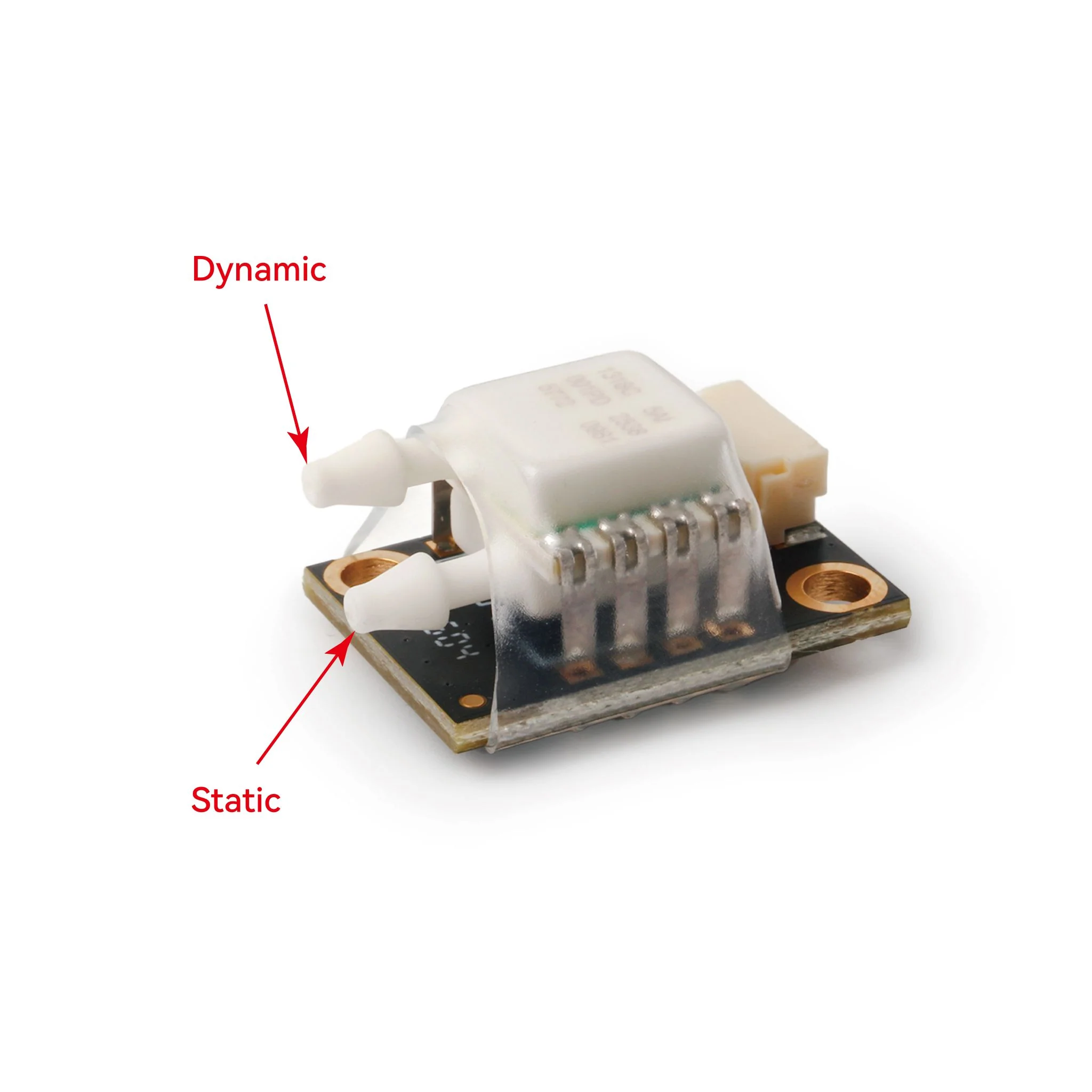

MS4525 and AS1318 shares the same layout:

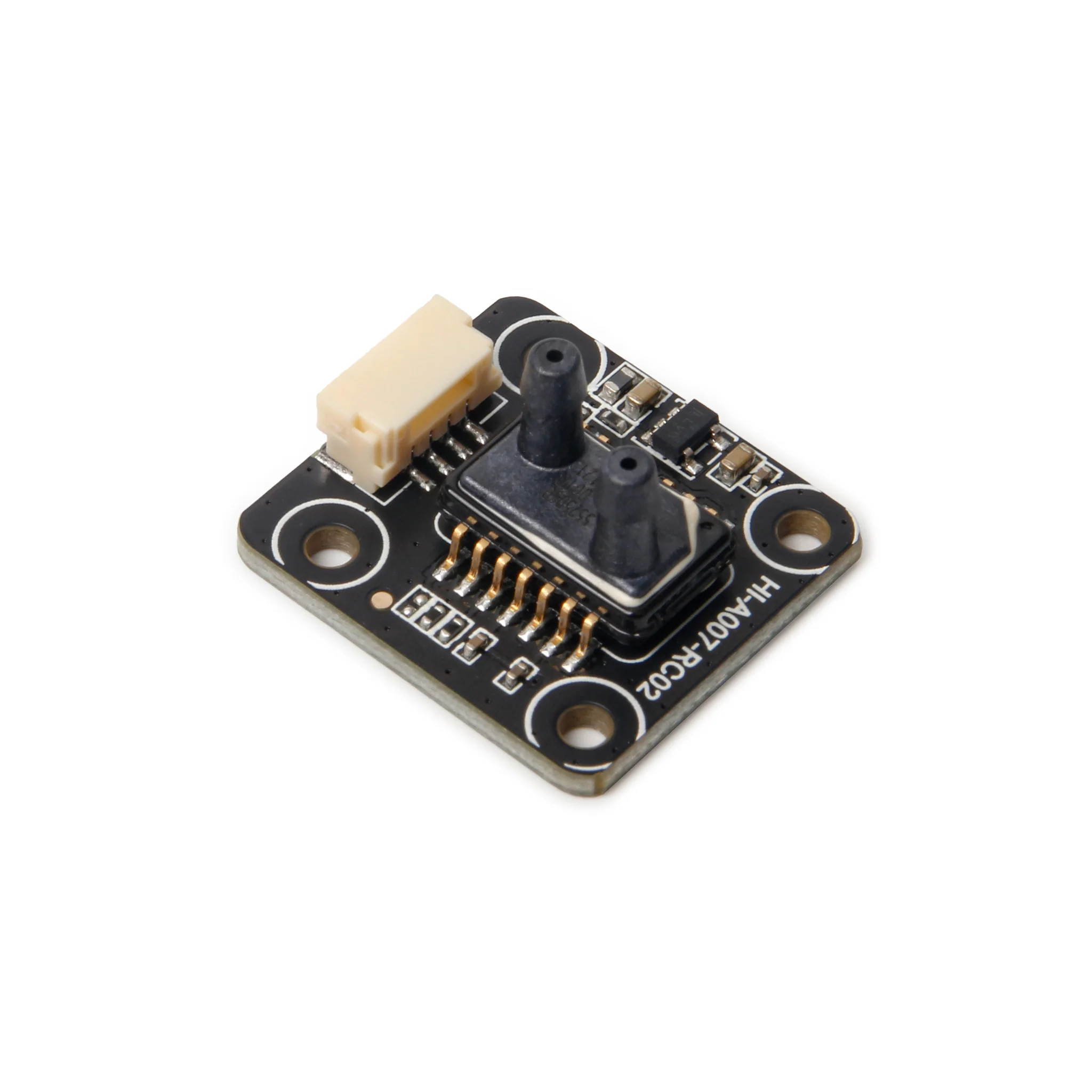

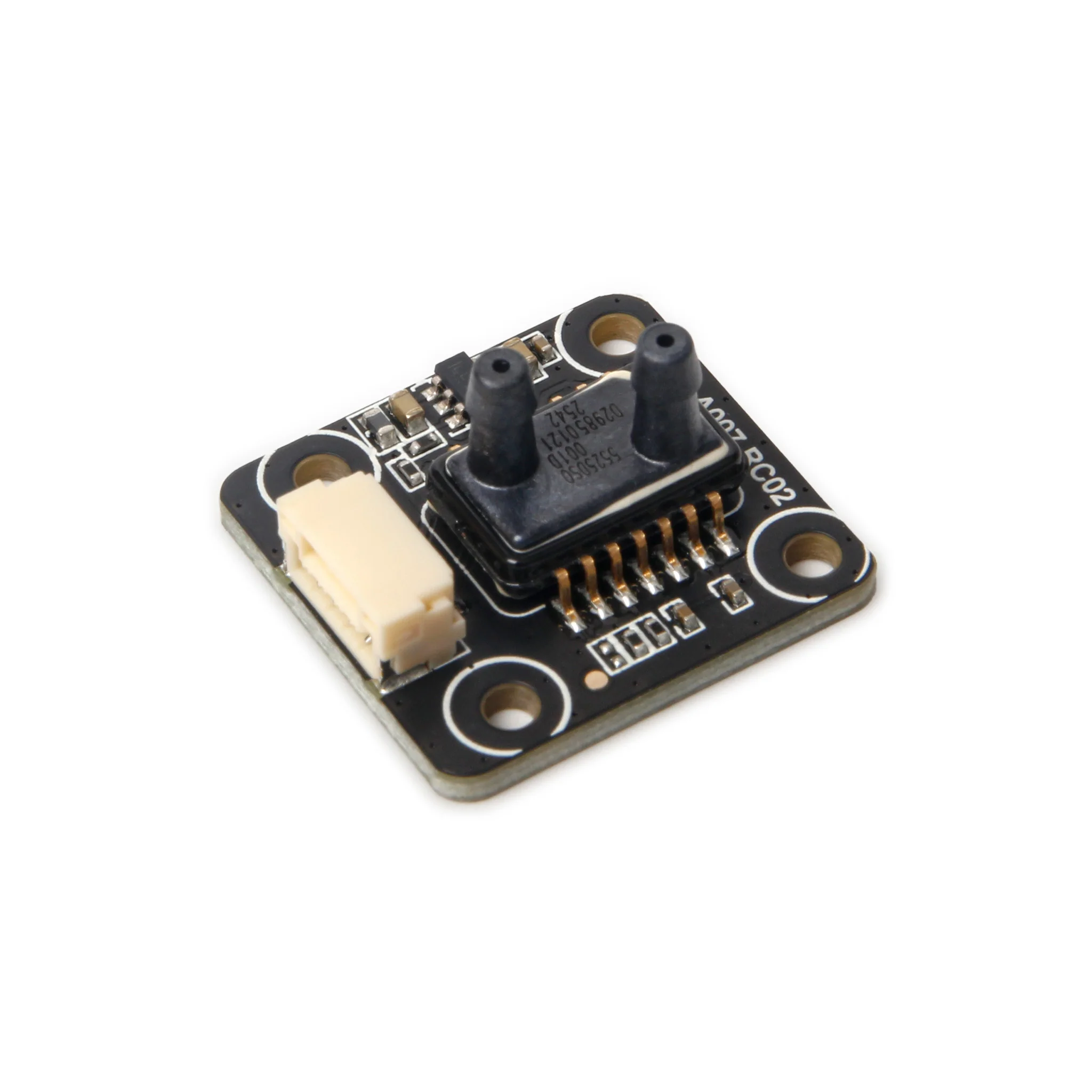

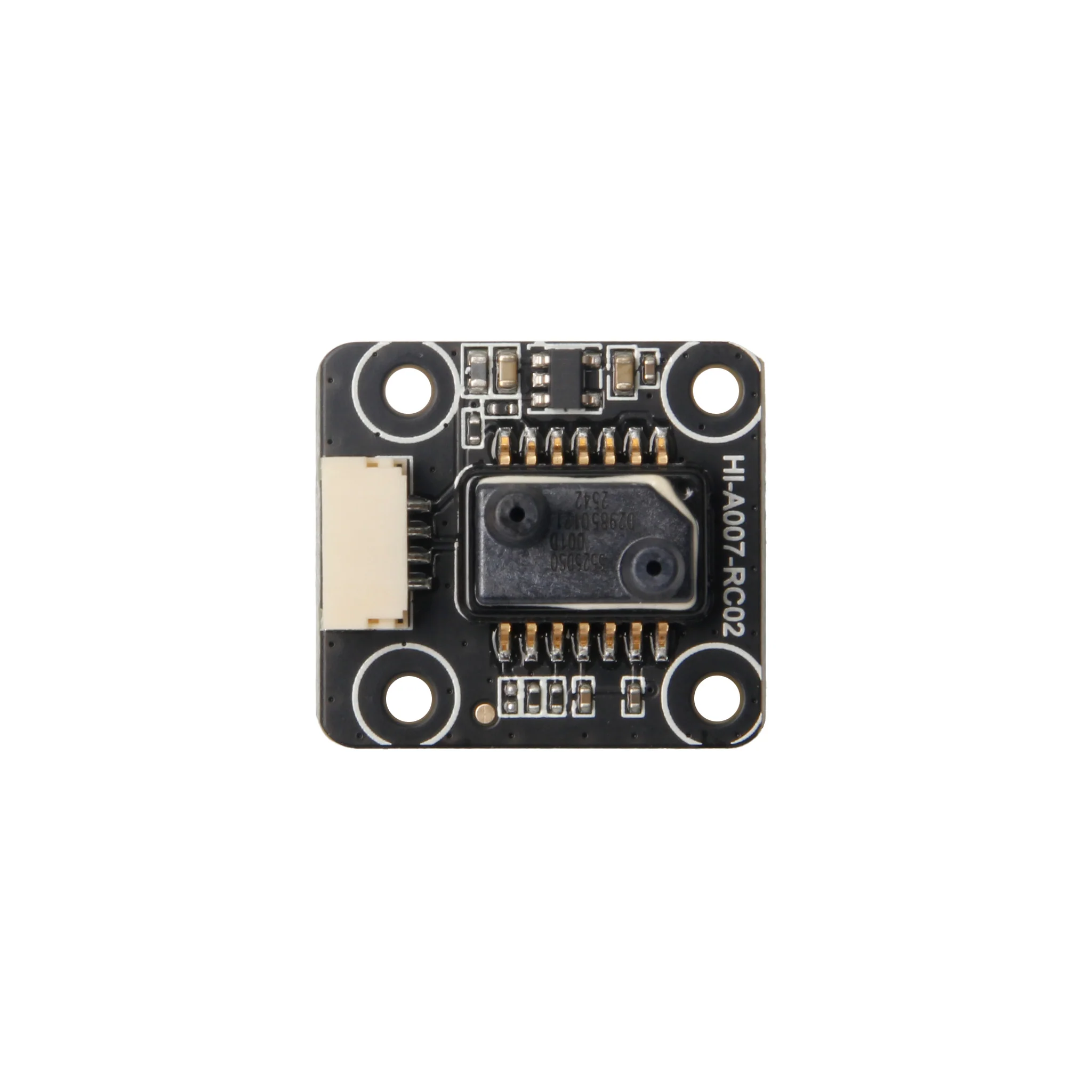

MS5525:

PT40:

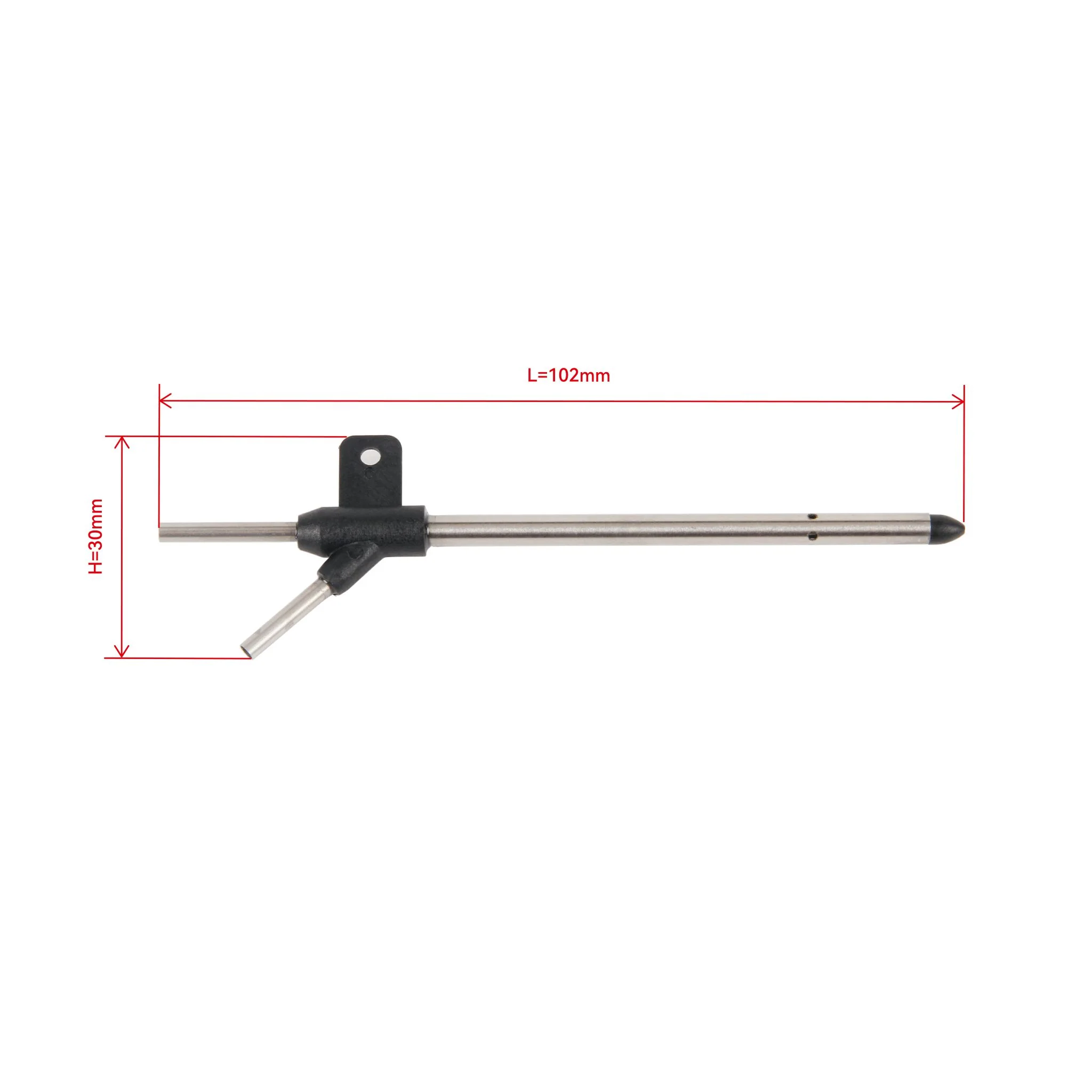

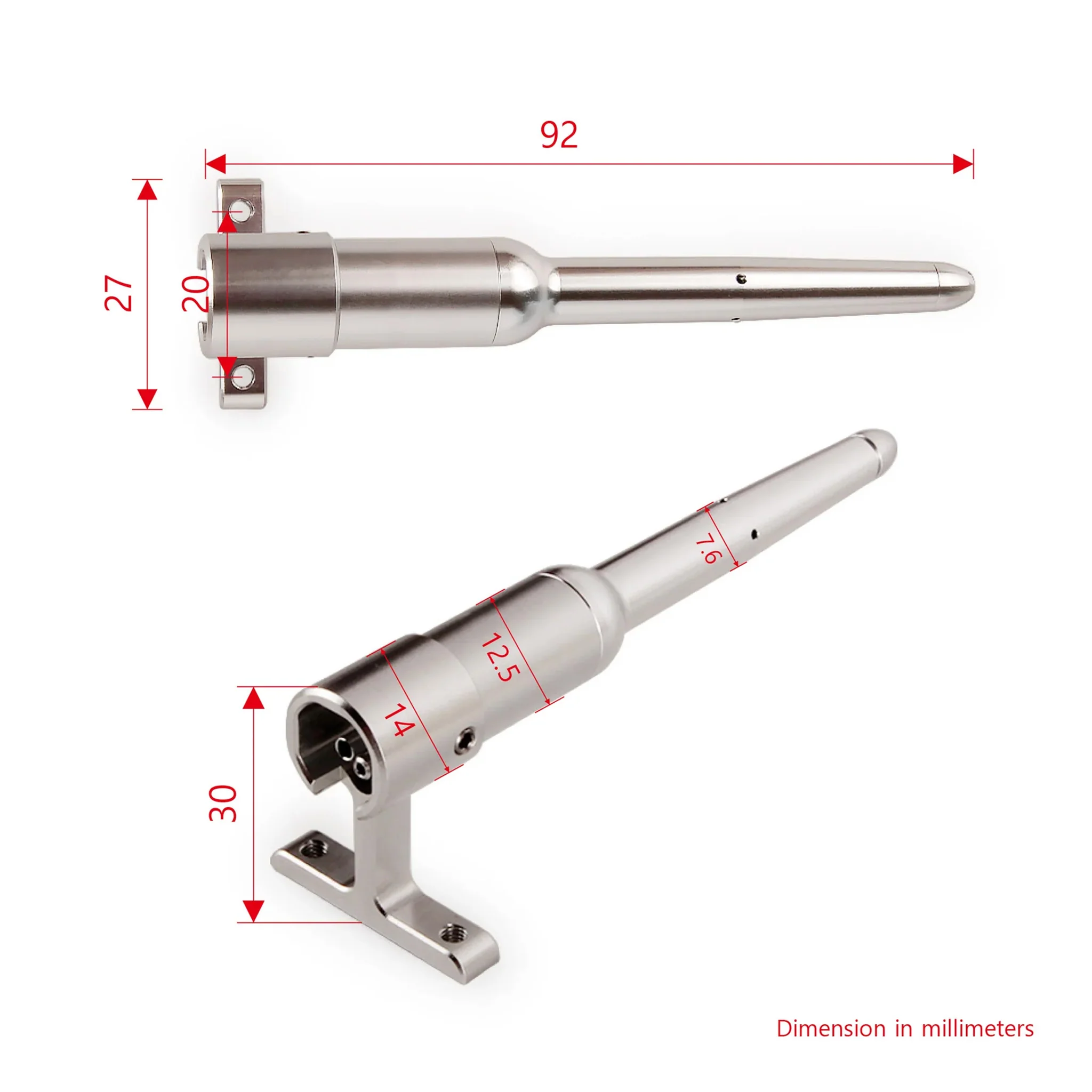

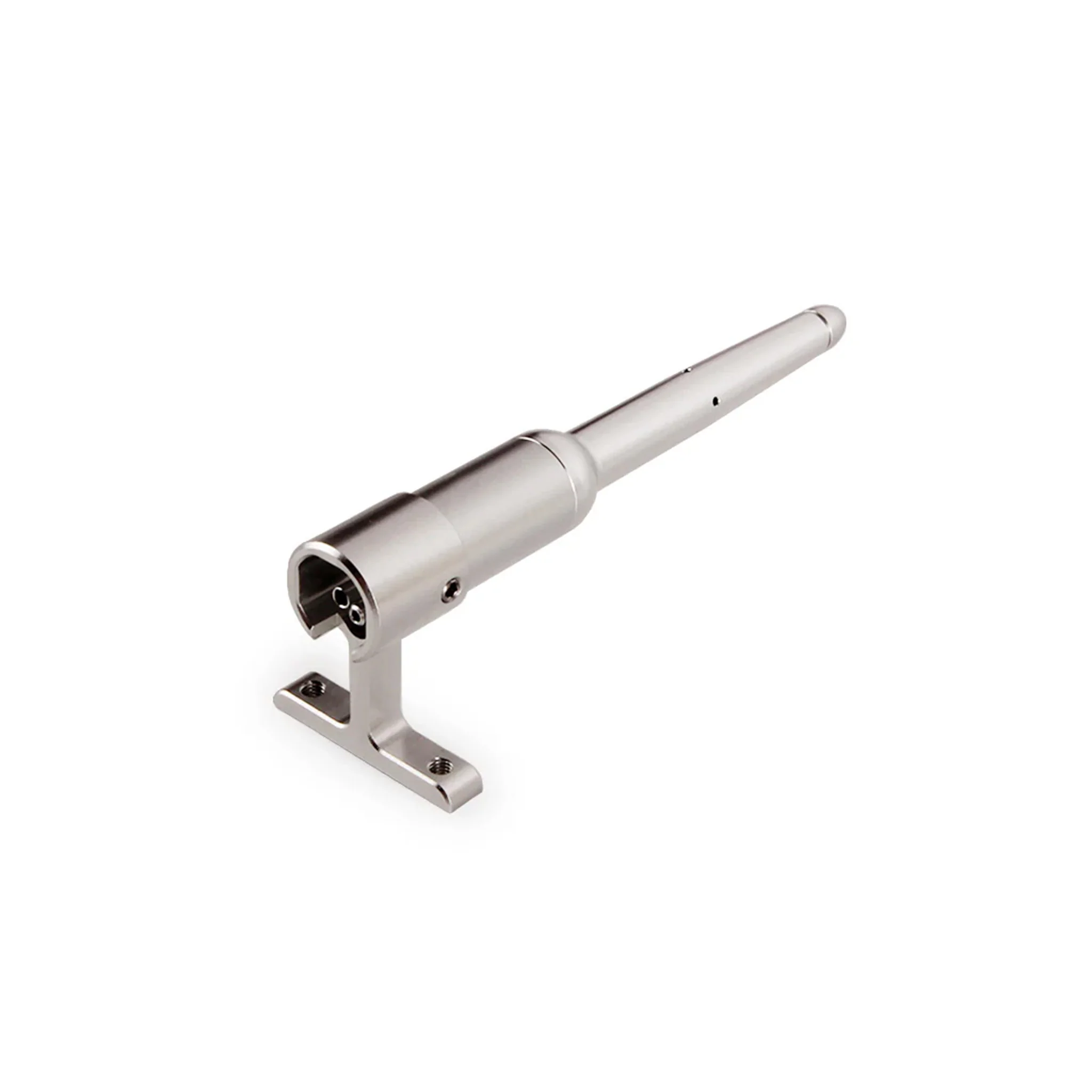

PT60:

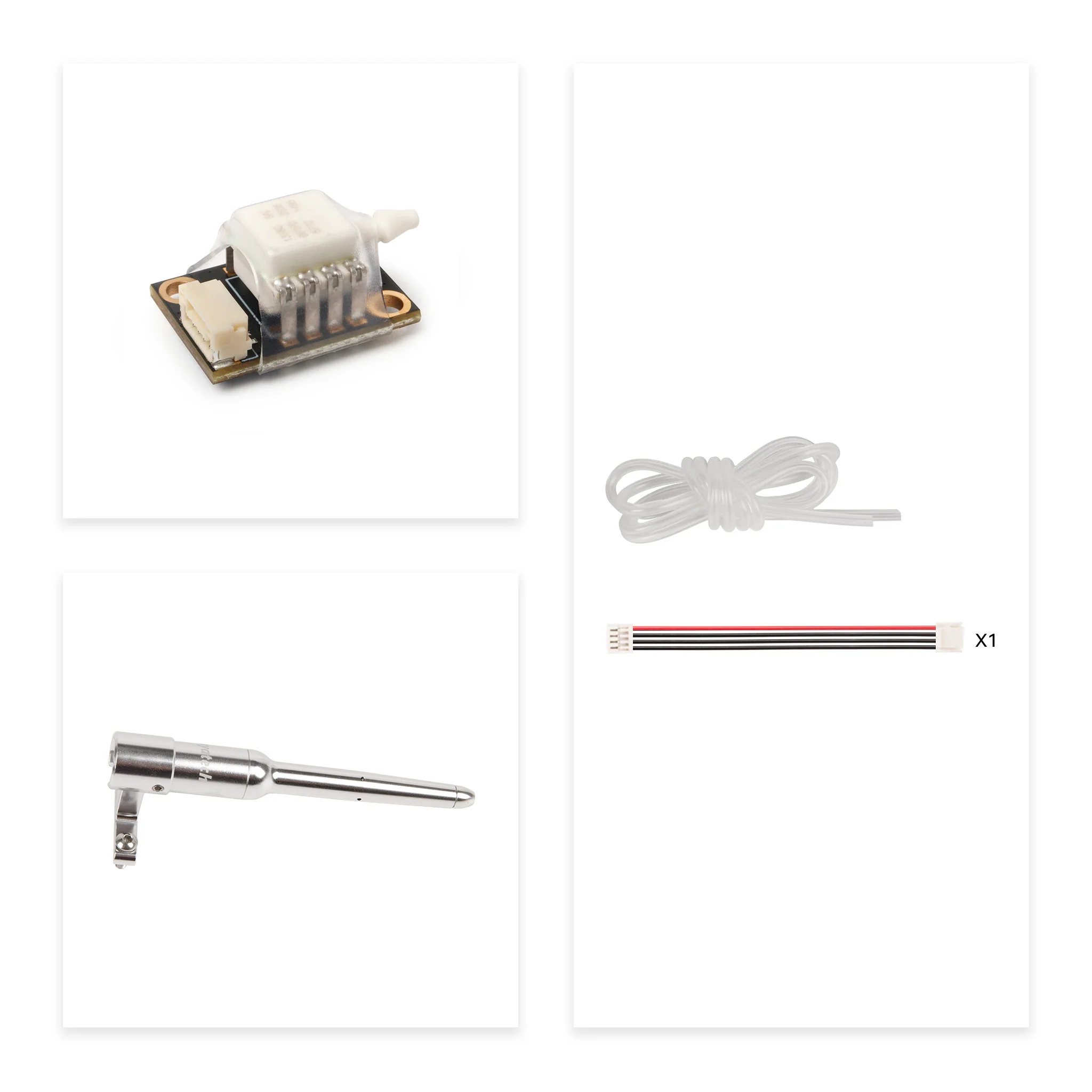

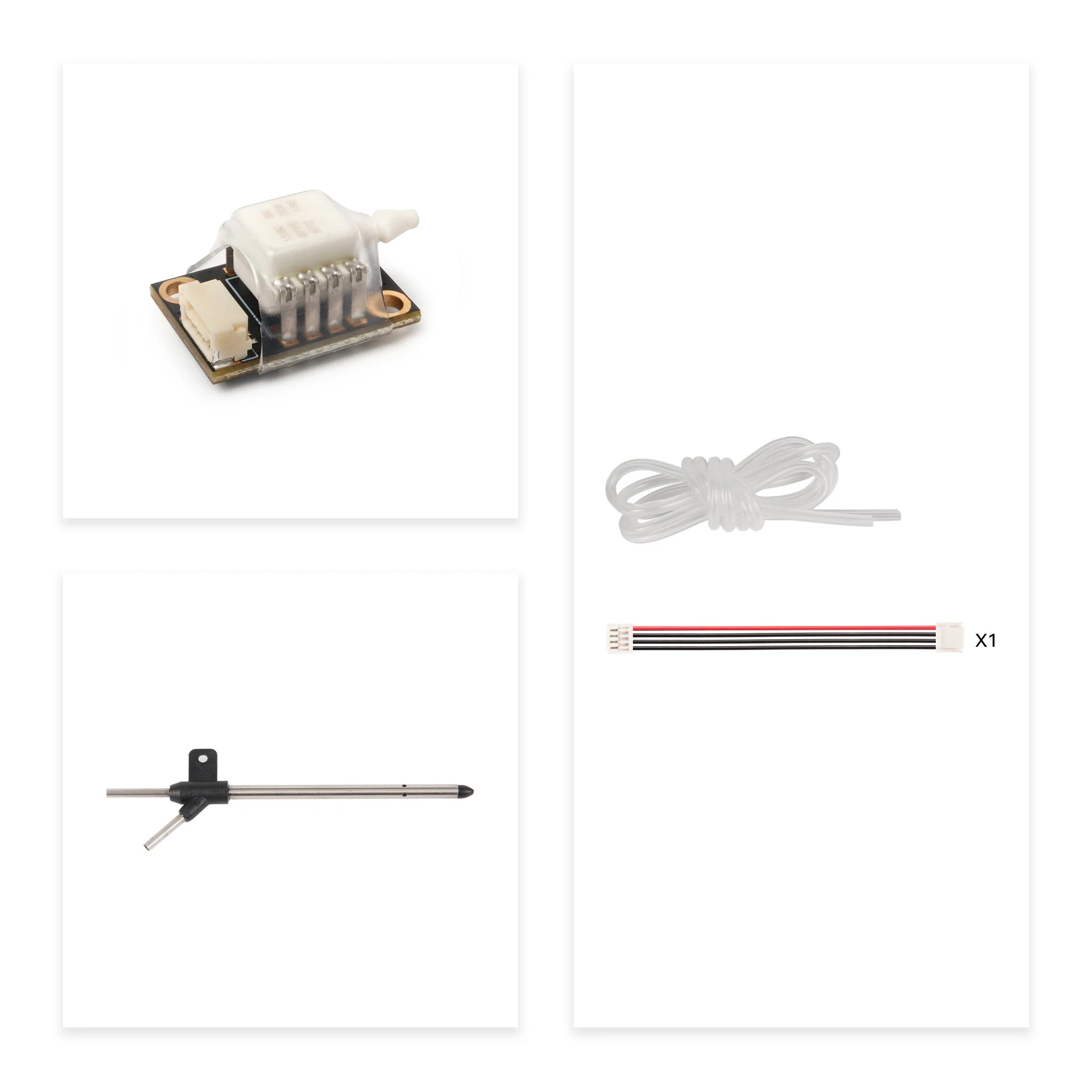

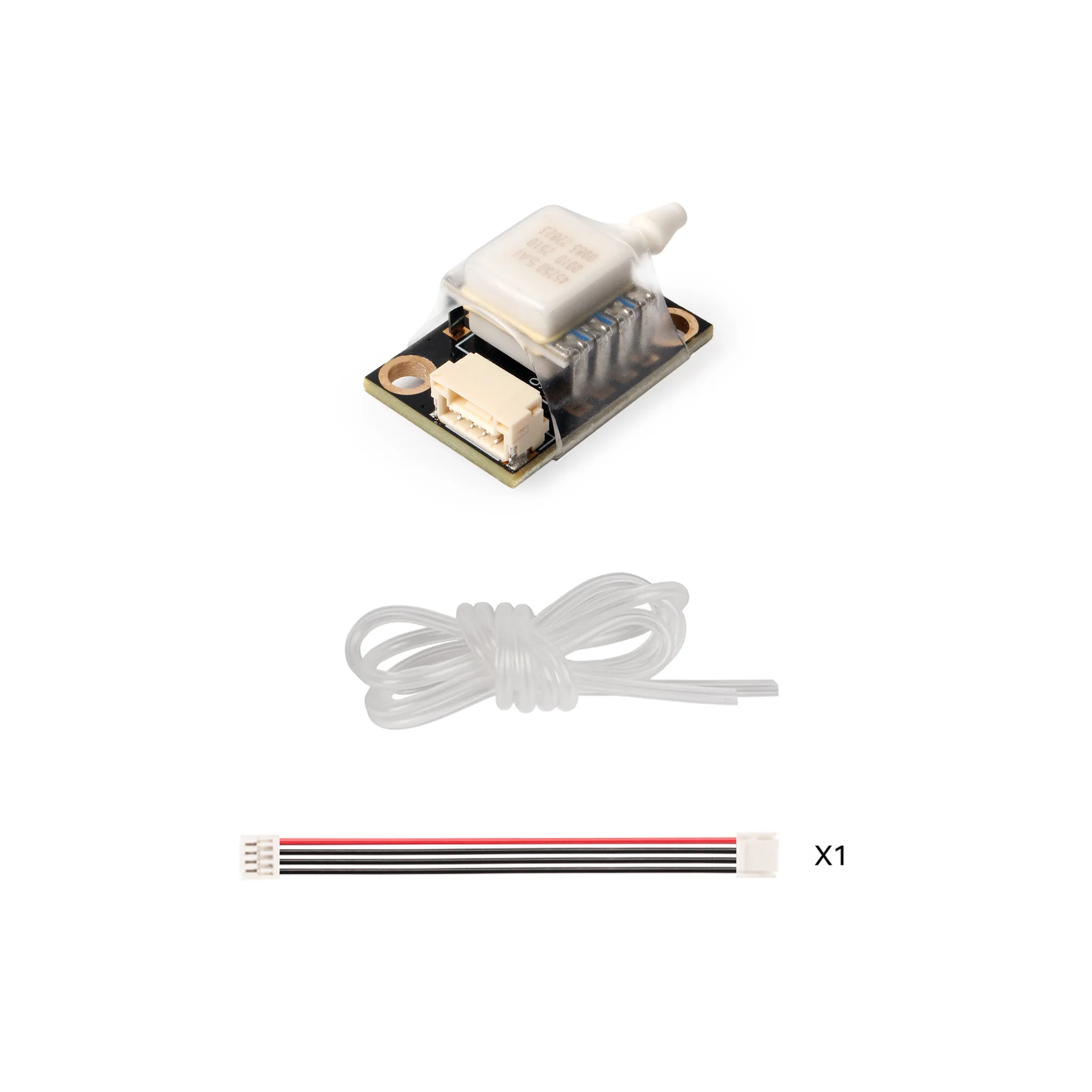

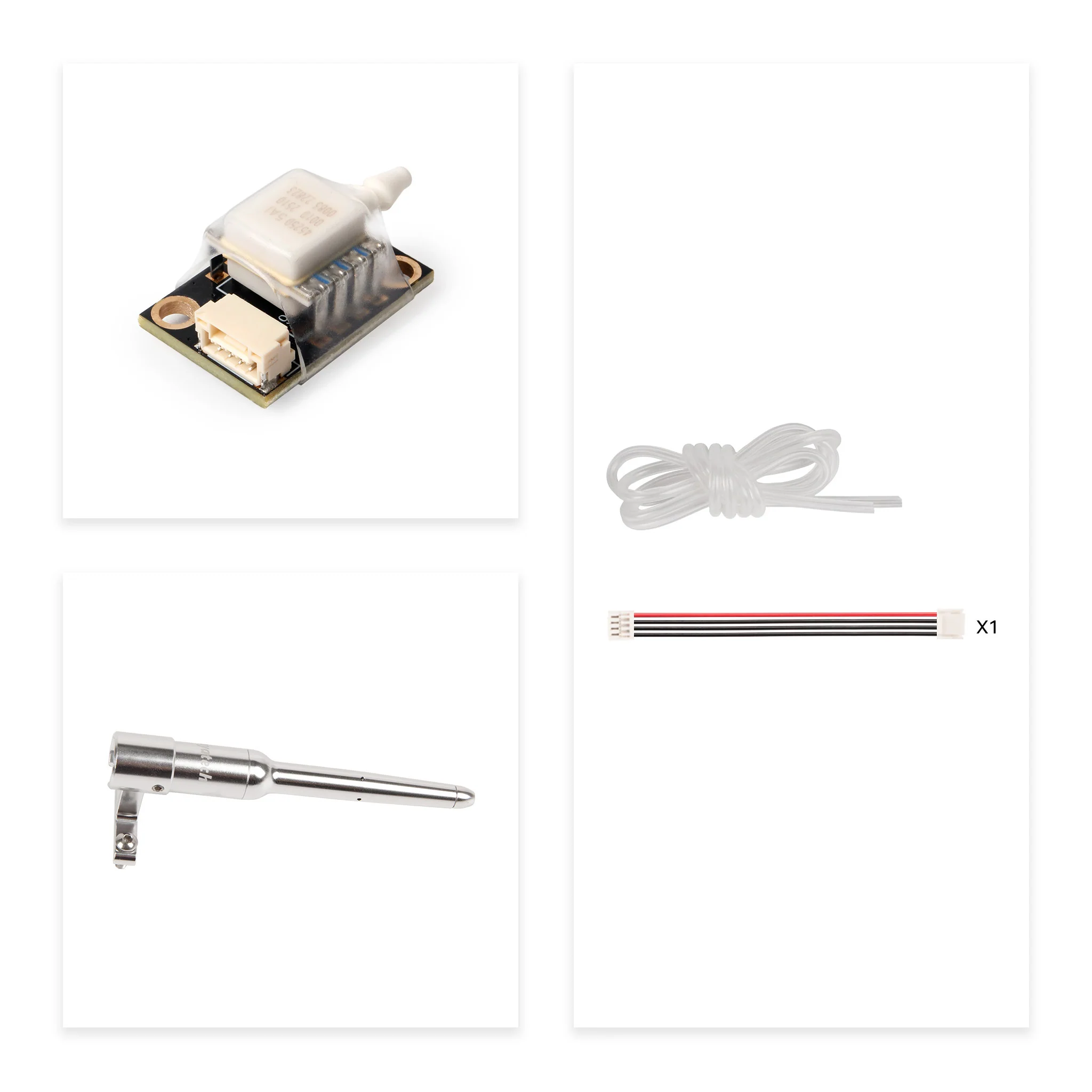

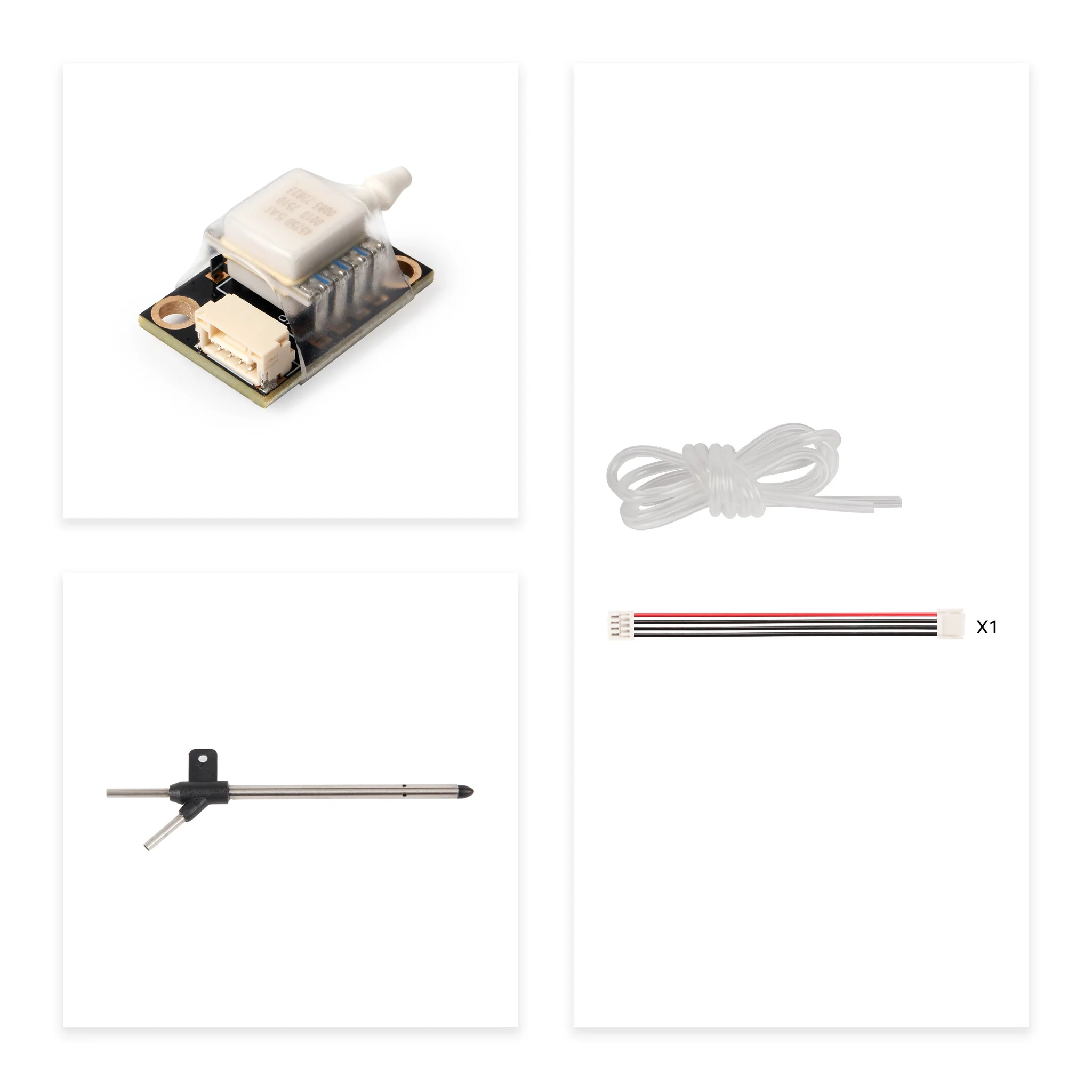

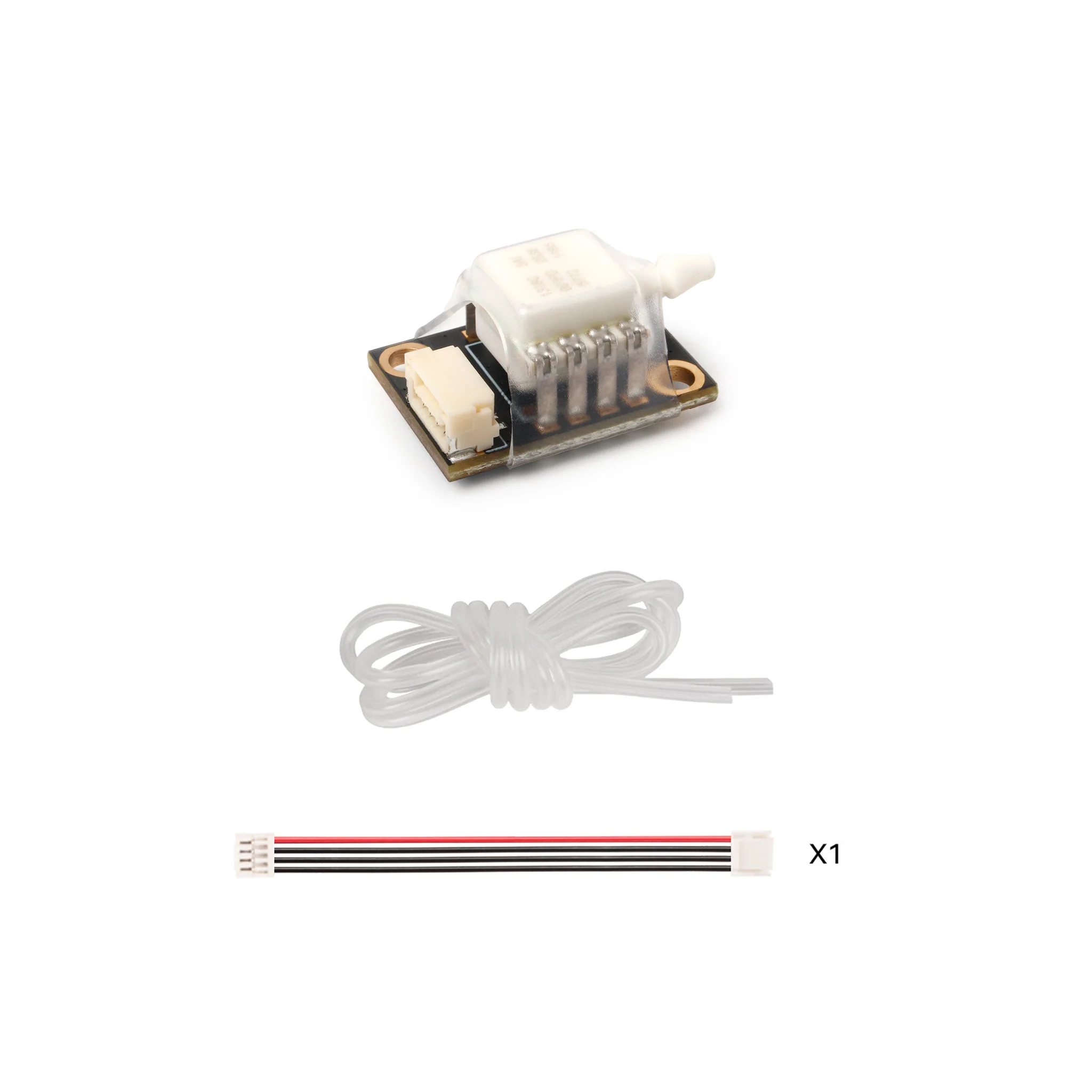

SKU 19007 & 19017 Package Includes:

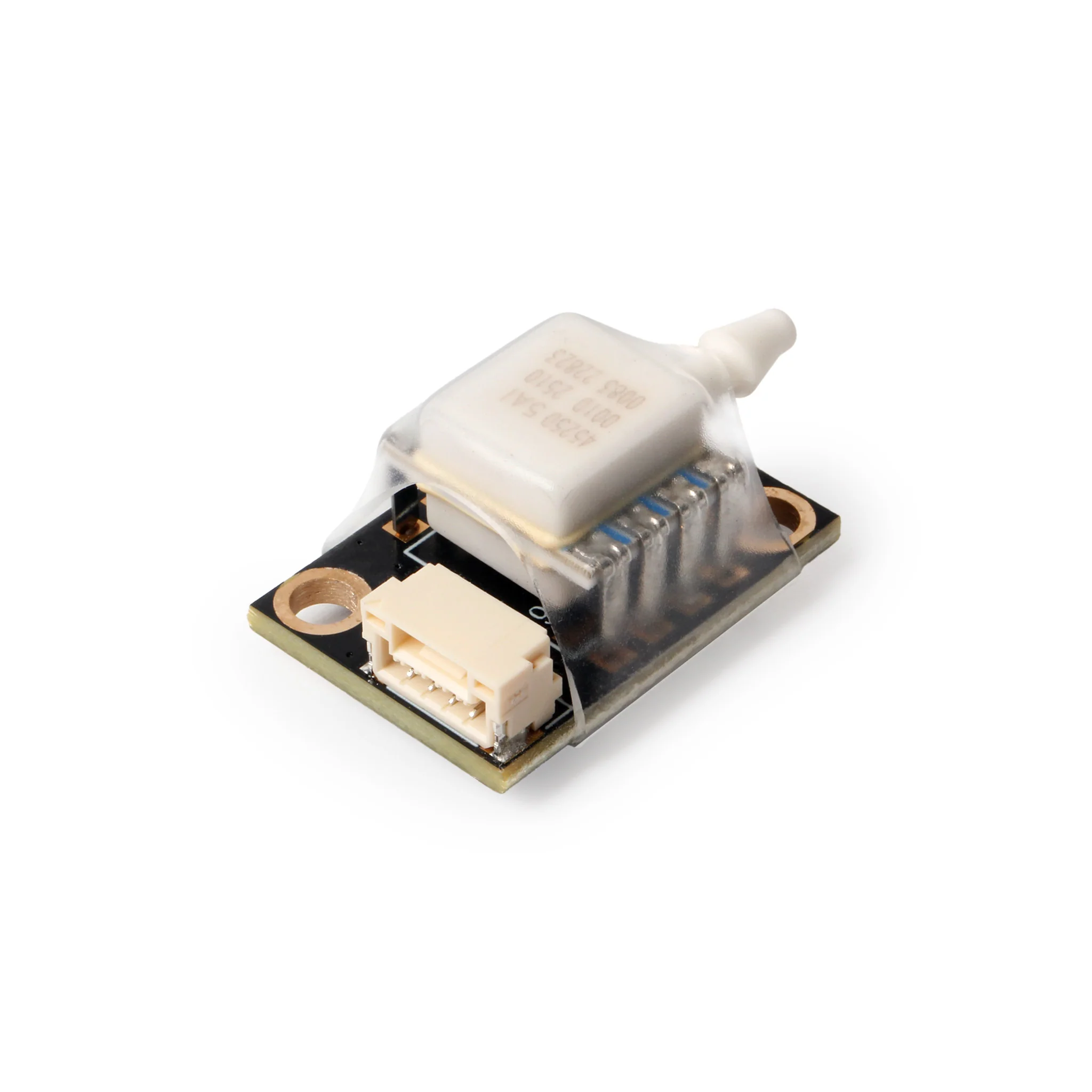

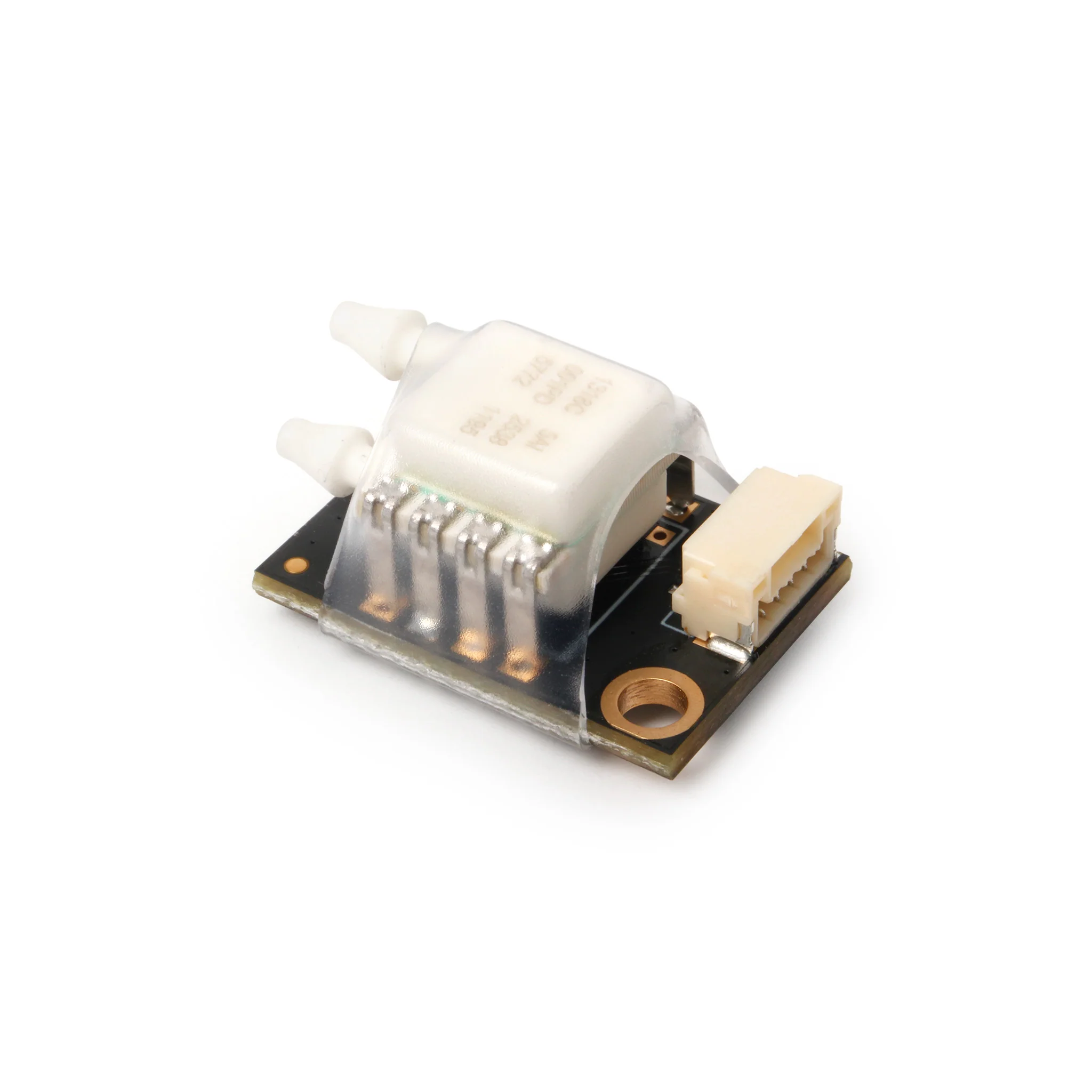

1x MS4525DO/AS1318C Digital Air Speed Sensor
1x Rubber Tubing 40cm
1x GH 4P Cable

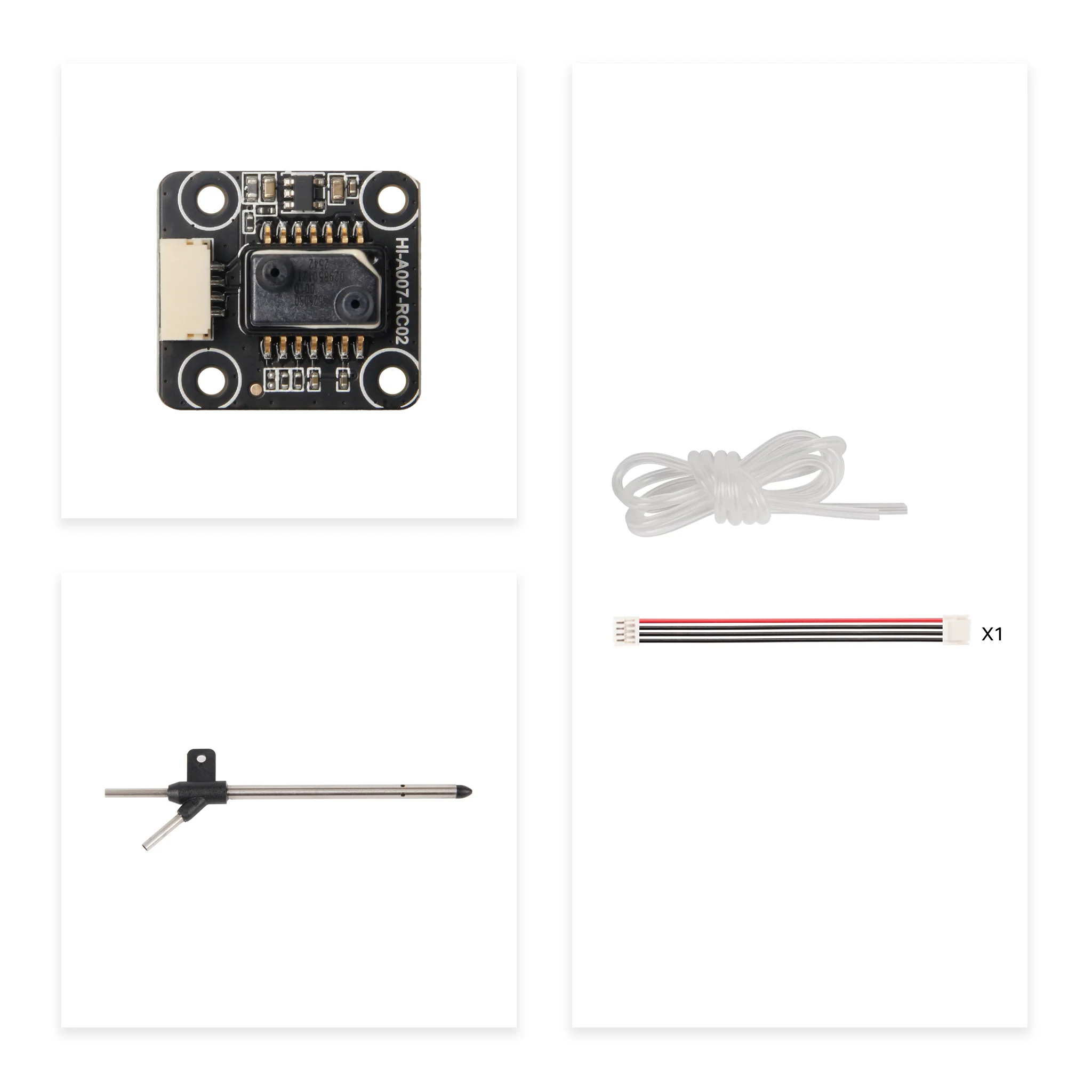

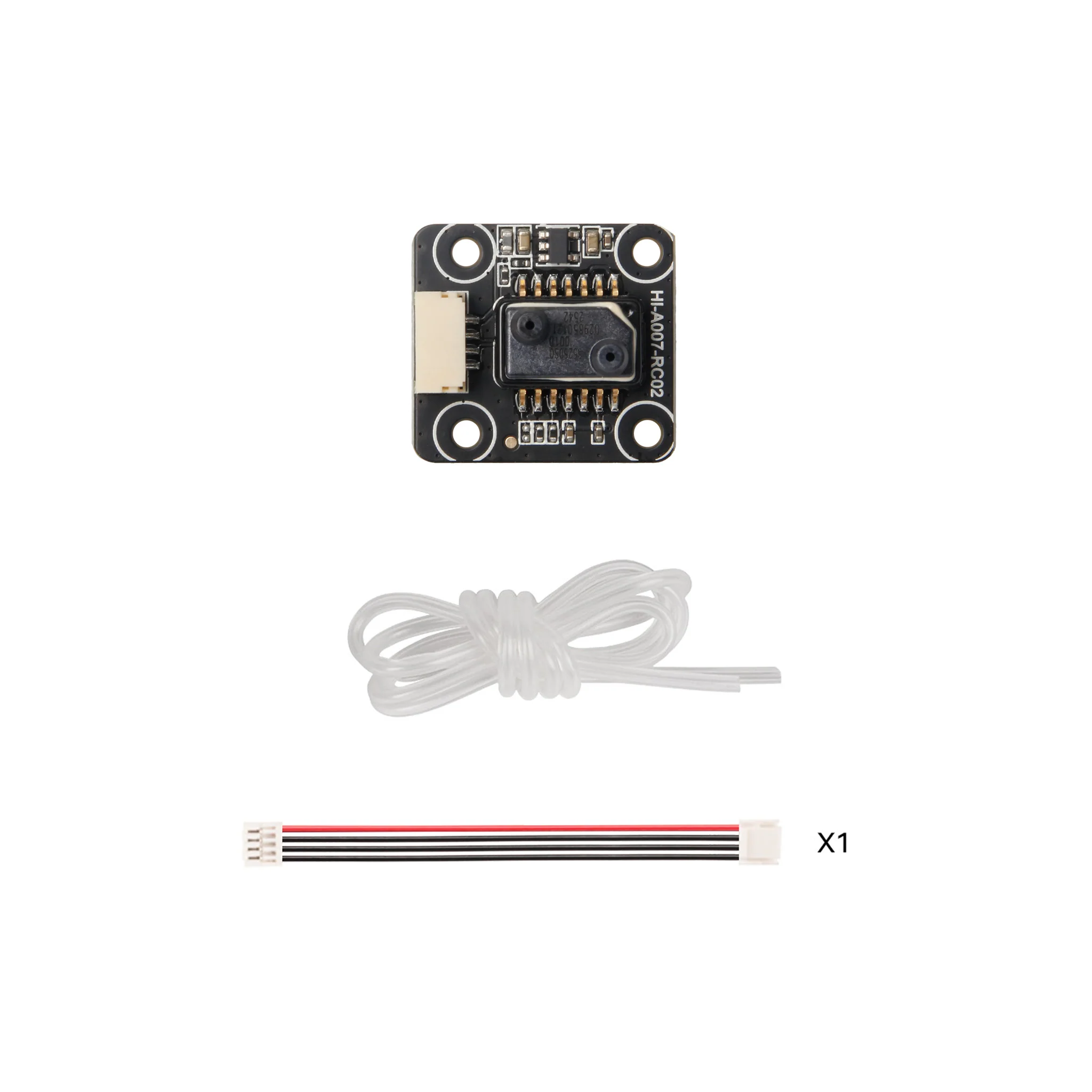

SKU 19009 Package Includes:

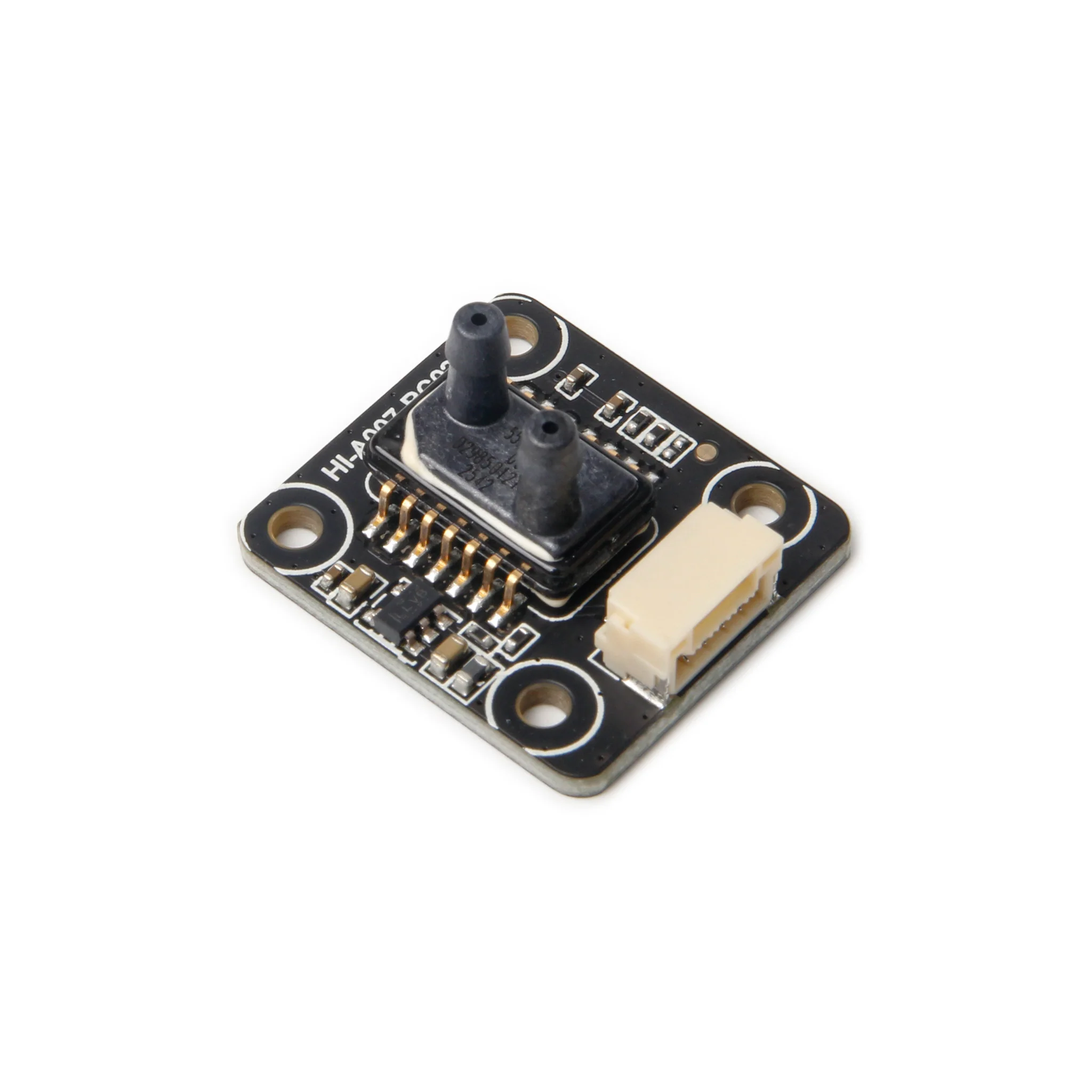

1x MS5525DSO Digital Air Speed Sensor
1x Rubber Tubing 100cm
1x GH 4P Cable

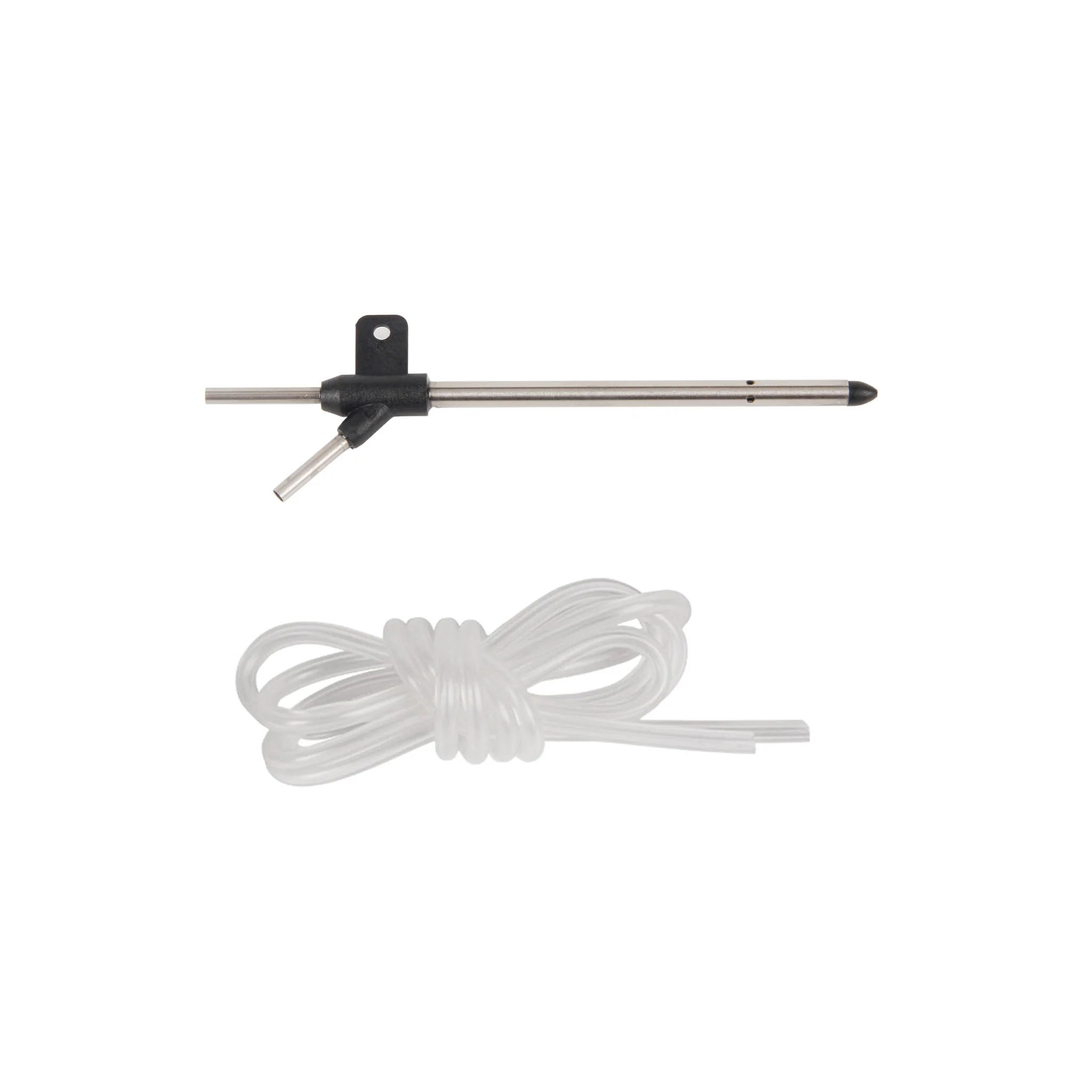

SKU 32022 Package Includes:

1x PT40 Pitot Tube
1x Rubber Tubing 40cm

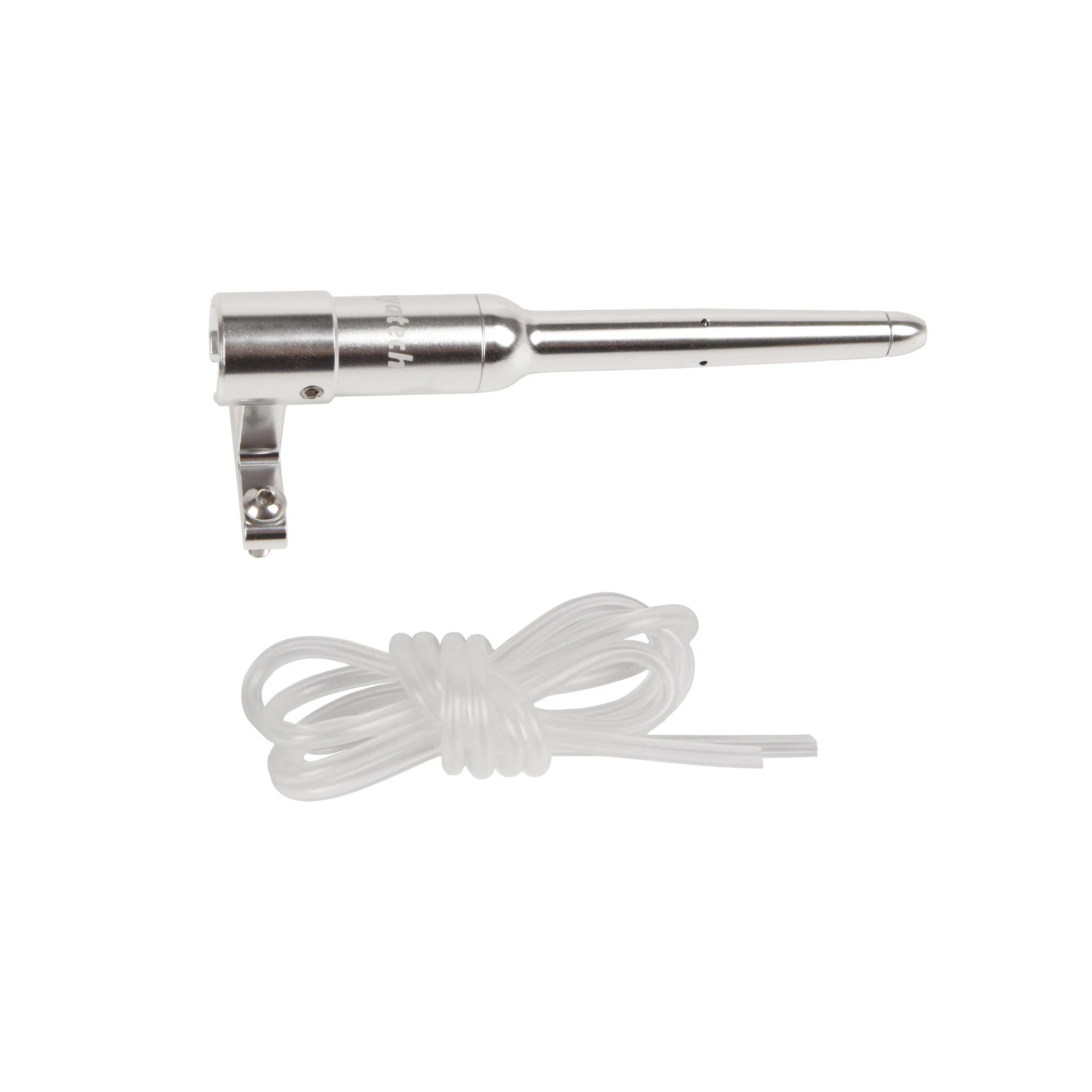

SKU 32023 Package Includes:

1x PT60 Pitot Tube
1x Rubber Tubing 100cm

Datasheet:

• MS4525 Datasheet
• AS1318C Datasheet
• MS5525 Datasheet
