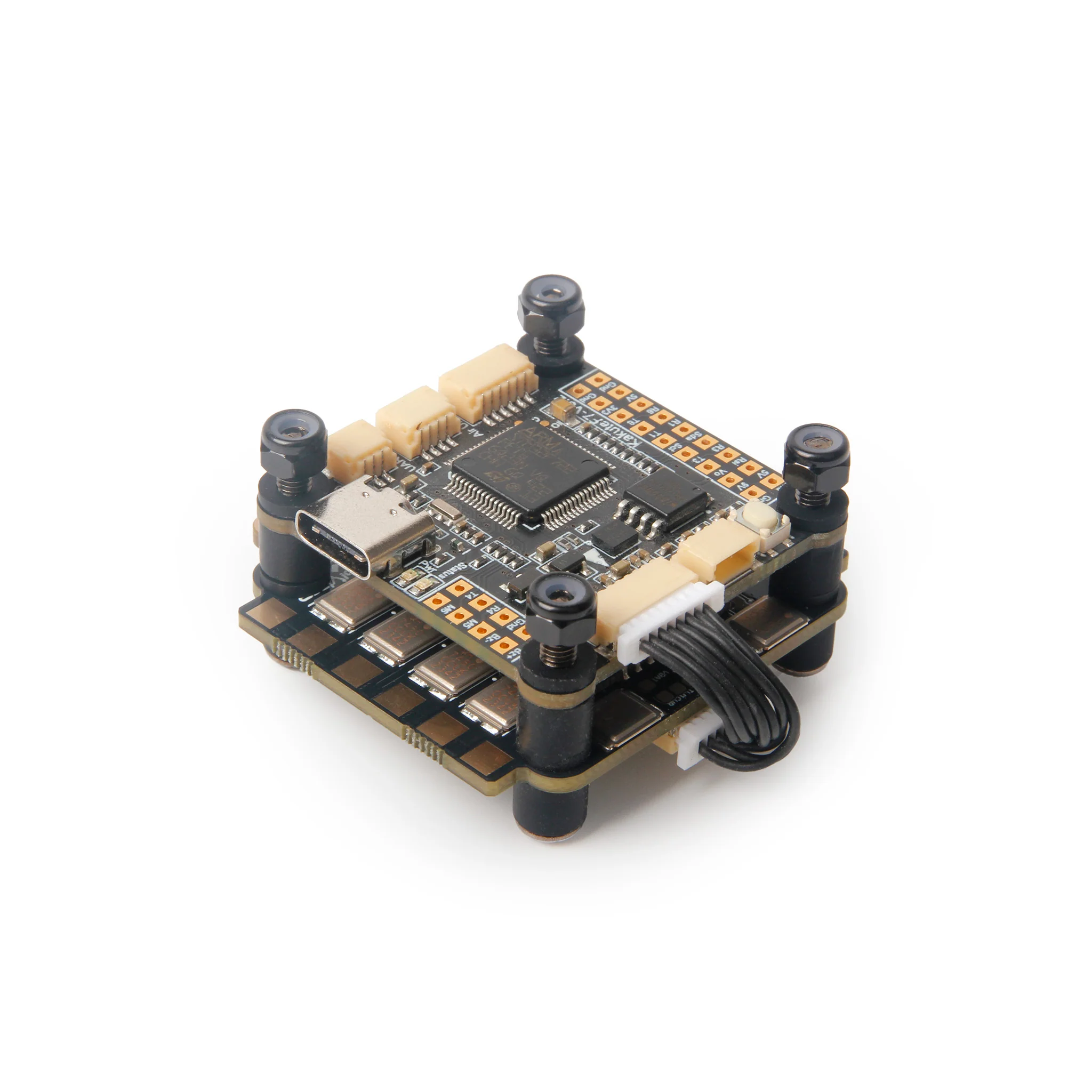

Kakute F722 Stacks

Select FC:

Select ESC:

From $33.60

Original: $111.99

-70%

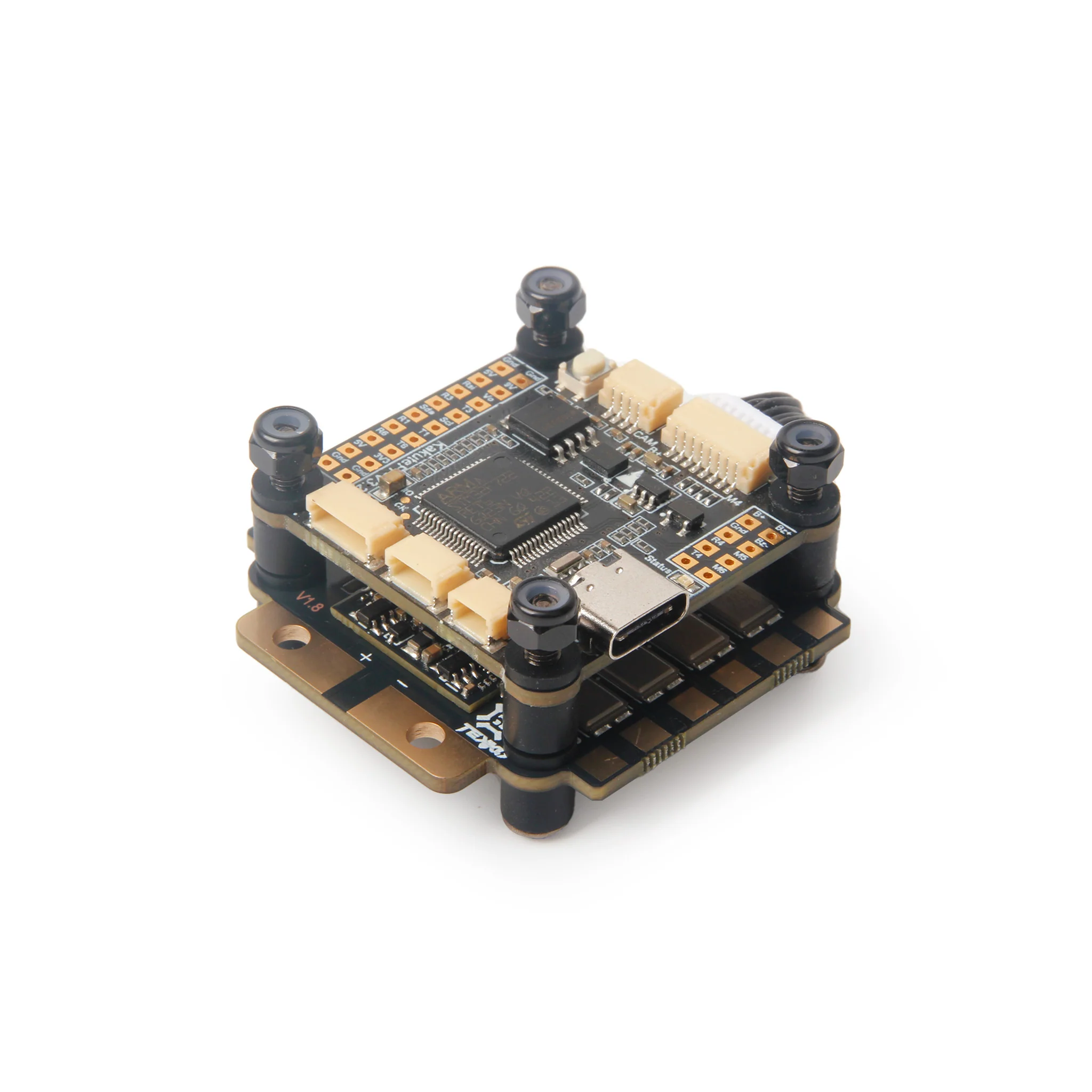

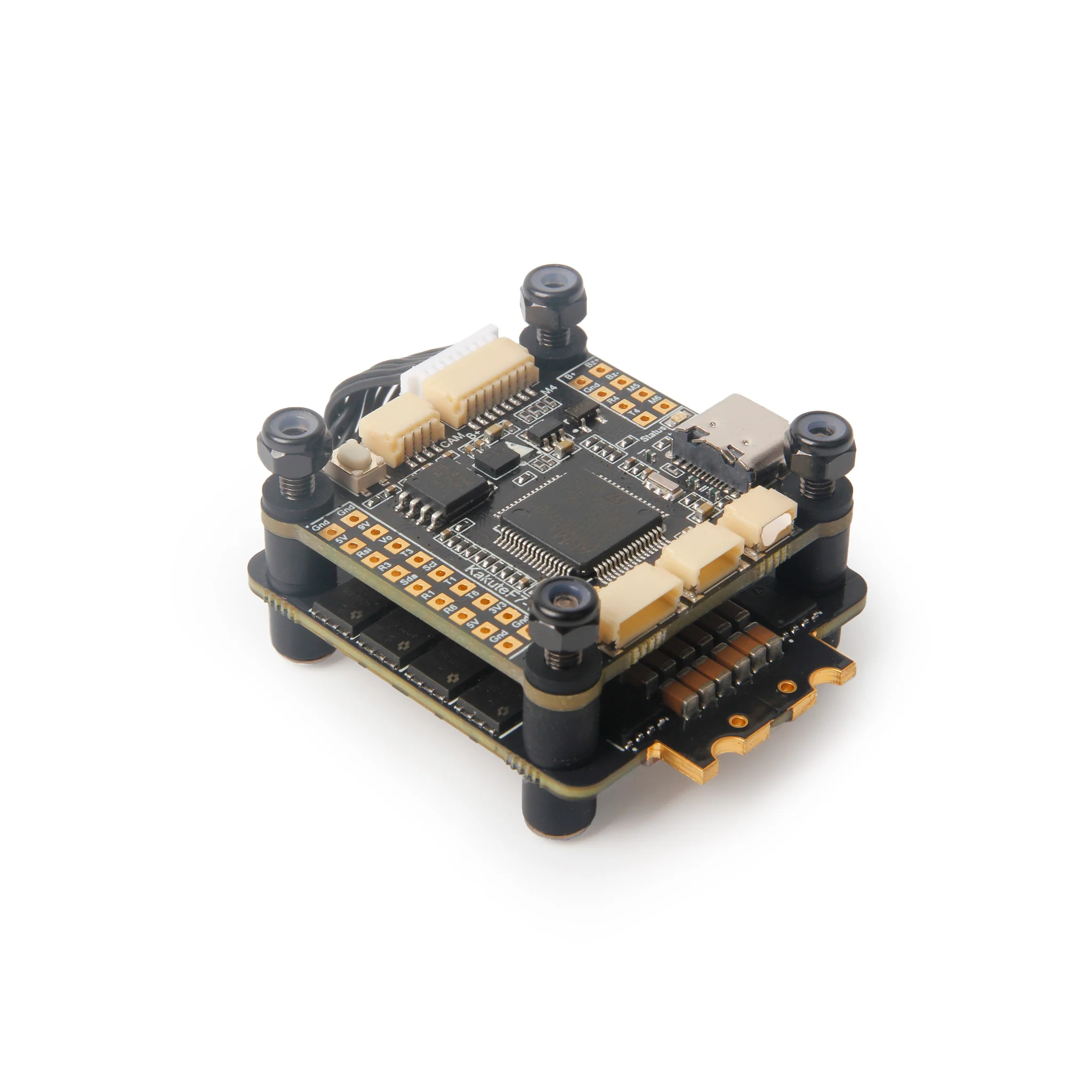

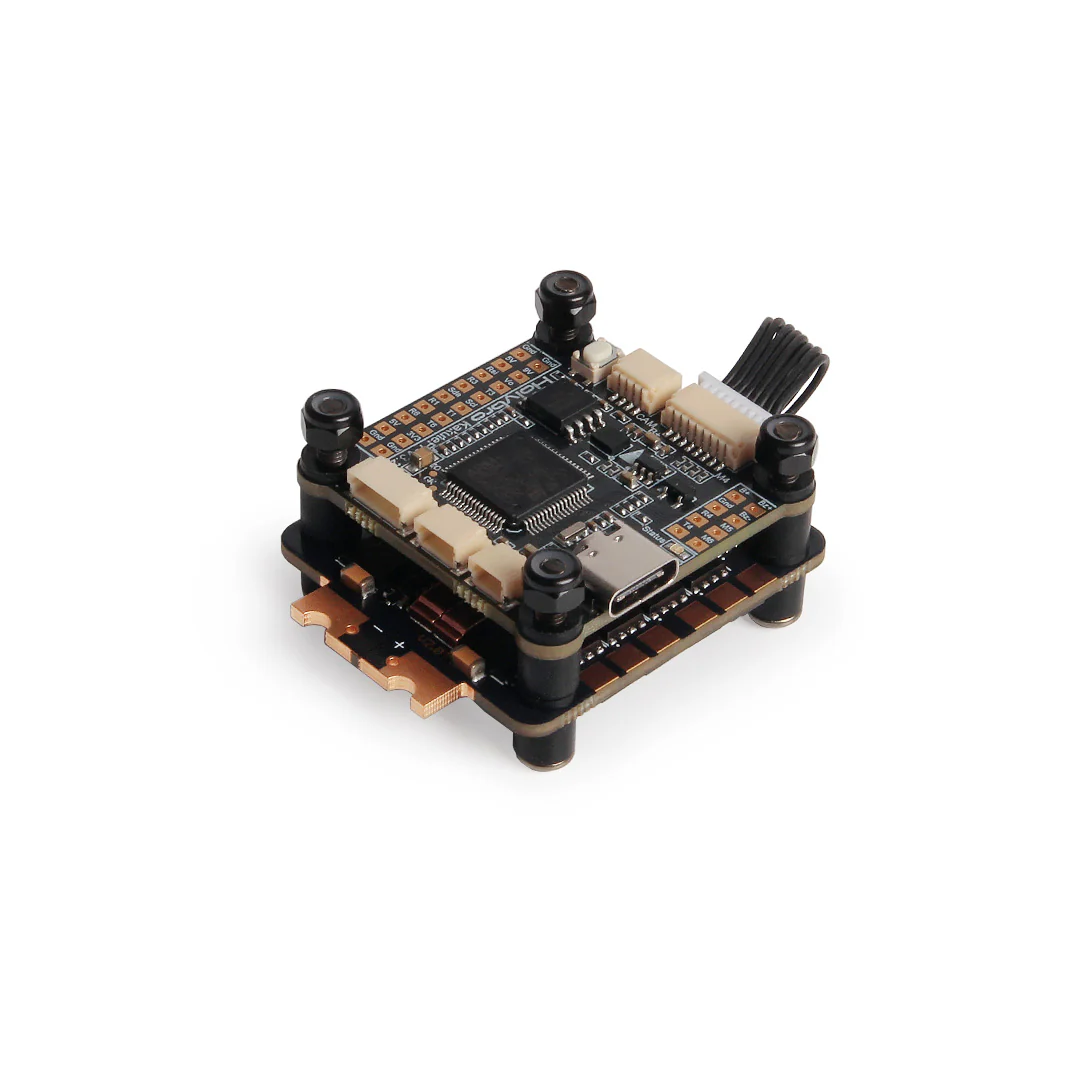

Kakute F722 Stacks—

$111.99

$33.60

Select FC:

Select ESC:

From $33.60

Original: $111.99

-70%

Kakute F722 Stacks—

$111.99

$33.60

The Story

Flight Controller

Kakute F722

Overview:

High-performance STM32 F722 MCU with speeds up to 216MHz.
ICM42688P gyroscope, independent low-noise power supply.
Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
Built-in analog video OSD, 16 Mbytes black box,
High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.

Specification:

MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
IMU: ICM42688-P (SPI)
Barometer: BMP280 (legacy) or SPA06
OSD: AT7456E
5x hardware UARTS (UART1,2,3,4,6)
7x PWM Outputs (6 Motor Output, 1 LED)
Onboard 16 Mbytes for Blackbox logging
Battery input voltage: 3S - 8S
BEC: 9V/3A, 5V/2A, 3.3V/0.2A
Connector
- 2x JST-SH 8pin port for ESC
- 1x JST-SH 6pin port for HD VTX
- 2x JST-SH 4pin port for Receiver & Analog Camera
- 1x JST-SH 3pin port for LED
USB Type -C
Dimensions: 35x35mm
Mounting Holes: Standard 30.5 x 30.5 mm
Weight: 8g

Firmware Targets

Betaflight Target: KAKUTEF7MINIV3
INAV Target: KAKUTEF7MINIV3

ESC

Tekko32 F4 4in1 50A ESC(AM32)

Fast F4 MCU @150Mhz / PWM output up to 96K / 4~6S / AM32 / 30x30

Features:

New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
PWM Frequency: 16k to 96k
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

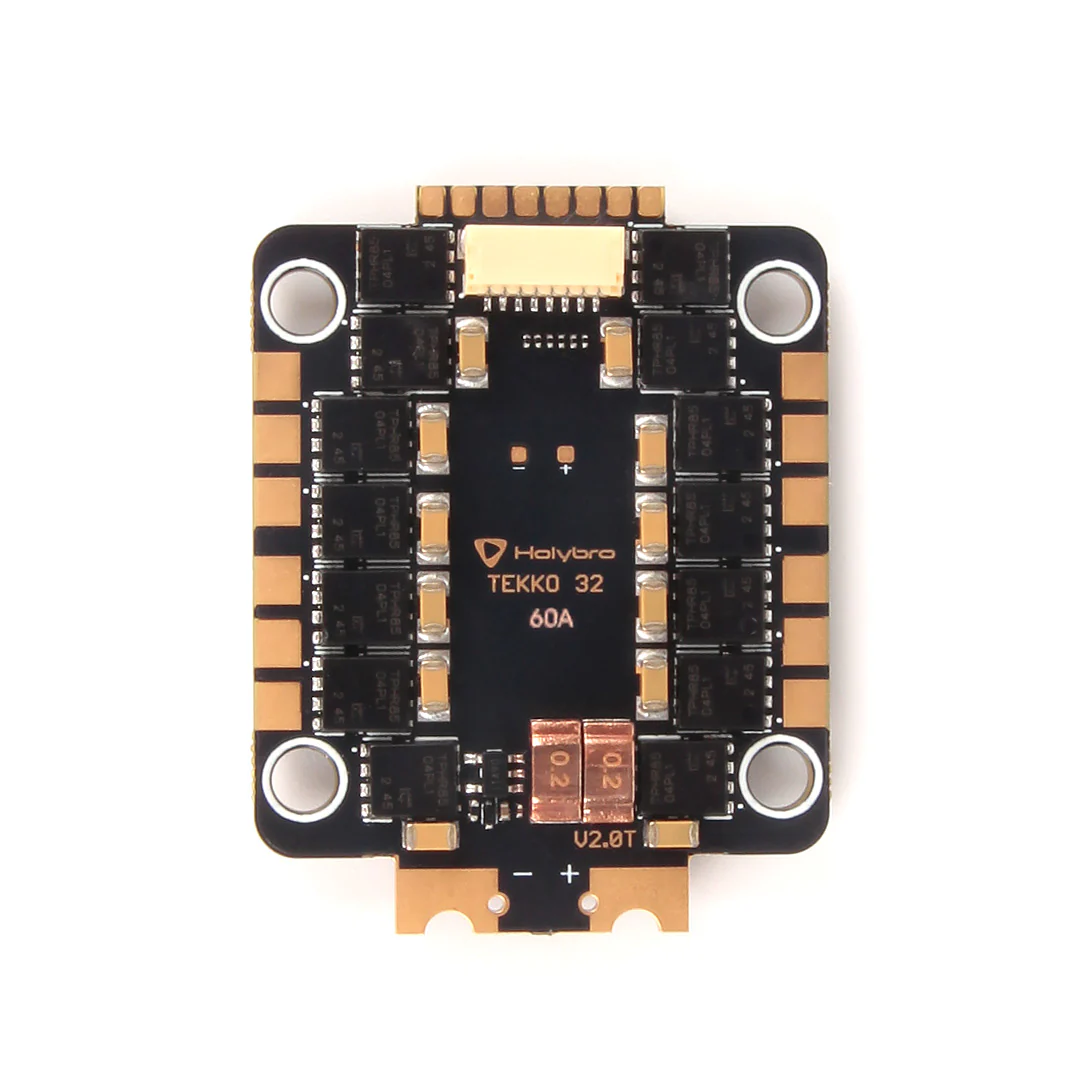

Tekko32 F4 4in1 60A ESC(AM32)

Fast F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30

Features:

New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
PWM Frequency: 16k to 96k
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Tekko32 F4 Metal 4in1 65A ESC(AM32)

F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output: 16k ~96k PWM / 4~6S / AM32
Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response.

Features:

New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
PWM Frequency: 16k to 96k
Metal-cased MOSFET for excellent heat dissipation
Massive on-board capacitance for noise filtering at 2068uf
3 oz copper PCB design to allow bigger current and better heat dissipation
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

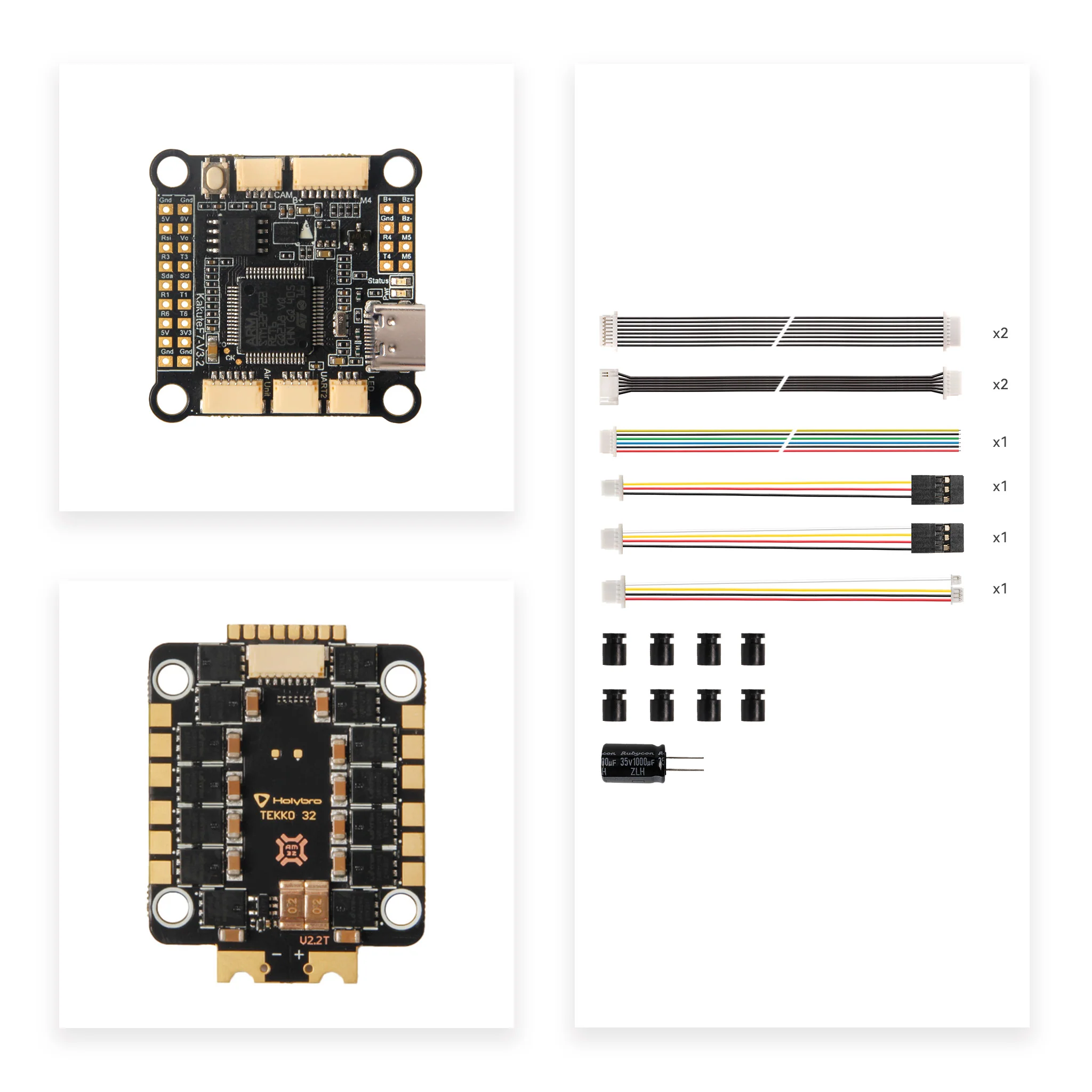

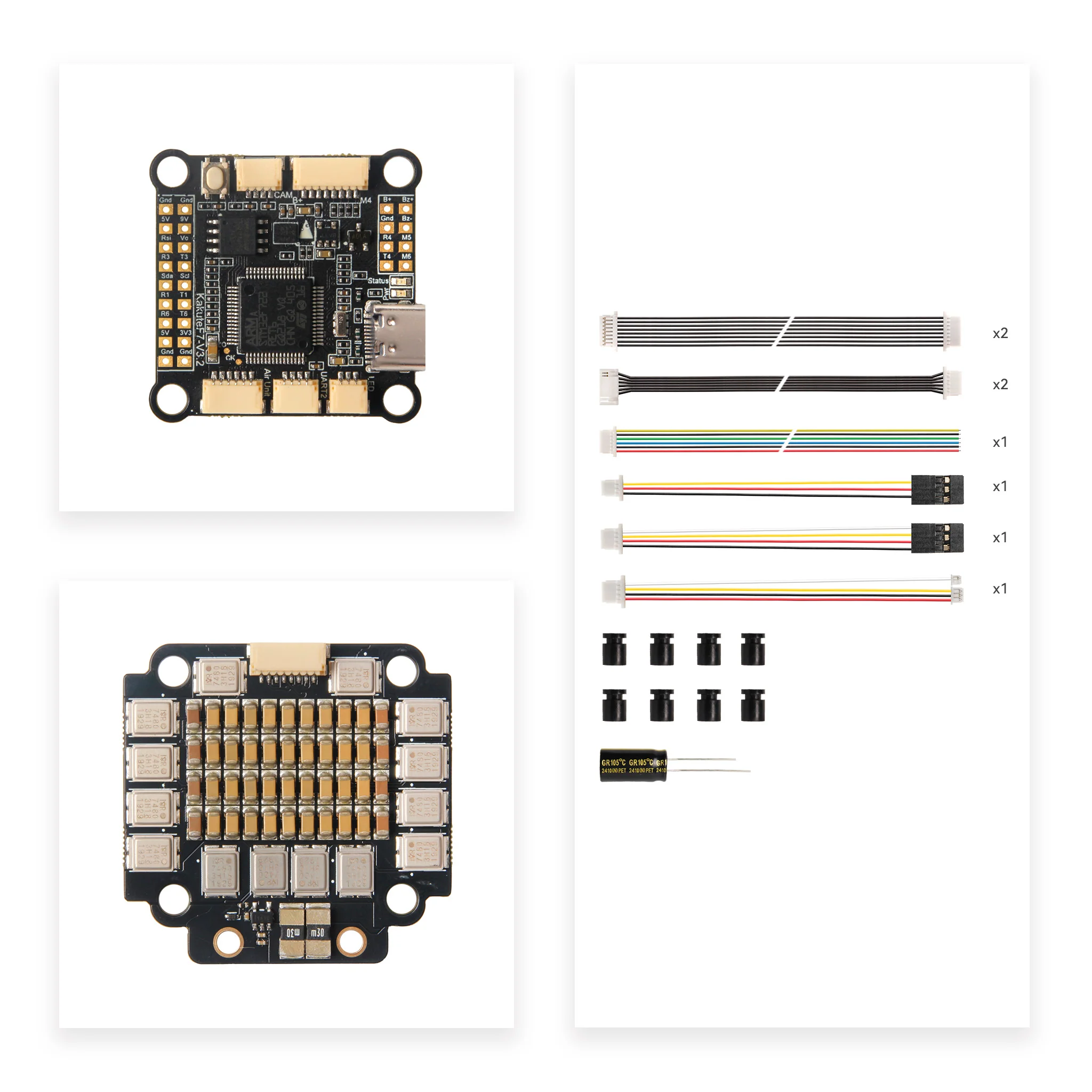

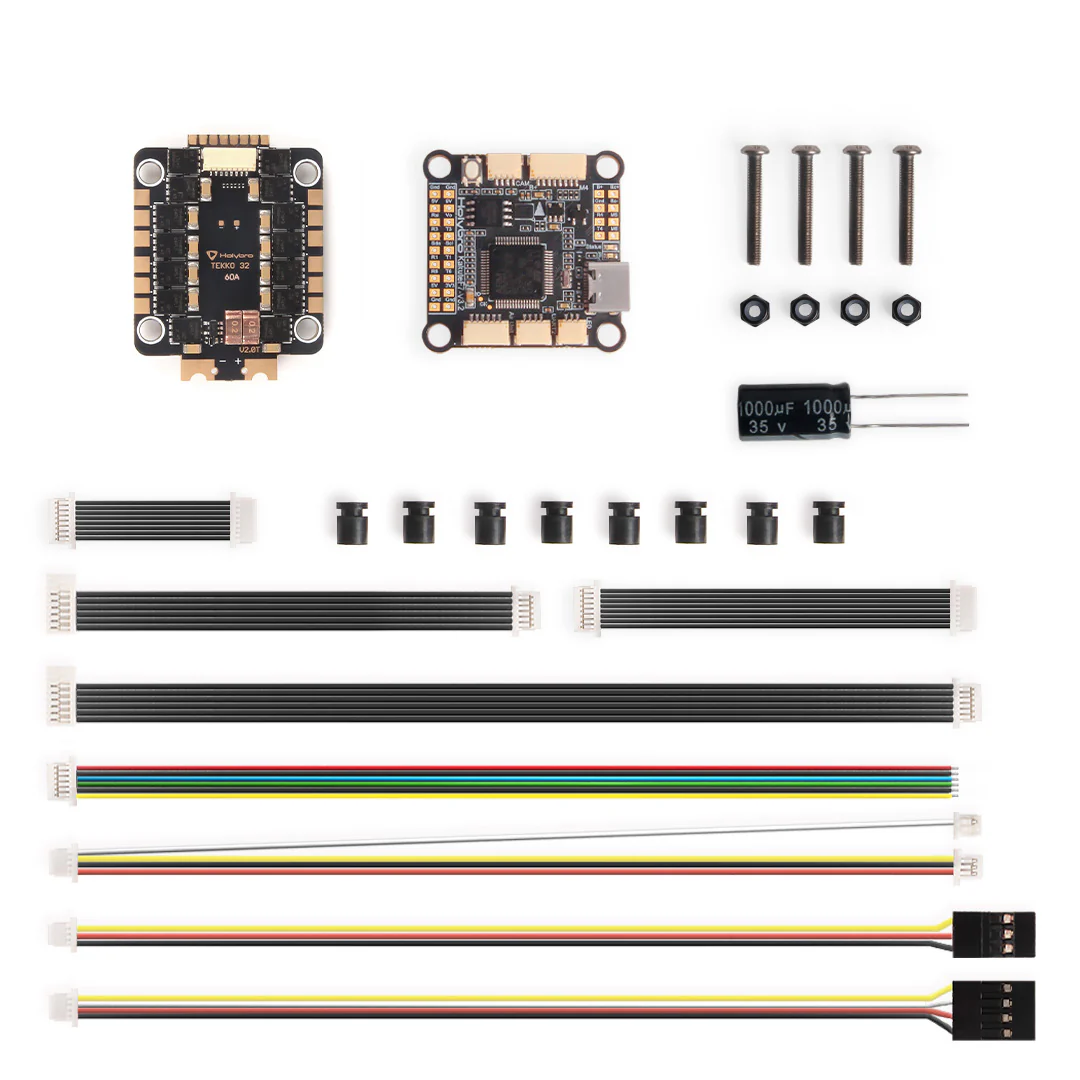

SKU20263, 20264,20265 Package Includes:

1x Kakute F722
1x Tekko32 F4 4in1 50A ESC/Tekko32 F4 4in1 60A ESC/Tekko32 F4 Metal 4in1 65A ESC
1x Electrolytic capacito: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
1x JST SH 6pin 100mm cable(for Caddx HD Systems)
