Original: $179.00
-70%$179.00
$53.70The Story
Updated:
1.FC:Kakute H7 V1.3
2.Digital HD Camera(HD version):Caddx Nebula Pro Vista Kit starlight Digital HD FPV system
3.ESC:Tekko32 F4 4in1 mini 50A ESC
Specifications
- MCU - STM32H743 32-bit processor running at 480 MHz
- IMU - MPU6000
- Barometer - BMP280
- OSD - AT7456E
-
Onboard Bluetooth chip - ESP32-C3
- SpeedyBee IOS & Android App Compatible
- Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm) in Betaflight
- 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
- 9x PWM Outputs (8 Motor Output, 1 LED)
- 2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
- 1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
- Battery input voltage: 3S - 8S
- BEC 5V 2A Cont.
- BEC 9V 3A Cont
- USB Type-C
- Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
- Dimension - 35x35mm
- Weight - 8g
- F4 MCU with BLHELI32 firmware
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Battery Supports: 4-6S
- PWM Frequency: 16k to 96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimension: 32 x 40 mm

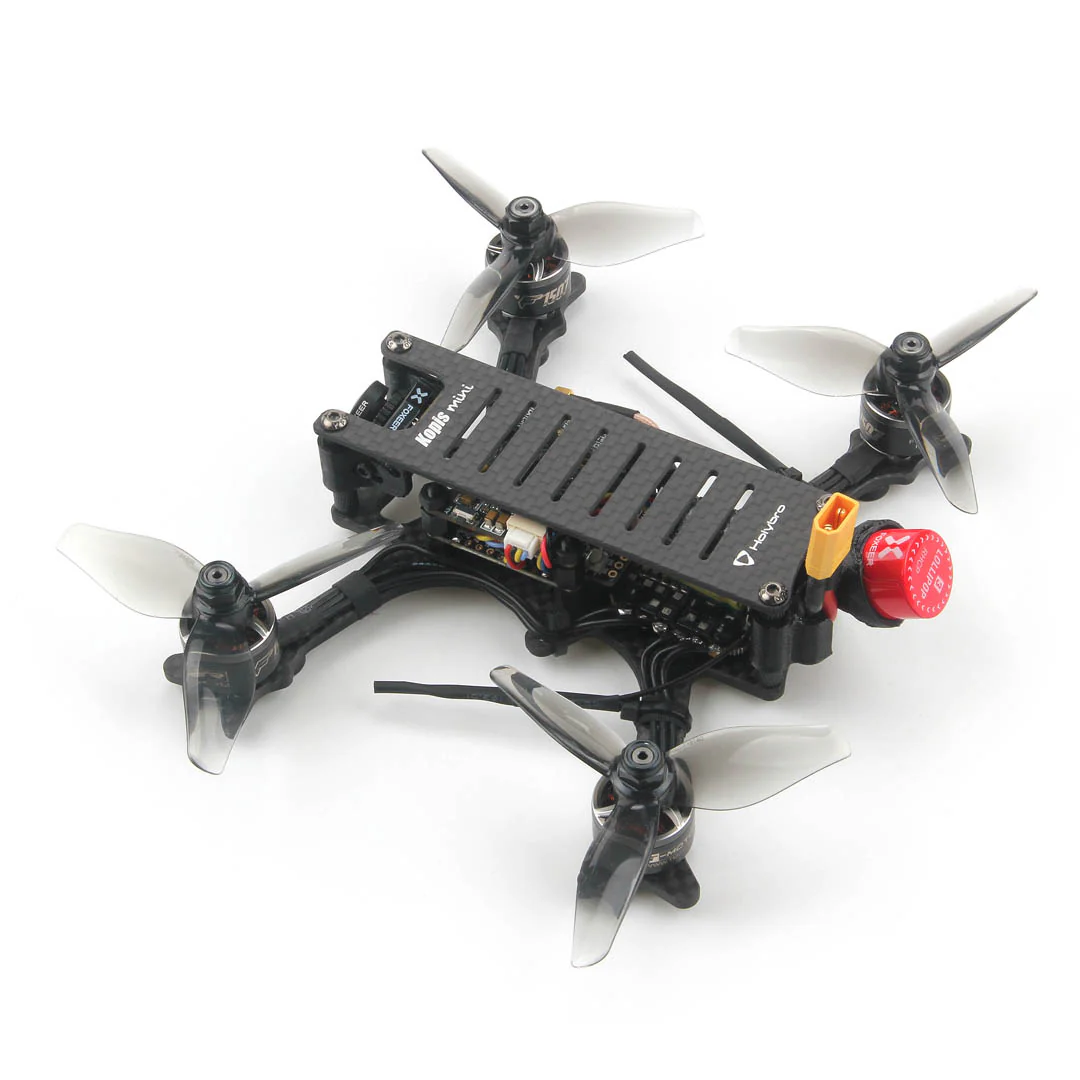

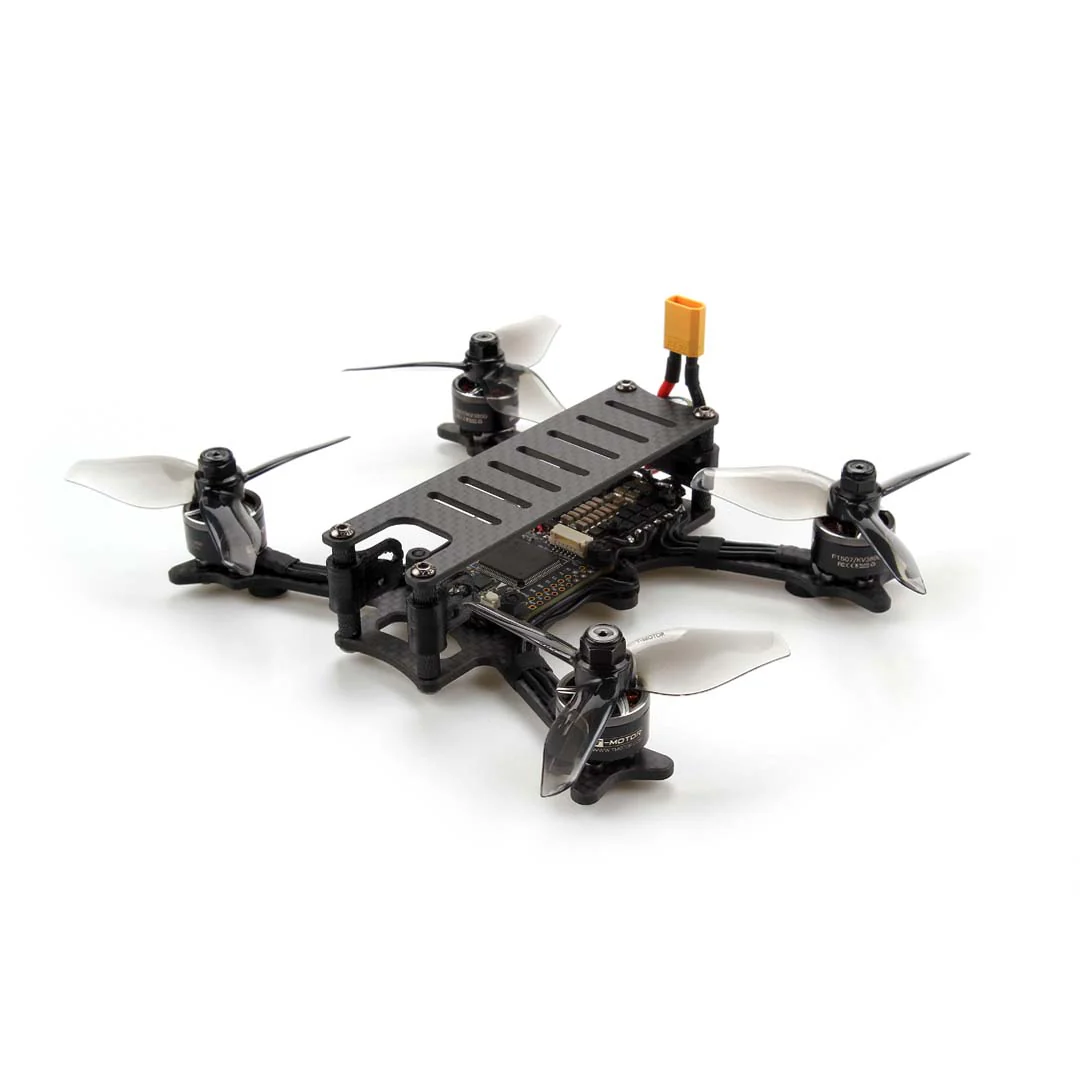

Kopis mini 3"(HD version) #30114,#30127
Features
-
Frame:3mm 3k carbon fiber
-
Flight Controller:Kakute H7
-
ESC:Tekko32 F4 4in1 45A mini ESC
-
VTx:Caddx Nebula Pro Vista Kit Digital HD FPV system(Optional)
-
Motor：F1507 KV3800(Standard)
-
Propeller：T3140
-
Buzzer included.
-
Battery plug: XT30
-
Wheelbase: 148.6mm
-
Weight:198g（included CADDX Vista）
-
Recommend battery: 650mah~1300mah 4s
Includes:
-
1x Kopis mini FPV racing drone
-
Caddx Nebula Pro Vista Kit Digital HD FPV system (optional)
-
4x T3140 Propeller
-
1x Carying case
-
1x Battery strap(installed)

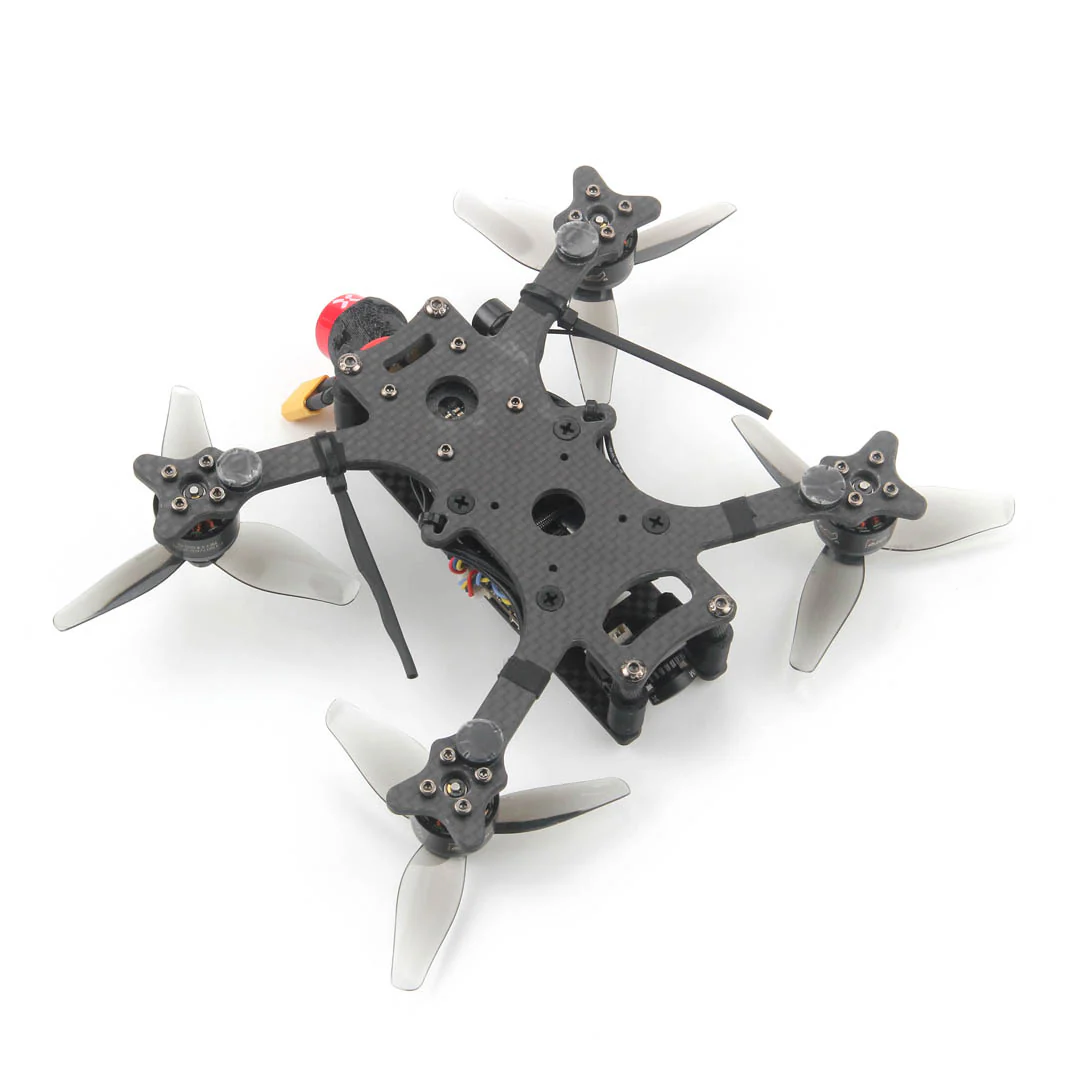

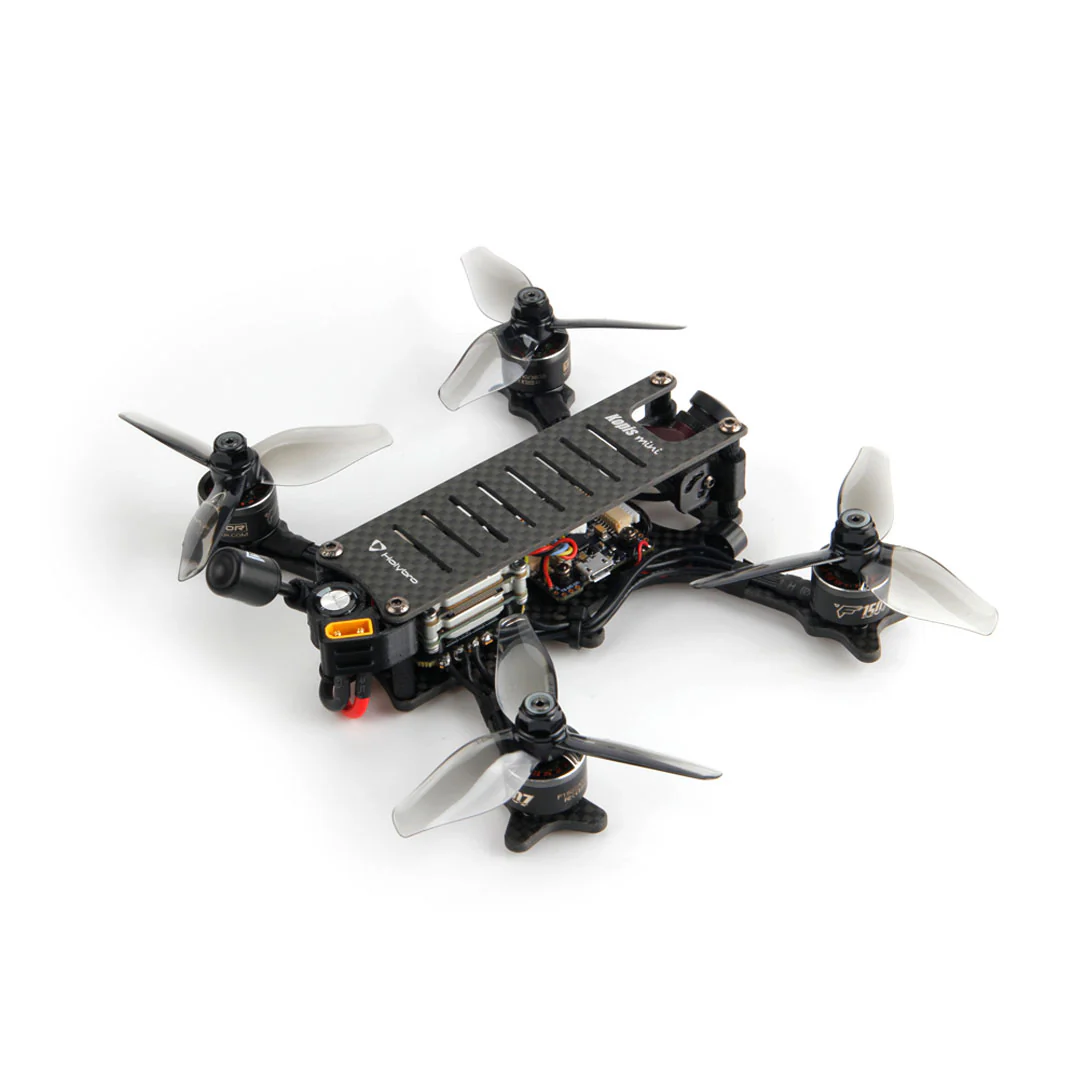

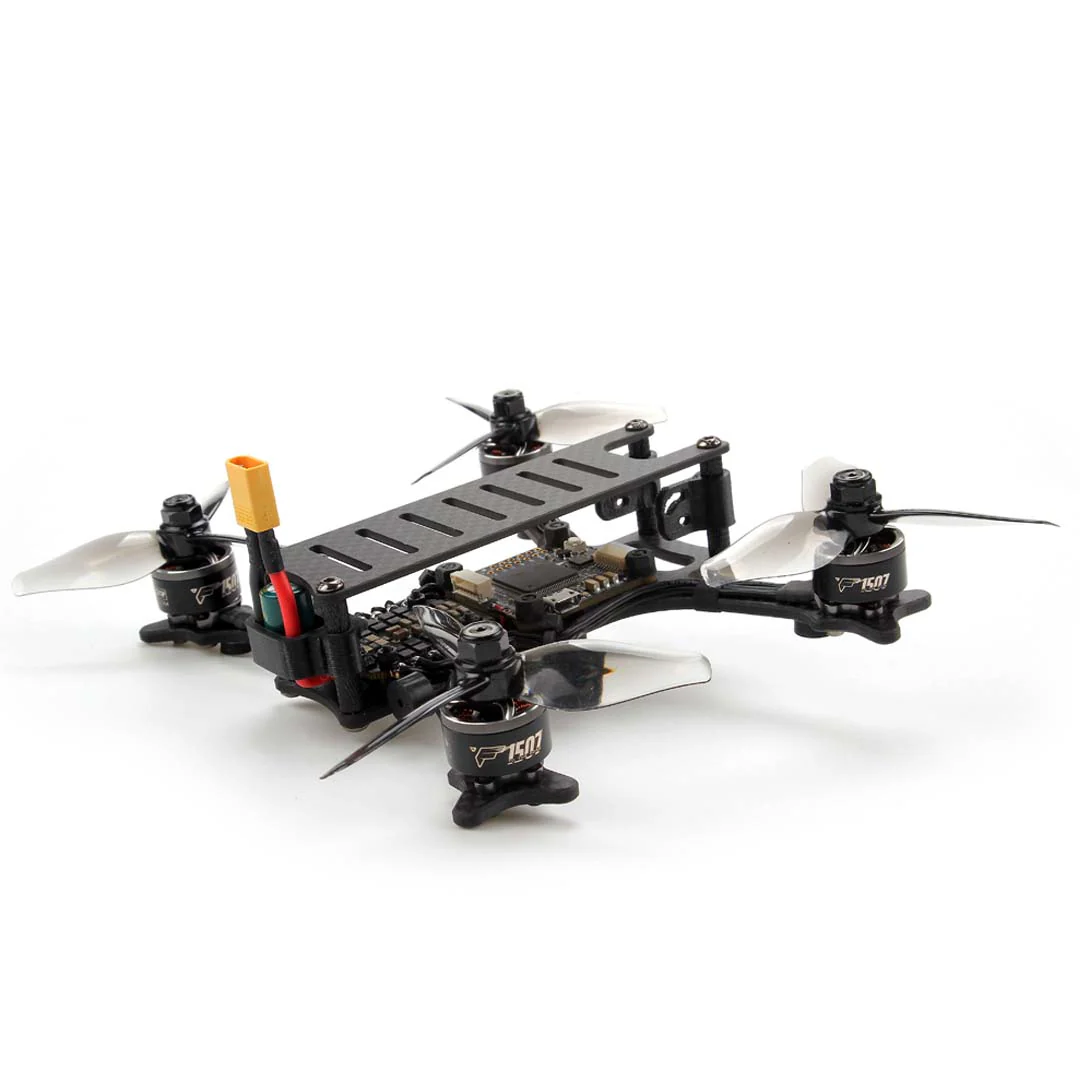

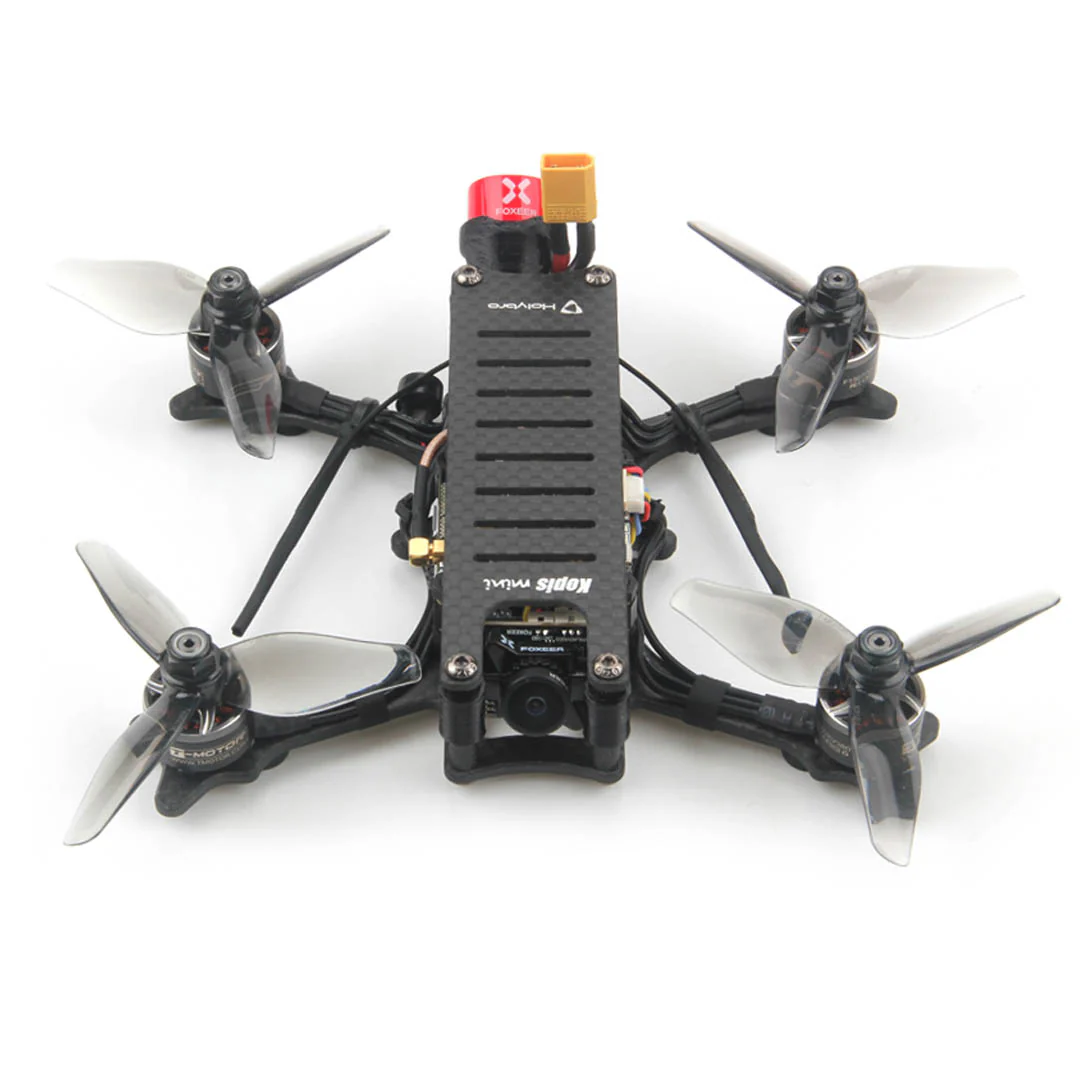

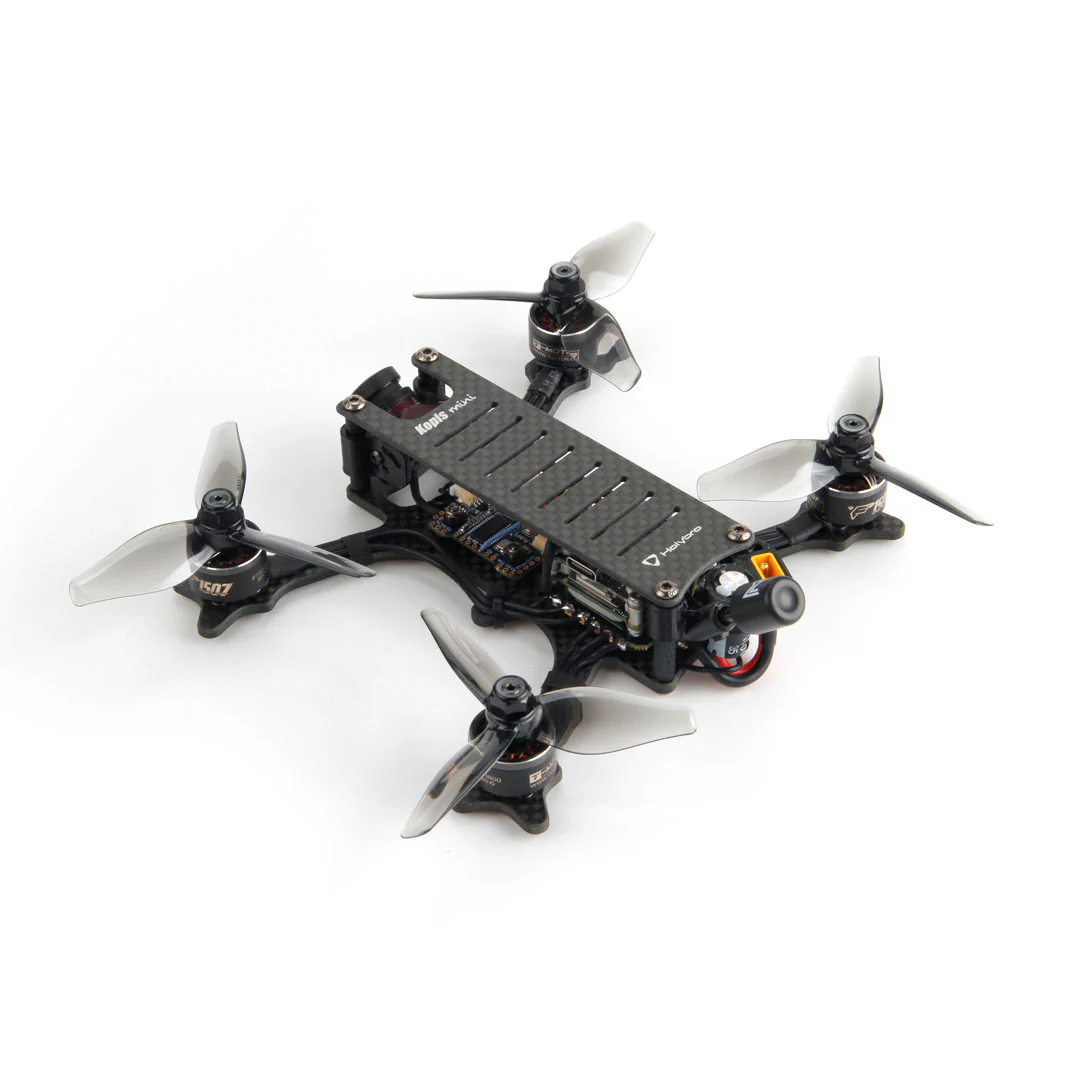

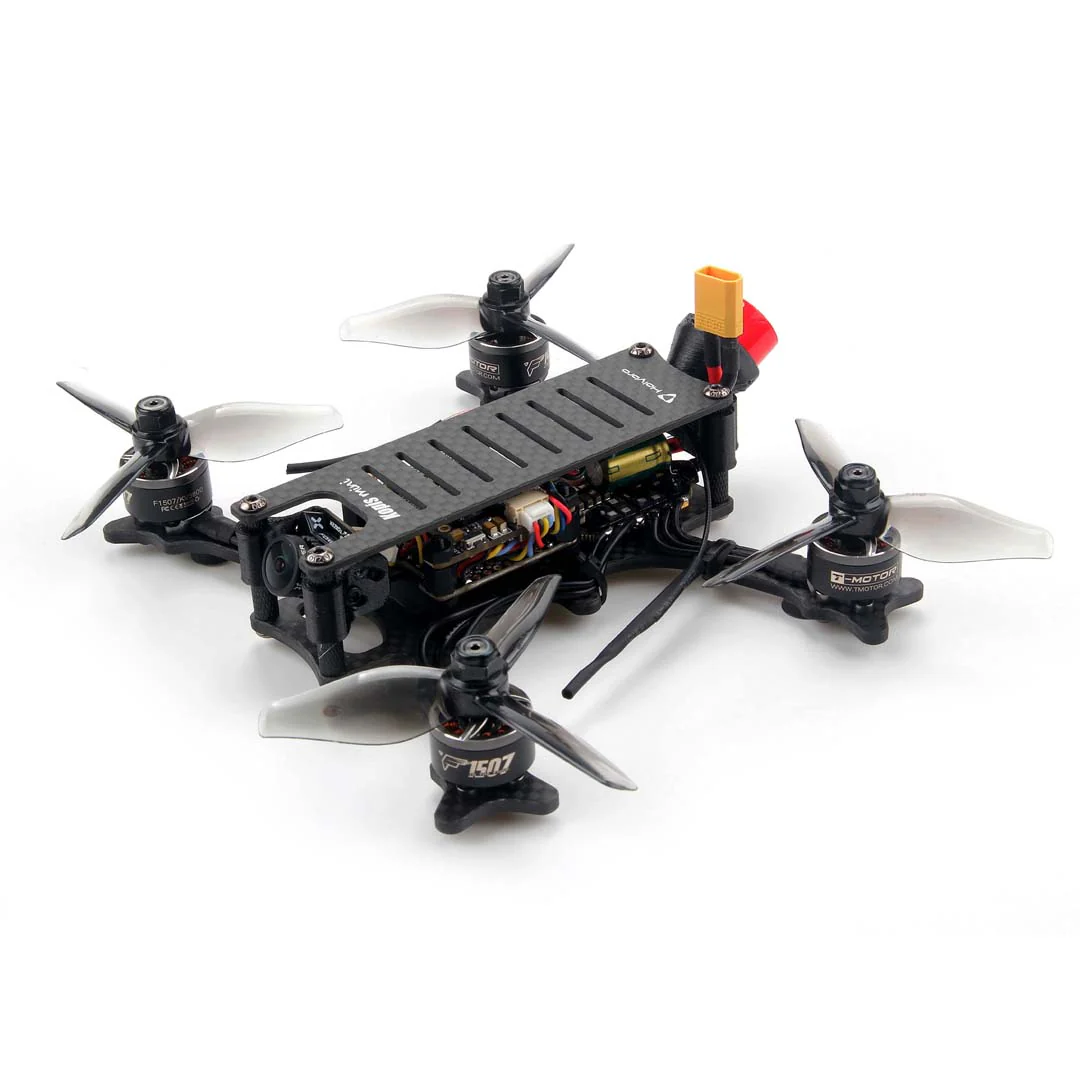

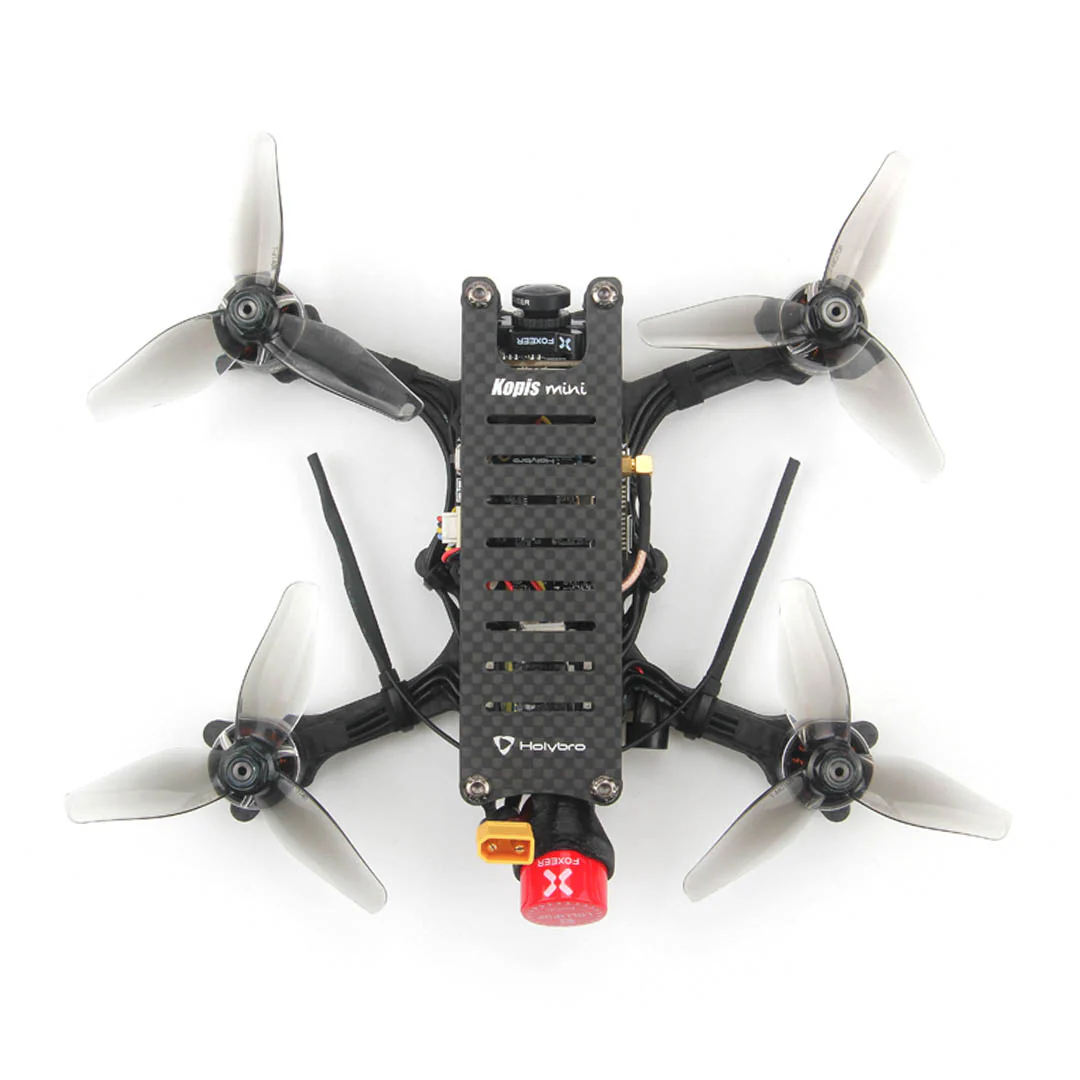

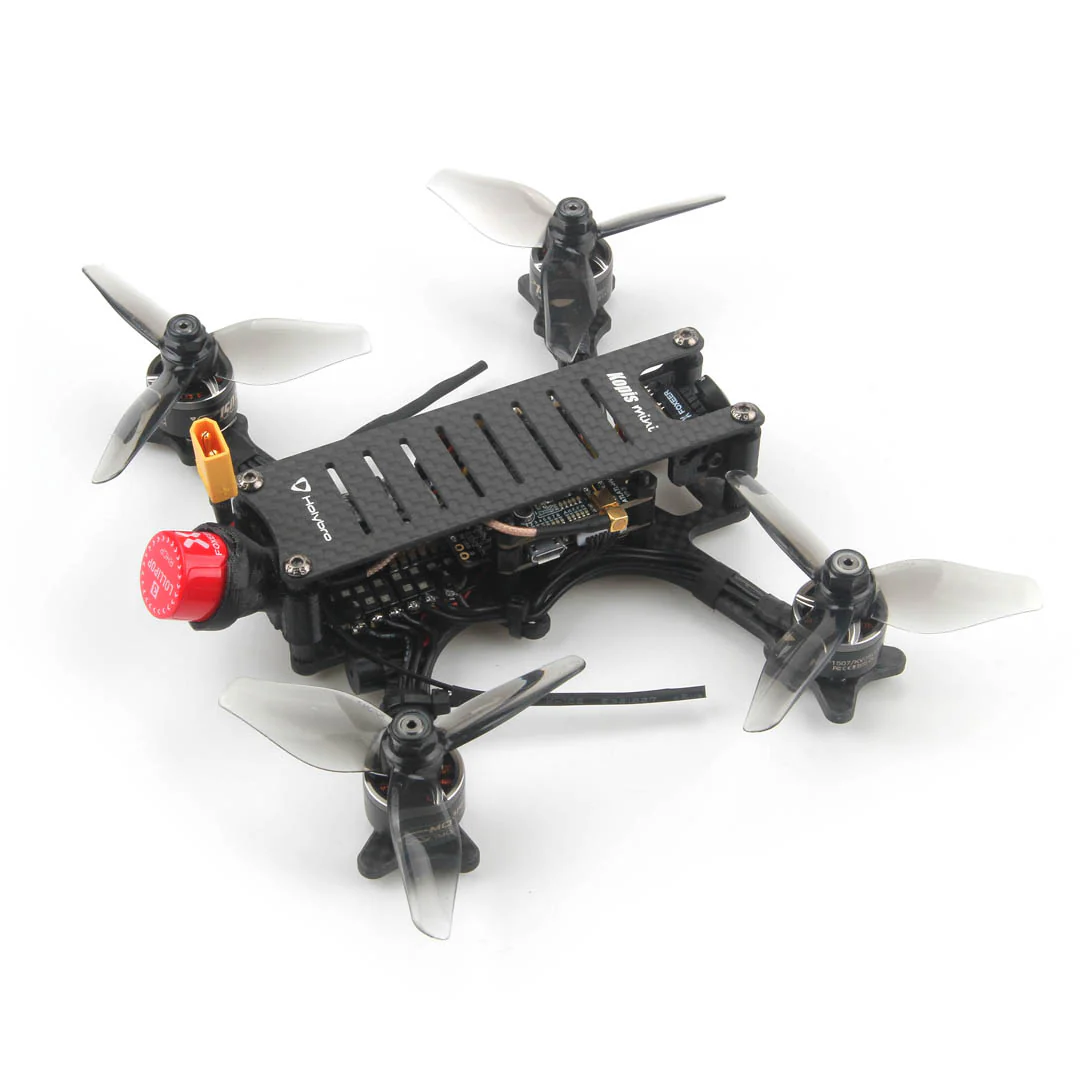

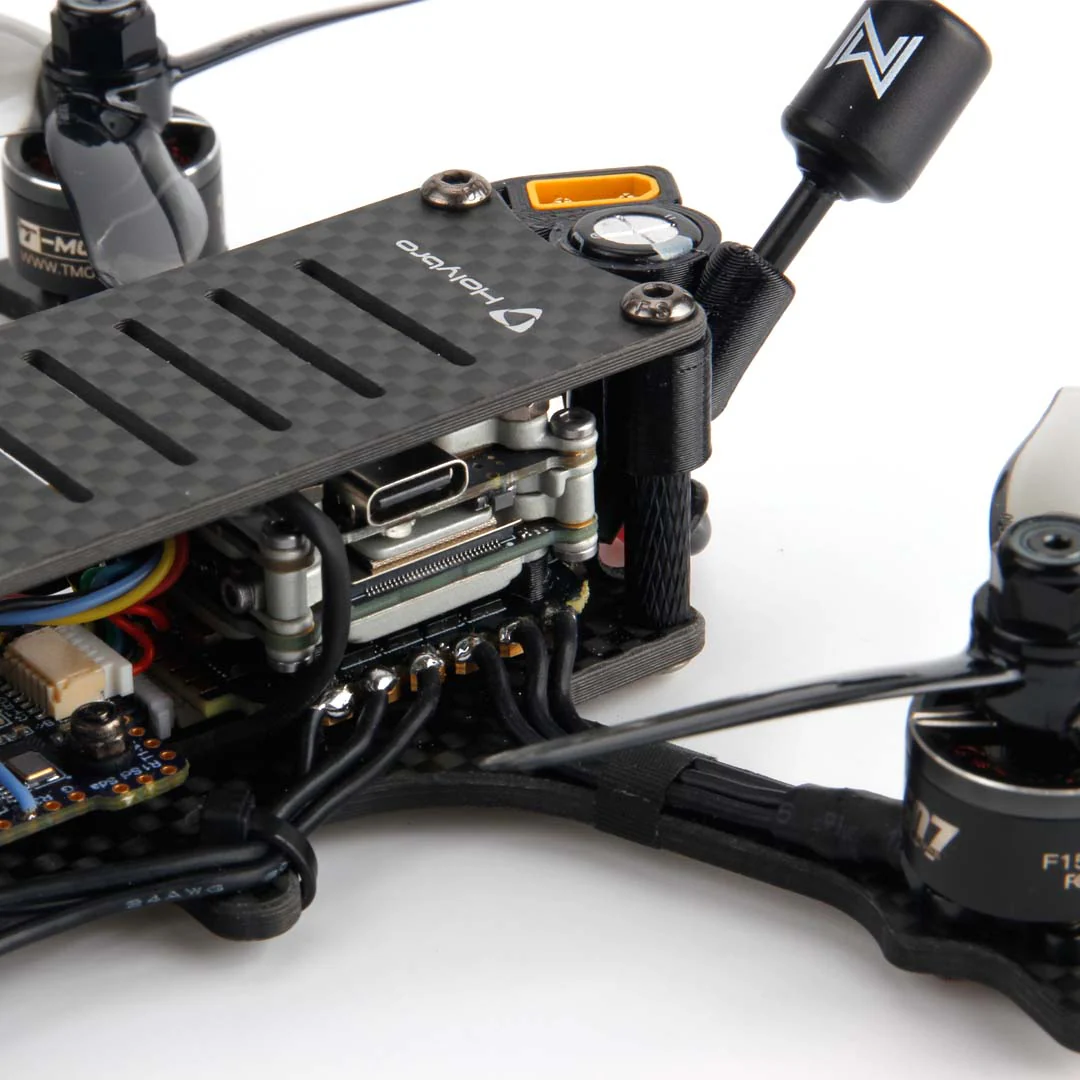

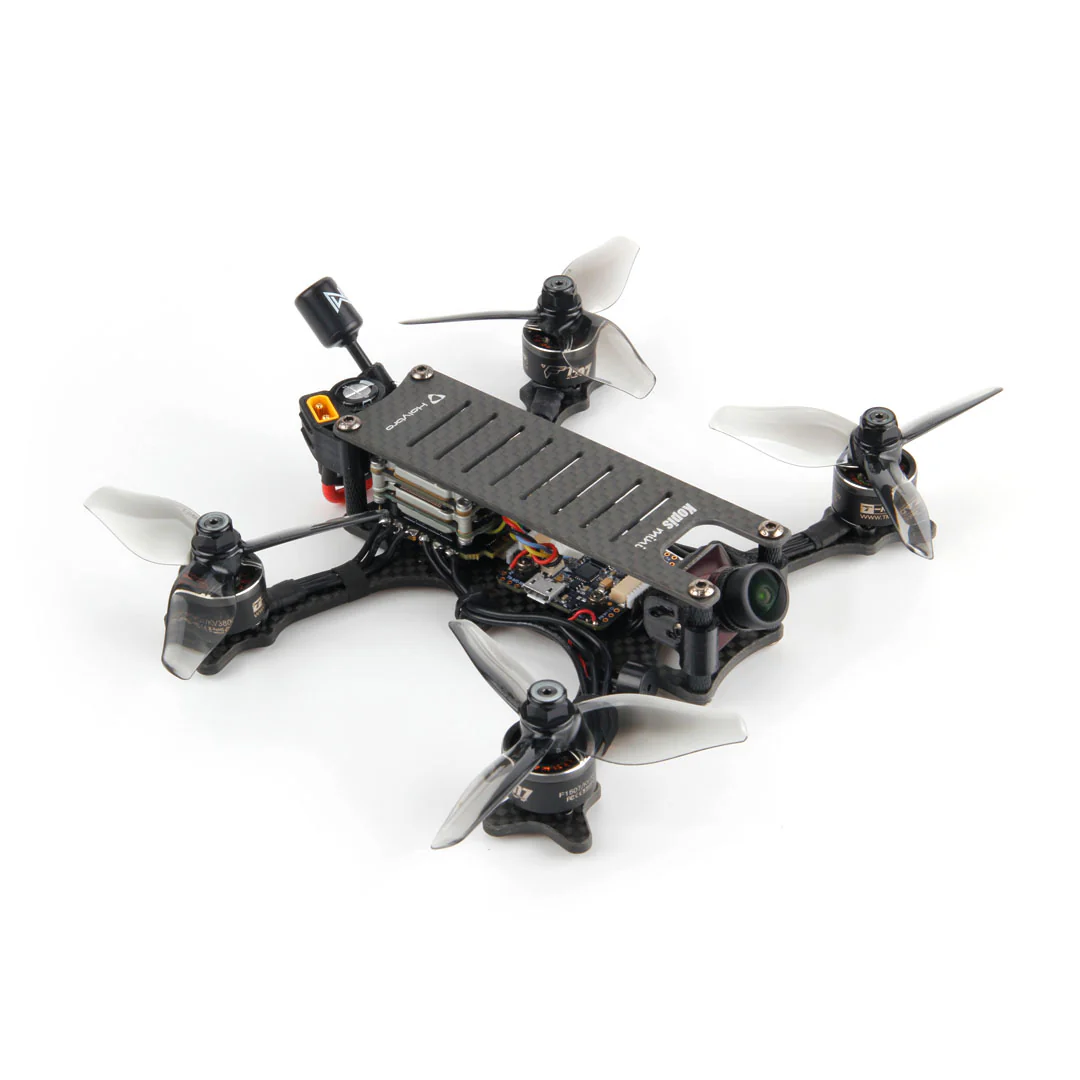

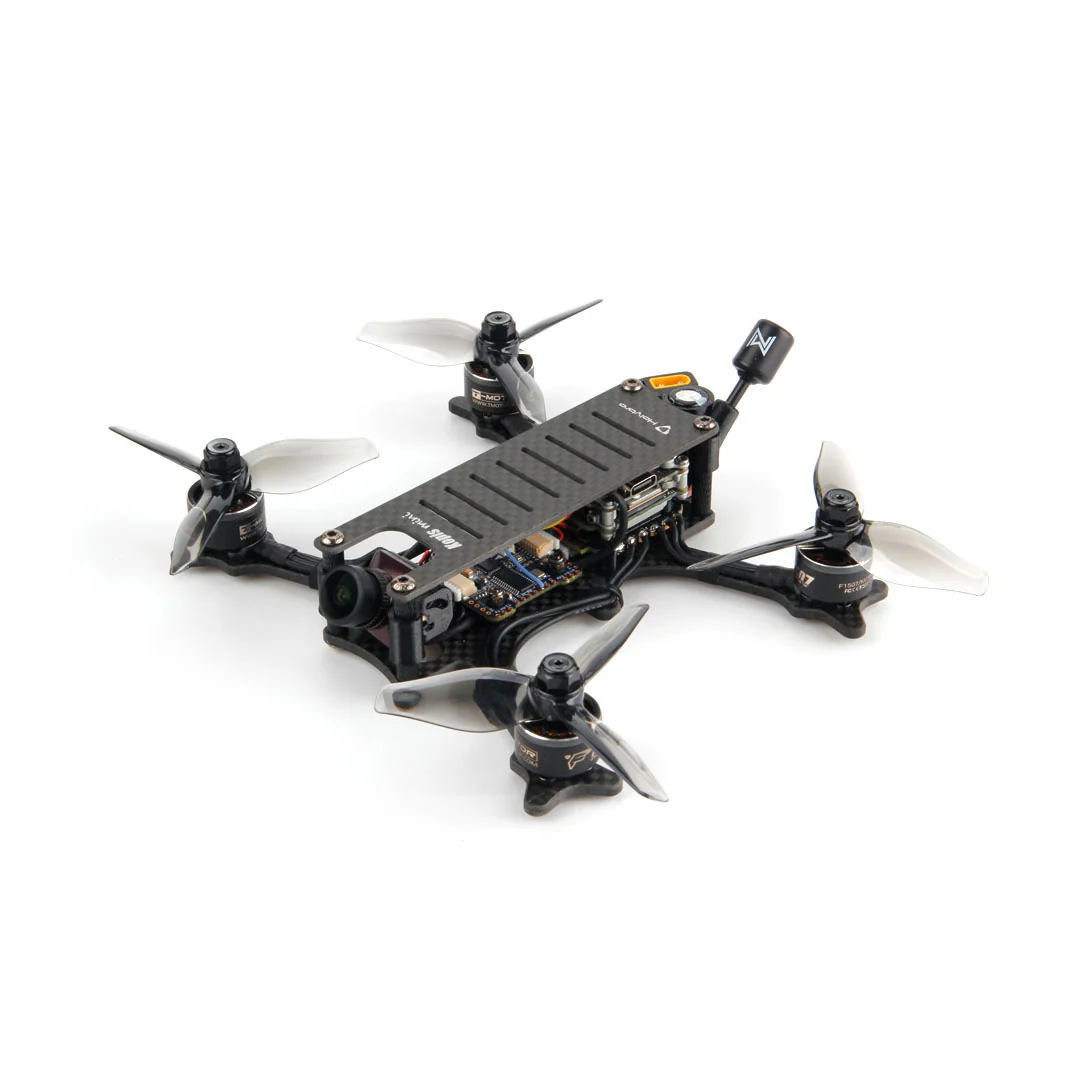

Kopis mini 3"(Analog version) #30067,#30068
Features
-
Frame:3mm 3k carbon fiber
-
Flight Controller:Kakute H7 V2
-
ESC:Tekko32 F4 4in1 45A mini ESC
-
VTx:Atlatl HV V2
-

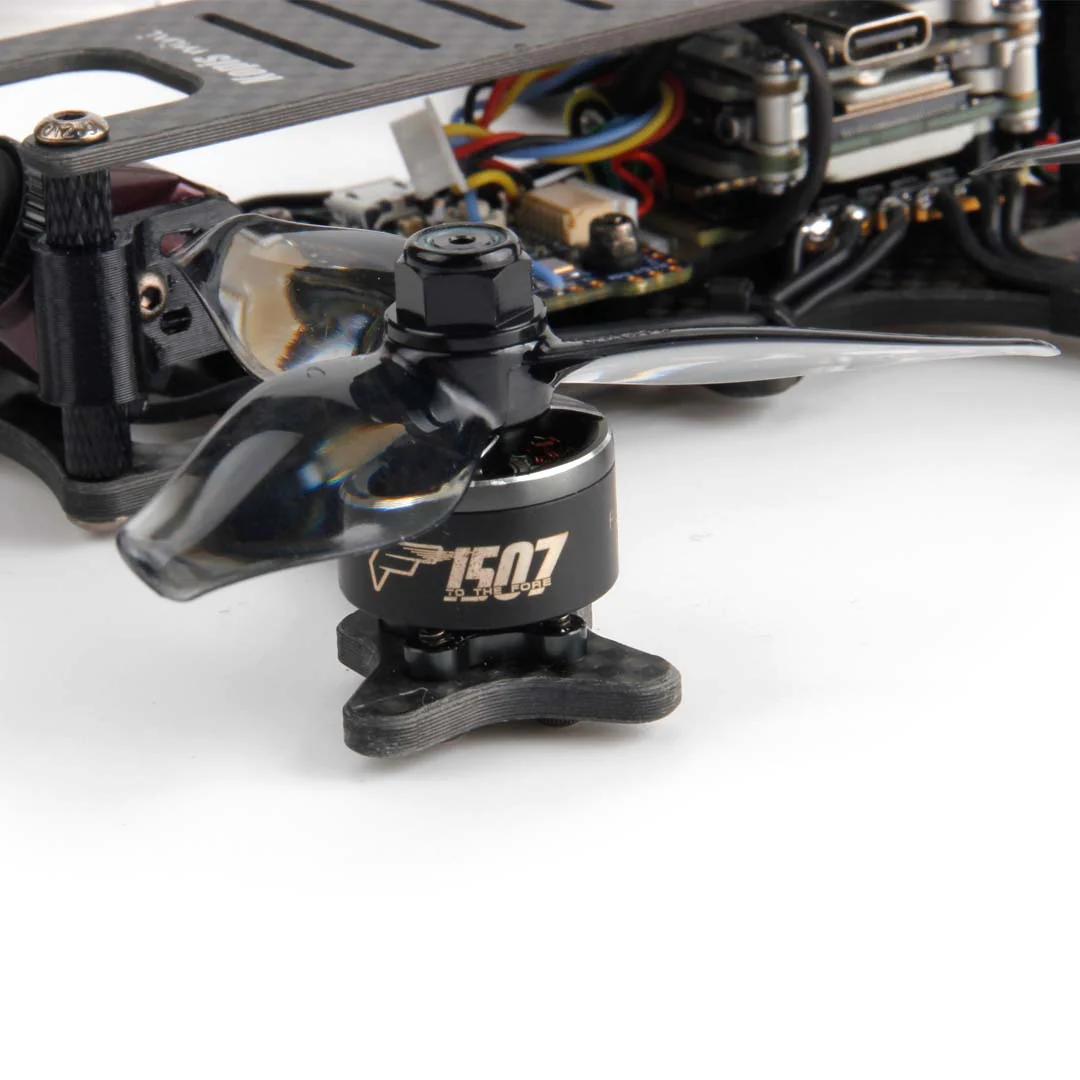

Motor:F1507 KV3800(Standard)
-
Propeller:T3140
-

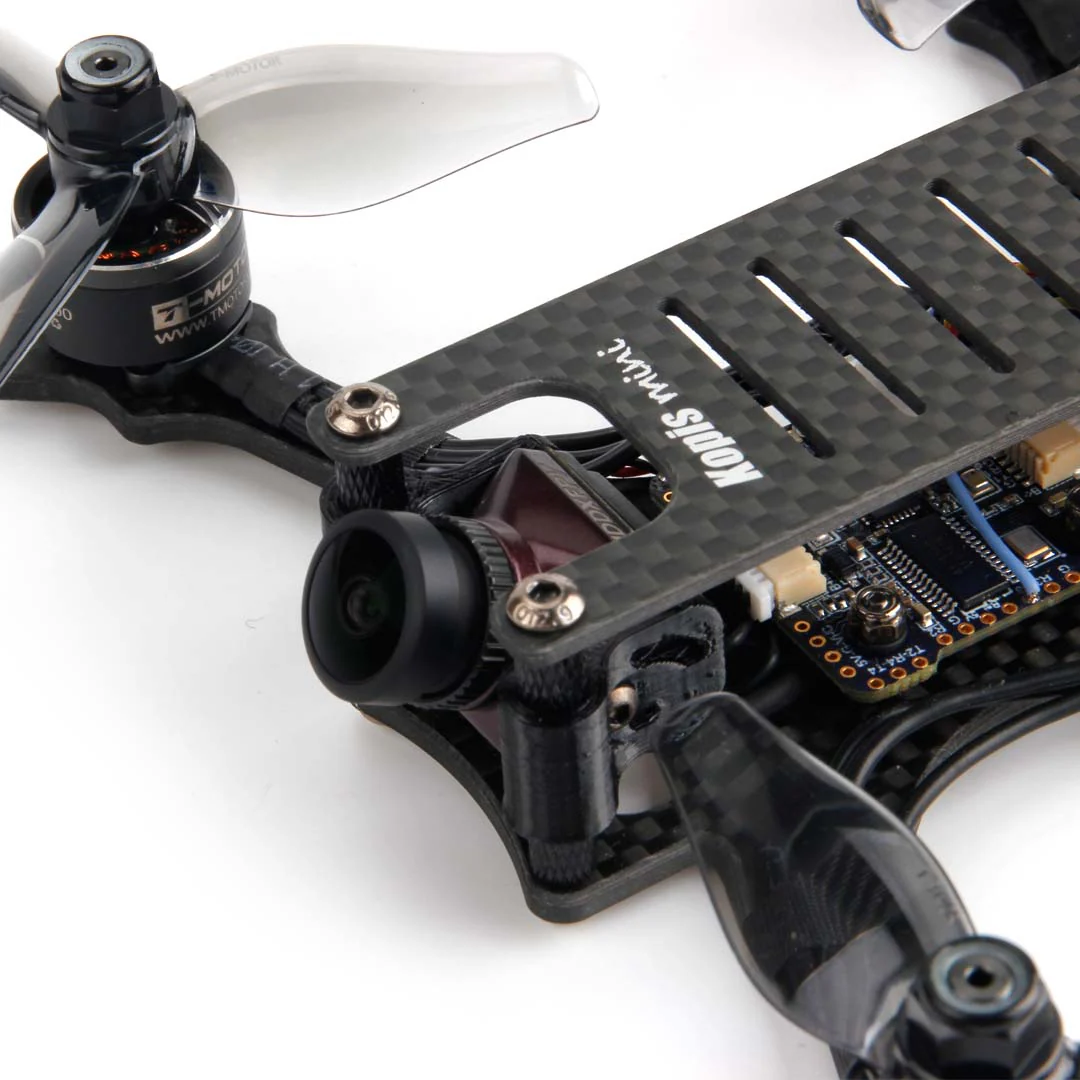

FPV camera:1200TVL Foxeer Micro Razer FPV Camera
-
Adjustable camera uptilt from 0 degrees to 90 degrees
-
Buzzer included.
-
Battery plug: XT30
-
Wheelbase: 148.6mm
-
Weight:173g
-
Recommend battery: 650mah~1300mah 4s
Includes:
-
1x Kopis mini FPV racing drone
-
4x T3140 Propeller
-
1x Protective Case Mount for GoPro Hero5
-
1x Battery strap(installed)
Please note: Starting from April 12th, 2022, all Kopis BNF will no longer include the Kopis Carry case.
Manual:
Holybro_Kopis-mini(Analog version)_Manual
Holybro_Kopis-mini(HD version)_Manual
3D Print:
Holybro_Kopis-mini_3D_Print.rar
Setting:
Kopis-Mini_3inch(KAKUTE H7 V1)DUMP
