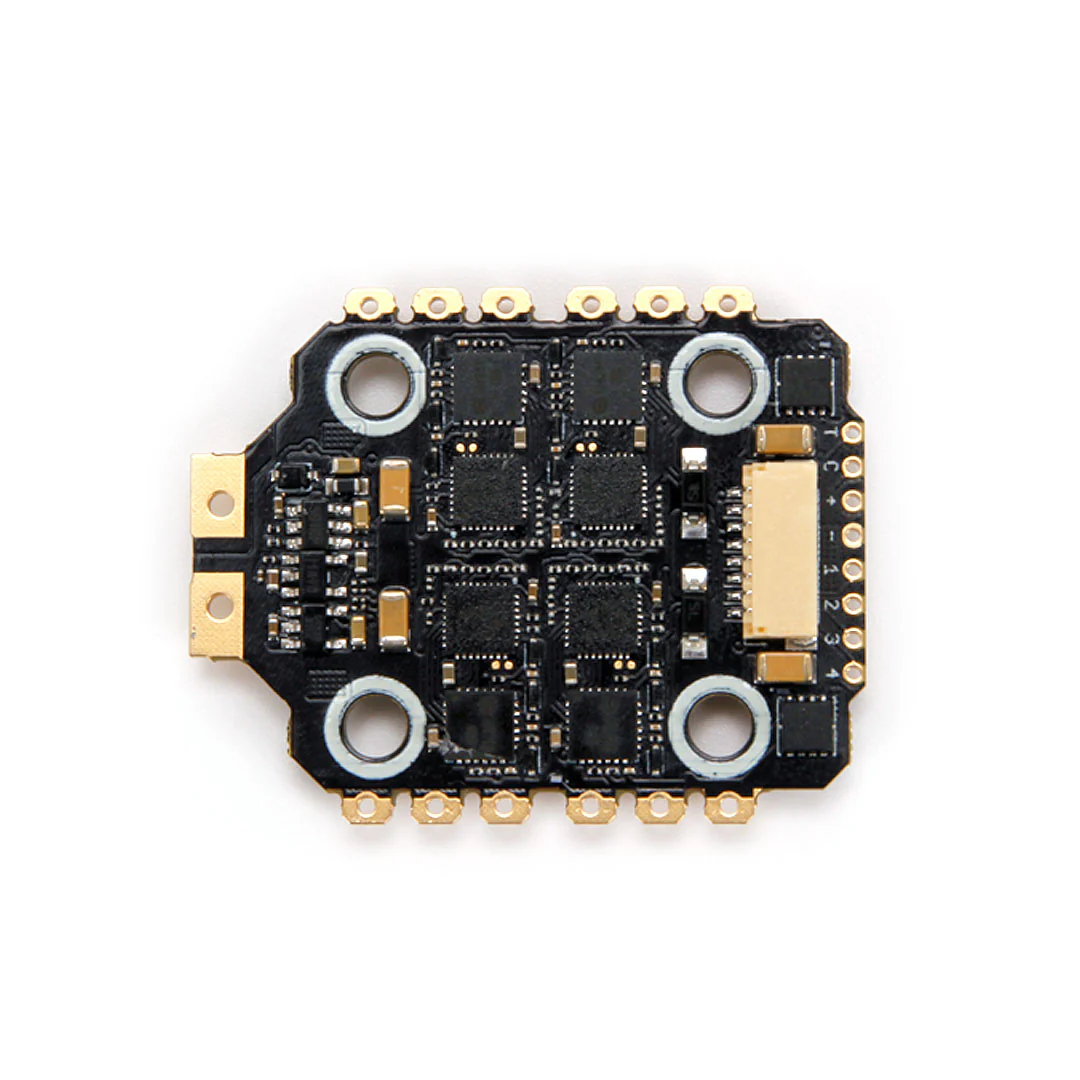

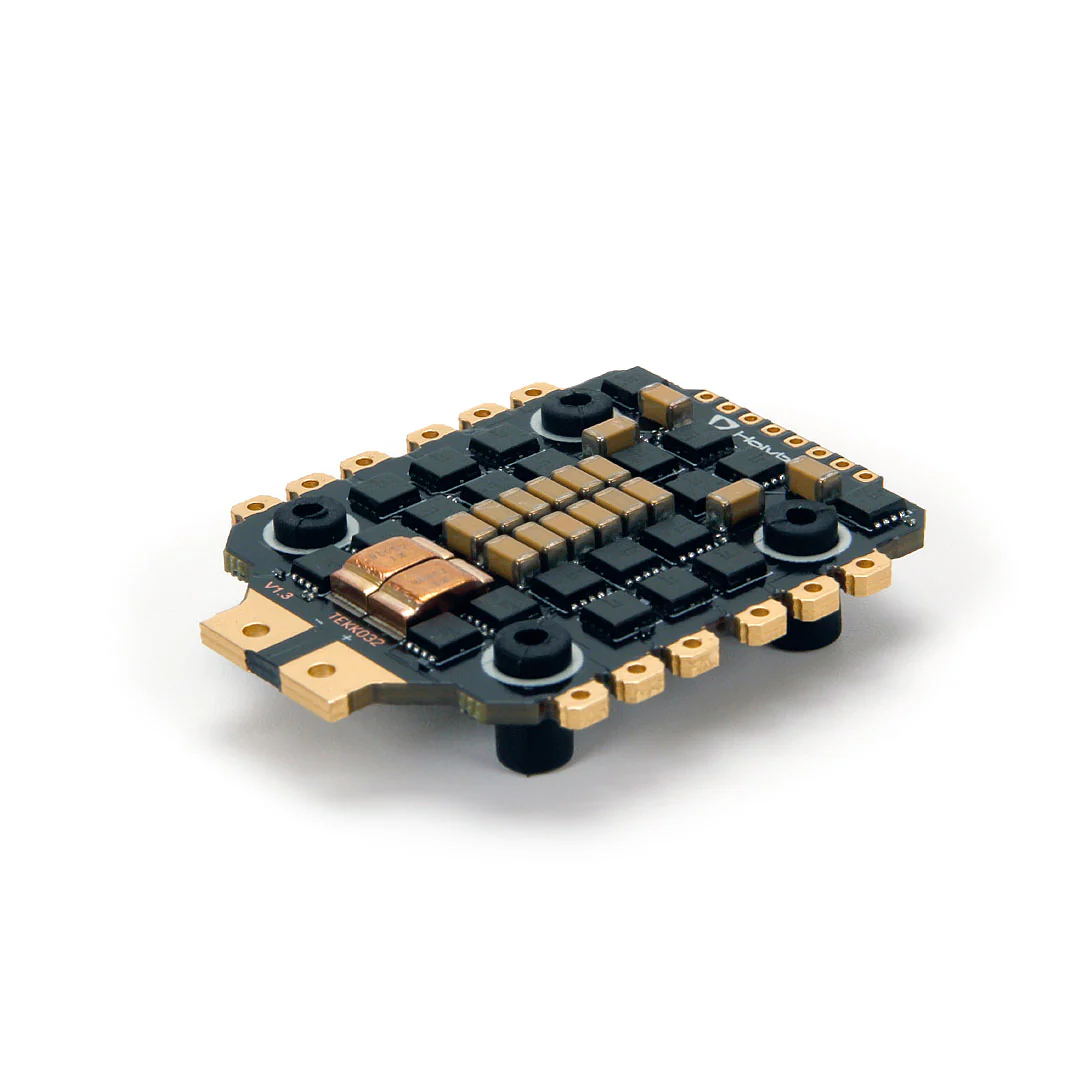

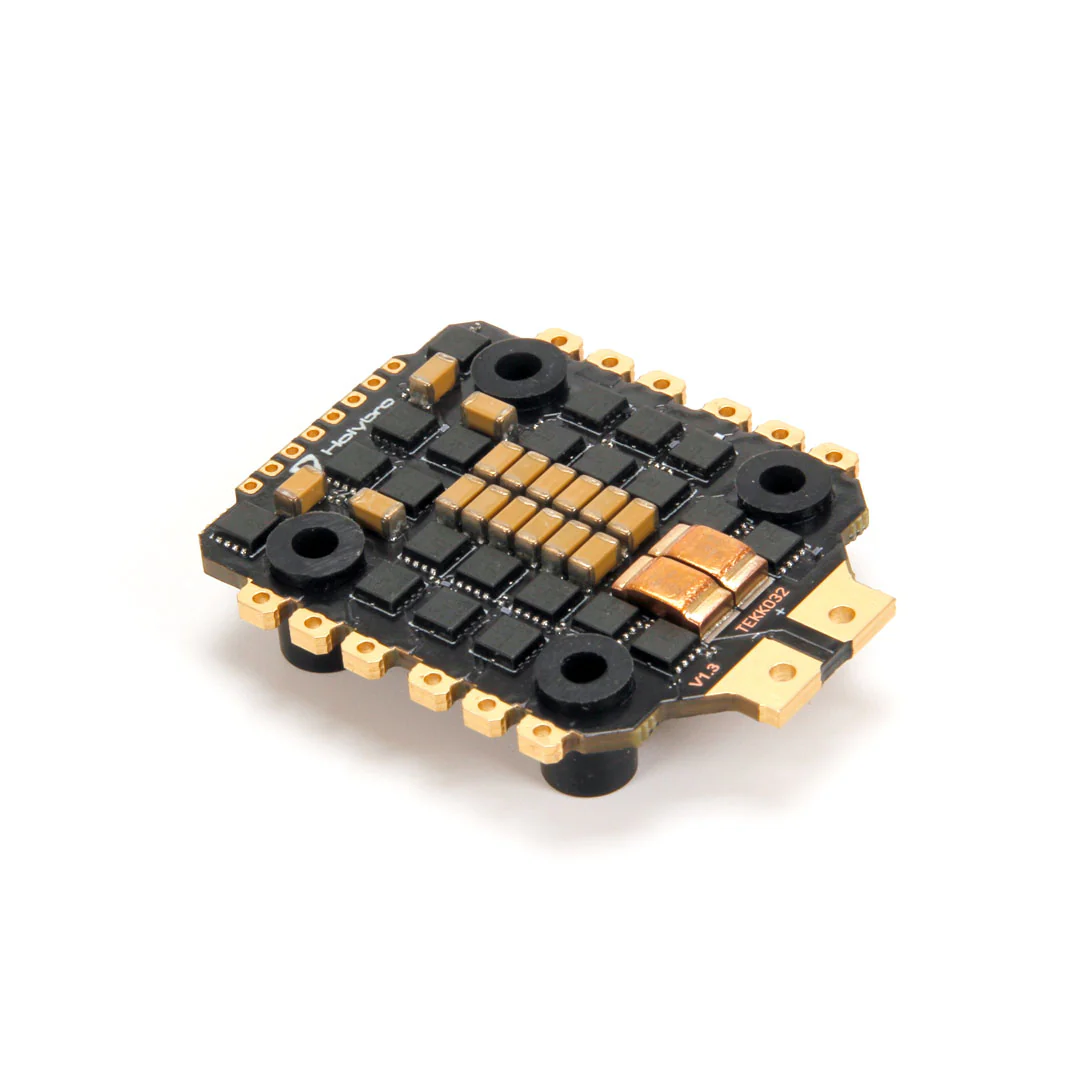

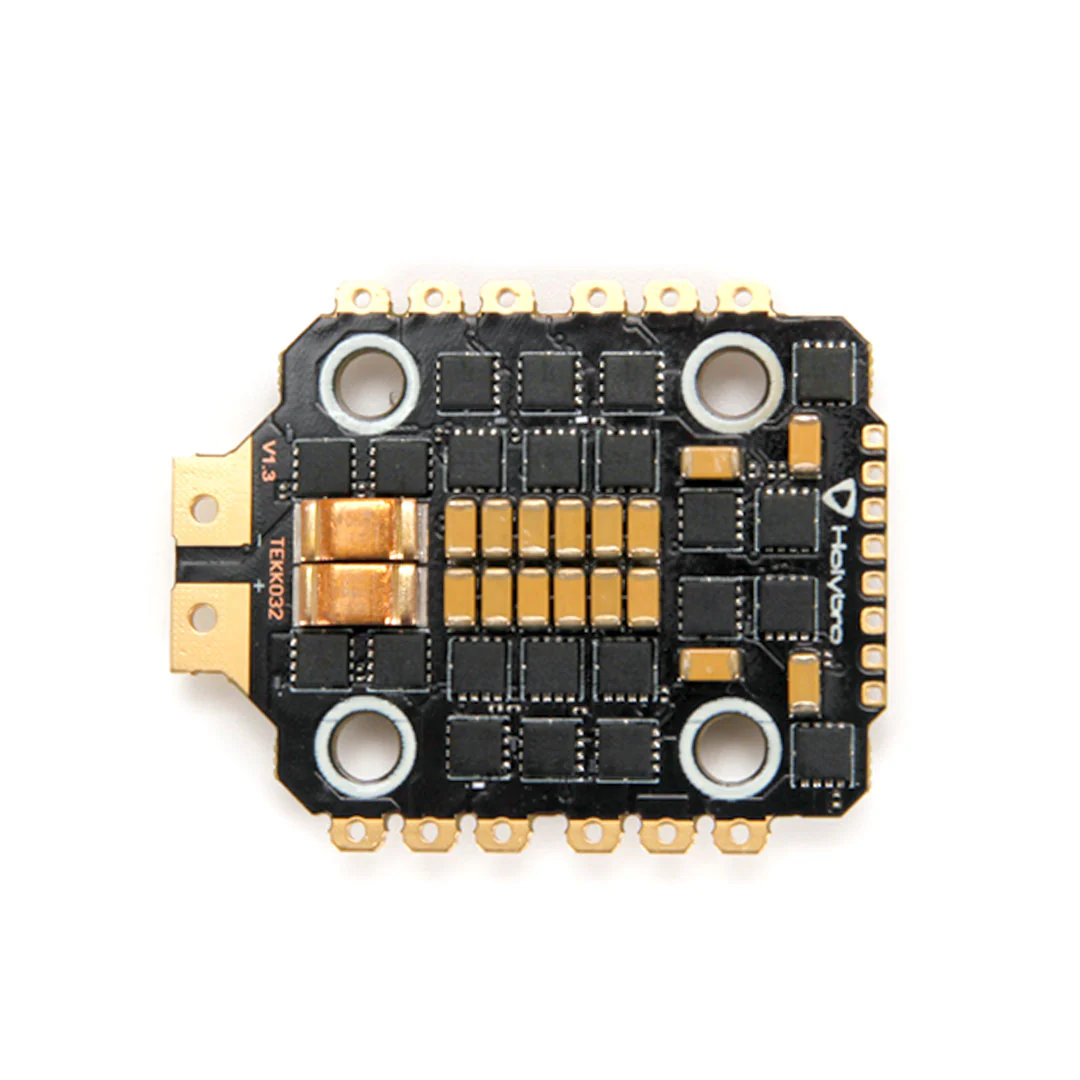

-70%Tekko32 F4 4in1 Mini 45A ESC (AM32)—
$64.99
$19.50The Story
SPEC:
- F4 MCU
- Maximum PWM output upto 96K (default 48K)
- Amperage meter scale ratio has been adjusted to 120.
- PWM input, TLM supported
- Voltage output (VBAT)
- NO output BEC
- Supports oneshot / Multishot / Dshot PWM
- Supports damped light
- Supports 3-6S lipo input
- cap needed for 6s (1000uf 35v for 6s usage.)
- Mounting holes: 20x20mm (M2& M3 Rubber Gourmet Included)
- Size:30 x 39 mm

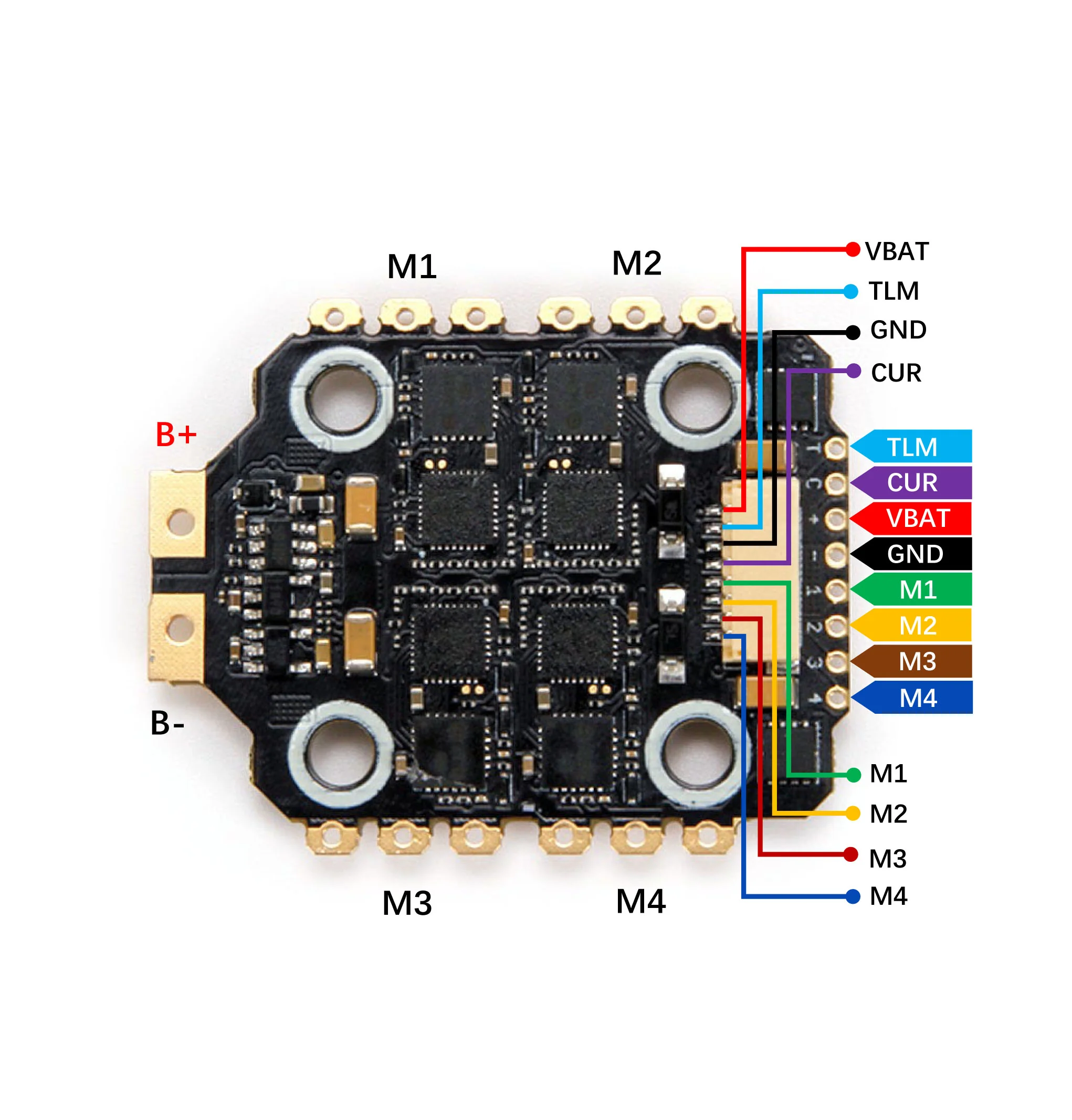

PIN MAP:

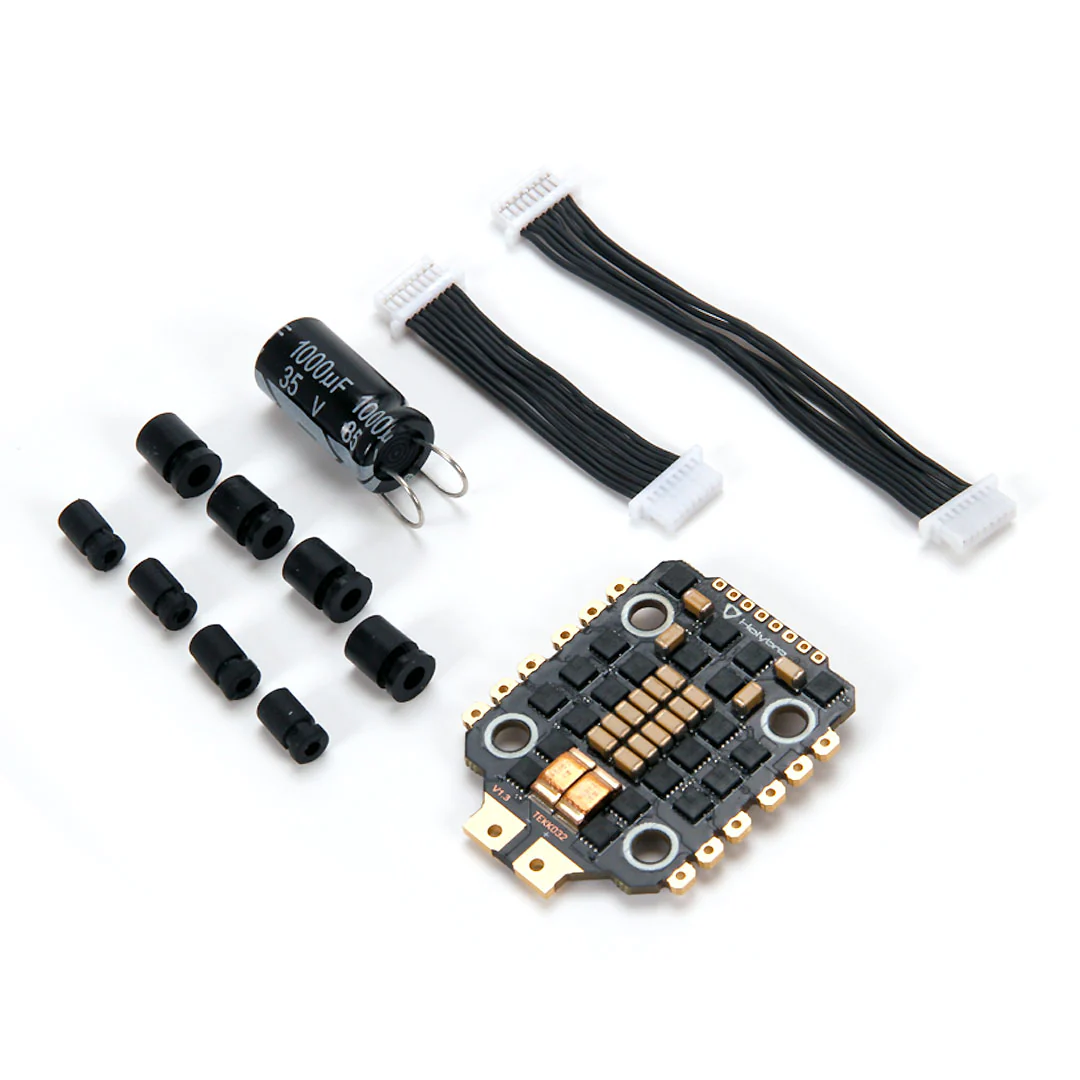

Package included:
Tekko32 F4 4in1 mini 45A ESC *1
M2 Anti-Vibration Silicone Grommet Insert *4
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacito: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
Downloads:
